Vacuum Transformer Oil Purification Machine Single Stage
PRODUCT OVERVIEW
The use of Single-stage Vacuum Transformer Oil Purifier (Model SINO-NSH VF) is necessary, which will help you maintain optimal oil cleanliness. Therefore, making the most use of your equipment to gain the highest and save your money.
General
SINO-NSH-VF series single-stage vacuum insulation oil purifier is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers.
Equipped with regenerators, it can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 65KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.
Benefits of Transformer Oil Purifier
1. Removes Dissolved Moisture Transformer Oil
2. Reduces combustible gases and oxygen
3. Improves oil dielectric values
4. Improves transformer power factor
5. Extends oil service life
6. Extends transformer service life and reliability
Oil Data After Purification
| Dielectric Strength (BDV) | kV | ≥60 |
| Water Content | ppm | ≤7 |
| Gas Content | % | ≤0.1 |
| Impurity Size | μm | ≤5 |
| Machine Specification | ||||||
| Parameter | Value | |||||
| VF-10 | VF-20 | VF-30 | VF-50 | VF-100 | ||
| Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | |
| Heating Power, kW | 9 | 15 | 24 | 36 | 60 | |
| Total Power, kW | 11 | 17 | 26 | 39 | 65 | |
| Power Supply | Fully customizable ** | |||||
| Inlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
| Outlet Diameter, mm | 25 | 25 | 25 | 32 | 40 | |
| Dimensions | length, mm | 1300 | 1400 | 1400 | 1400 | 1550 |
| (without trailer) | width, mm | 900 | 900 | 900 | 900 | 1550 |
| height, mm | 1300 | 1300 | 1300 | 1700 | 1850 | |
| Weight (without trailer), kg | 300 | 330 | 350 | 400 | 650 | |
** Operating voltage: 380 V (50 Hz), 380 V (60 Hz), 400 V (60 Hz), 415 V (50 Hz), 415 V (60 Hz), 220 V (60 Hz), 460 V (60 Hz), etc (customizable)
** The installation shall be designed to operate satisfactory at ambient temperatures ranging from -20 deg.C to 55 deg. C
** The heating power and total power are different with different capacity, please consult sales for more.
Available Styles

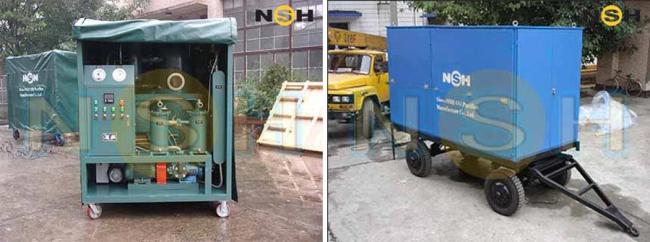

1. Fixing station type, mobile type with four wheels and mobile type with trailer.
2. Normal appearance type, shelf-covering type and explosion-proof type.
3. Available in different color.
