High Automation Vacuum Turbine Oil Purifier Turbine Oil Purification System
PRODUCT OVERVIEW
Specifications
1 Filtrating turbine oil.
2 Can separate large quantity of water.
3 The automatic backwash filtering system.
TF series is particularly suitable for purifying turbine lubricating oil. It also applies to treat hydraulic, coolant oil and other lubrication in which contain large amount of water and others such as vapor, impurities, sludge, dielectric and colloid.
TF series will result in the improvement of the properties of turbine oil or other lubrication and extend the maintenance period of turbines or other equipment which have lubrication system and keep them operate in good condition.
Features
1. Eliminate soluble and dissolved water effectively and demulsify rapidly.
TF series can not only separate large quantity of water but also remove trace of water from oil. Fitted with specially made demulsifying device (water separator), it is capable of making turbid emulsified oil very clear.
2. High effectively purify matters in oil such as impurities, sludge etc.
The automatic backwash filtering system can remove large number of particulate matters and fine filter system can remove tiny particles.
3. High automation, stability and operation online High automation, small size, light weight, safety and reliability. Installed with infrared liquid level automatic controller, the purifier machine will run automatically and easy handling.
Oil Data After Purification
| Water Content | ppm | ≤ 100 |
| Cleanliness | NAS 1638 | ≤ 6 |
| Impurity Size | μm | ≤ 5 |
| Emulsification Value | min | ≤ 15 |
|
Machine
Specification |
||||||||||
| Item | Unit | TF-20 | TF-30 | TF-50 | TF-75 | TF-100 | TF-150 | TF-200 | TF-300 | |
| Flow Rate | L/H | 1200 | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 | 1800 | |
| Vacuum Range | MPa | －0.06～～－0.096 | ||||||||
| Working Pressure | MPa | ≤ 0.3 | ||||||||
| Water Ratio | PPm | ≤ 100 | ||||||||
| Impurity size | µm | ≤ 5 | ||||||||
| Clearness | NAS | ≤ 6 | ||||||||
| Temperature Range | ℃ | 40-80 | ||||||||
| Demulsifying Value | Μin | ＜ 15 | ||||||||
| Power Supply | V | Fully customizable | ||||||||
| Working Noise | dB | ≤ 70 | ≤ 75 | |||||||
| Heating Power | Kw | 15 | 24 | 32 | 40 | 48 | 72 | 96 | 120 | |
| Total Power | Kw | 18 | 27 | 32 | 40 | 53 | 78 | 103 | 129 | |
| Inlet(Outlet)Diameter | Mm | 25 | 25 | 32 | 35 | 40 | 50 | 65 | 65 | |
| Net Weight | Kg | 300 | 300 | 450 | 550 | 650 | 750 | 900 | 1500 | |
| Size | length | Mm | 1300 | 1300 | 1450 | 1550 | 1650 | 1850 | 2000 | 2400 |
| width | Mm | 900 | 900 | 1000 | 1100 | 1150 | 1250 | 1350 | 1700 | |
| height | Mm | 1460 | 1460 | 1510 | 1510 | 1560 | 1610 | 1660 | 1760 | |

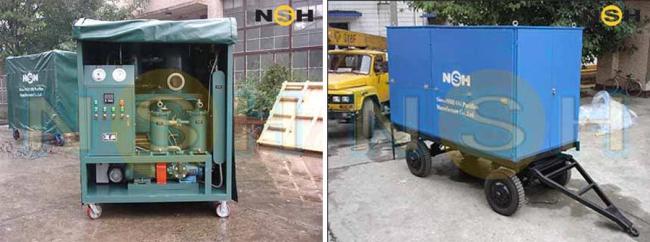

Presentations Options
● Base frame with caster wheels
● Metallic enclosure cover on caster wheels
● Metallic enclosure cover on single-axle trailer
● Base frame on double-axle trailer
● Metallic enclosure cover on double-axle trailer
● Metallic enclosure cover and operation room on double-axle trailer.
