Three Stage Short Path Molecular Distillation Equipment Essential Oil Distiller

1. Customization 1-stage, 2-stages, 3-stages, Stainless steel type, Glass type.

2. CE & UL configurations are available.

3. On-site installation, training service.

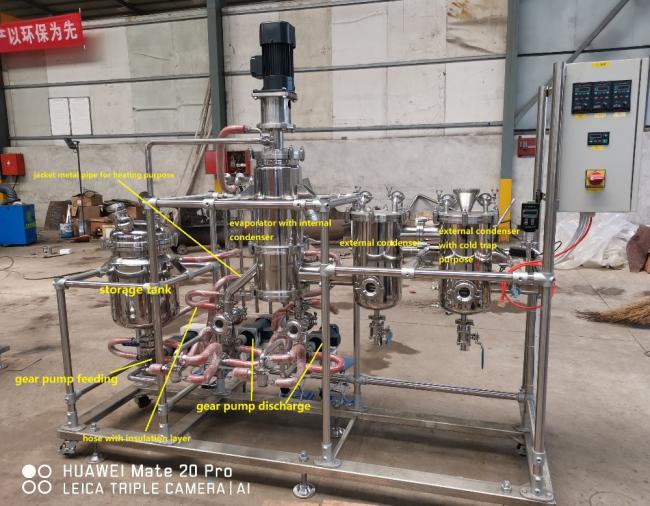

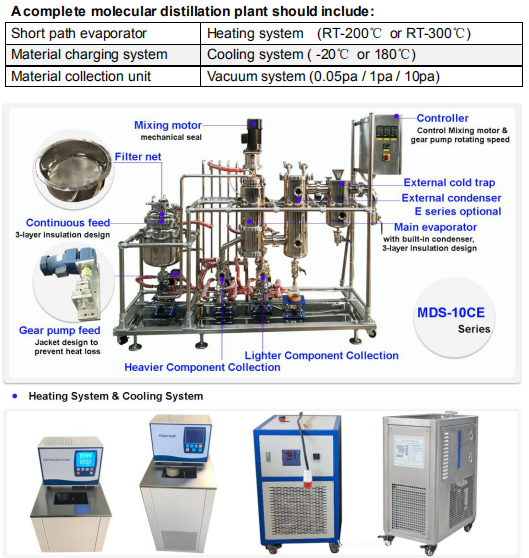

A complete short path distillation apparatus set should include:
1. Short path evaporator.                                 2. Heating system.
3. Material charging system.                           4. Cooling system.
5. Vacuum system.                                           6. Material collection unit.

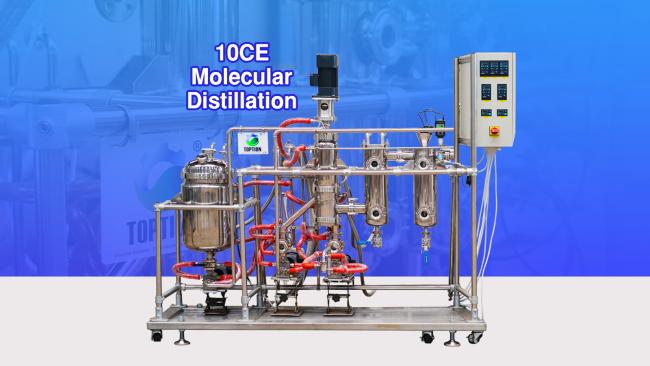

Parameters for MDS-10CE:

1.Processing Measure(Depending on the material): 3~5L/h
2.Evaporator surface:0.1㎡
3.Inner condenser surface:0.15㎡
4.Scraping film system: scraper type scraping film rotor
5.Feeding: jacketed 10L funnel with stainless steel material

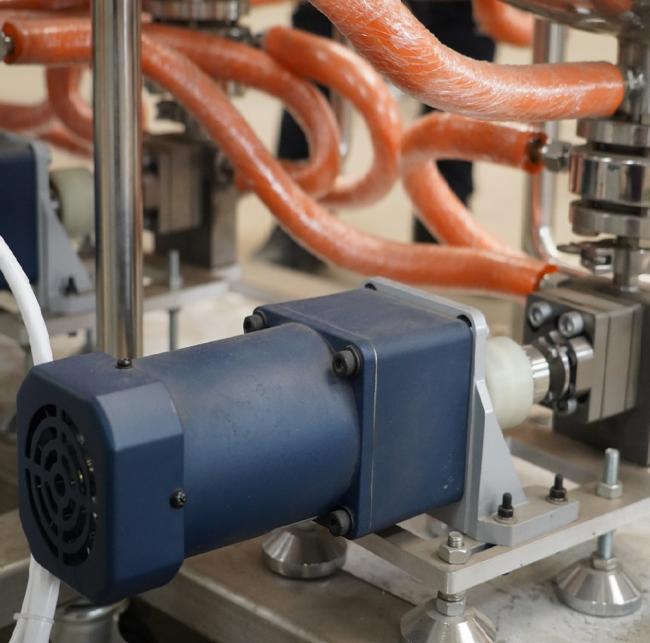

6.Feeding type: High precision gear pump with flow rate 3~15L/h
7.Receiving: High precision gear pump with flow rate 3~15L/h
8. Maximum distillation temperature: 300℃
9.Observation window: 2pcs at light & weight phase place + 2pcs at condenser place + 2pcs cold trap place

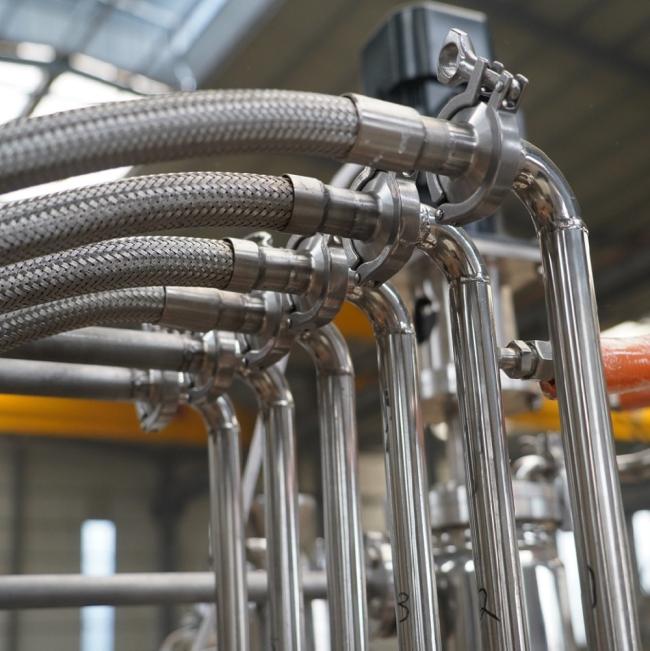

10. All pipe insulation: yes
11. Condenser quantity: Condenser for evaporator quantity: 1 pc + external condenser 1 pc + cold trap for dry ice 1 pc
12. Equipment height: 2200mm
13. Motor & reduction gears: Electrodeless reduction gears, 0.12KW.
14. Sealing type: mechanical seal.

Application industry

1.Thermal separation of heat sensitive chemical compounds.
2.The purification of organic synthetic material.
3.The separation of effective components from the biological extracting solution.
4.The recycling of industrial waste.
5.Remove toxic substances in the food industry.
6.The organic compounds' decoloring, and eliminate the unusual smell.
7.High precision to remove residual solvent in chemical compound.

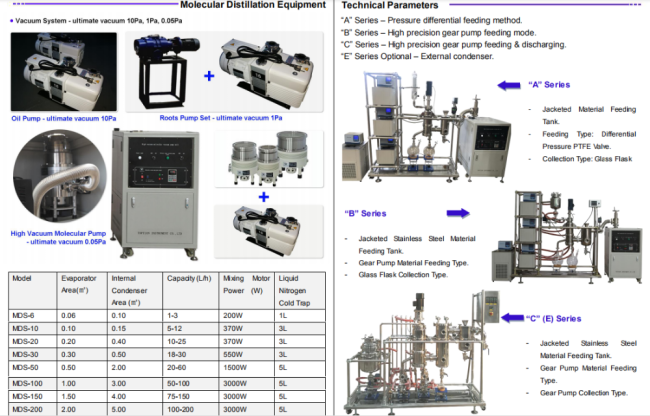

Different professional design solutions(A,B model) for different needs

1.A model --- Standard molecular distillation advantage
1).Economical and practical.
2).No solidification,the feeding tank and all tube parts are designed as a double layer insulation.
3).Disadvantages: For redistillation separation after multiple cycles, you must stop all the work of the system, take the sample out of the collection bottle and pour it into the feed tank.

2.B model ---Top configuration molecular distillation advantage

1).Precision gear pump can precisely control the feeding amount, and it can be set in the system, so it is not necessary for people to keep an eye on the equipment.
2).Applicable in research and batch production.

3.C model------ High precision gear pump feeding & discharging method.

"E" type---External condenser
