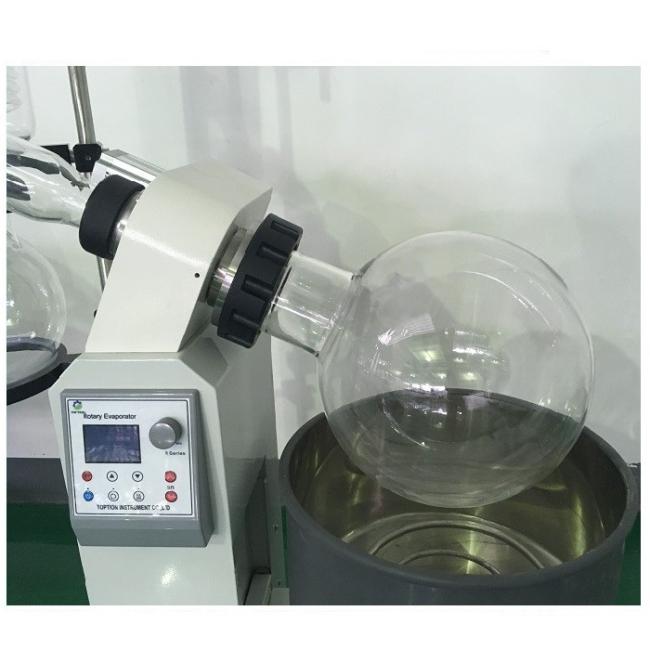

Pharmaceutical Rotary Evaporator 10L Vacuum Distillation Concentrator

Model:

RE-5210A  rotary evaporator 10l vacuum distillation

Rotation flask:

10L

Receiving flask

3L

Lifting type

Automatic lifting

Condenser

vertical type, double serpentine tube

Rotation speed

5-110 rpm

Bath power:

3KW

Staic temp control range & Wave

RT~99℃ & 2℃

Standard power:

220V 50/60Hz single phase

Motor power

90W

Dimension

1000 x 600 x 1800m

Dispaly

Rotation speed and temperature are digital display

Optional

oil hath; 110V 60Hz single phase working voltage

Advantage

1. Easier installation than old models

2. All seals materials are PTFE, FFKM with special treatment, with better seal effect, More corrosion resistant and durable

3. Controlling system in one panel, more accurate, and simpler the operation steps.

4. inside automatic check valve, easy to keep the vacuum condition and work continuously.

5. Stainless steel sheet for bath is one time stamping, vertical lift system automatically.

6. LCD display for temperature and rotation speed

7. Air guide bottle is with unique PTFE combination valve (original rotary evaporator is with glass valve), can control airflow, liquid flow anyway. Feeding liquid, discharging liquid at any time when rotary evaporator is working.

With wheels for easy movement.
