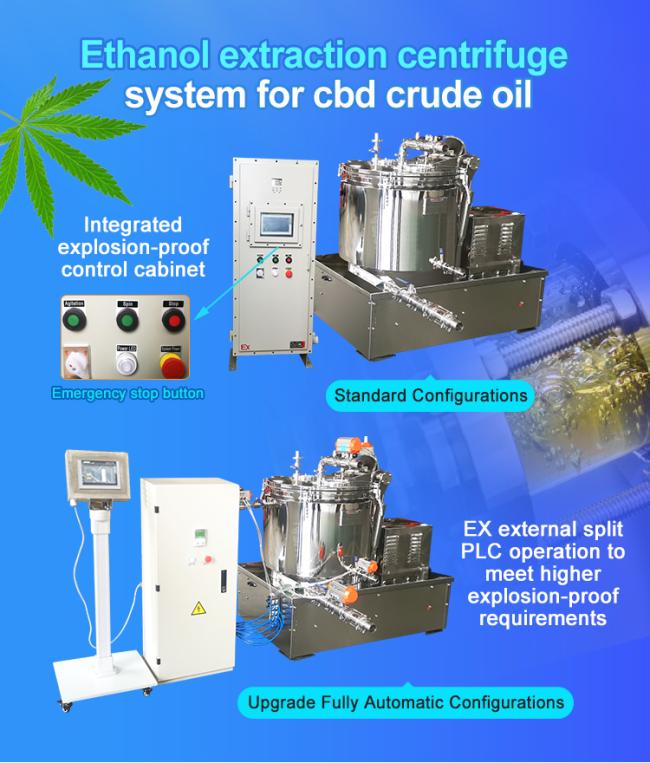

Hemp Oil Extraction Machine Ethanol Extraction Centrifuge 15lbs/Batch - 220 Lbs/Batch
Price:
Negotiation
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TOPTION
Product Description
Product description
TOP-C series centrifuges are specially used for the separation and extraction of ethanol from plant raw materials. Put the dried plant raw materials in bag and wash in two directions by immersing in ethanol. After washing, the plant material is dried with medium strength even high-speed spin drying, so as to remove ethanol as much as possible from the plant material,the ethanol washing solution is collected in a container for further processing.
|
Main parameters
|
TOP-C15
|
TOP-C30
|
TOP-C50
|
TOP-C110
|
TOP-C160
|
TOP-C220
|
|
Vessel diameter(inch)
|
12
|
18
|
24
|
32
|
40
|
47
|
|
Vessel volume(L)
|
18
|
48
|
110
|
251
|
393
|
565
|
|
Biomass/batch(lbs)
|
15
|
30
|
50
|
110
|
160
|
220
|
|
Alcohol solvent (L)
|
57
|
110
|
201
|
377
|
546
|
745
|
|
Standard Max speed(r/min)
|
3000
|
2000
|
1500
|
1000
|
900
|
700
|
|
Optional 1: speed
|
4000
|
3000
|
2000
|
1500
|
1200
|
1000
|
|
Main motor power (kw)
|
2.2/3
|
3/4
|
5.5/7.5
|
7.5/11
|
11.0/15
|
18.5/22
|
|
Vessel load-bearing (lbs)
|
25
|
50
|
100
|
320
|
450
|
540
|
|
Dimension (L*W*H)mm
|
850*610*900
|
980*680*1000
|
1350*990*1300
|
1700*1200*1500
|
1970*1400*1500
|
2200*1700*1500
|
|
Machine weight(kg)
|
≈300
|
≈500
|
≈800
|
≈1400
|
≈1900
|
≈2500
|

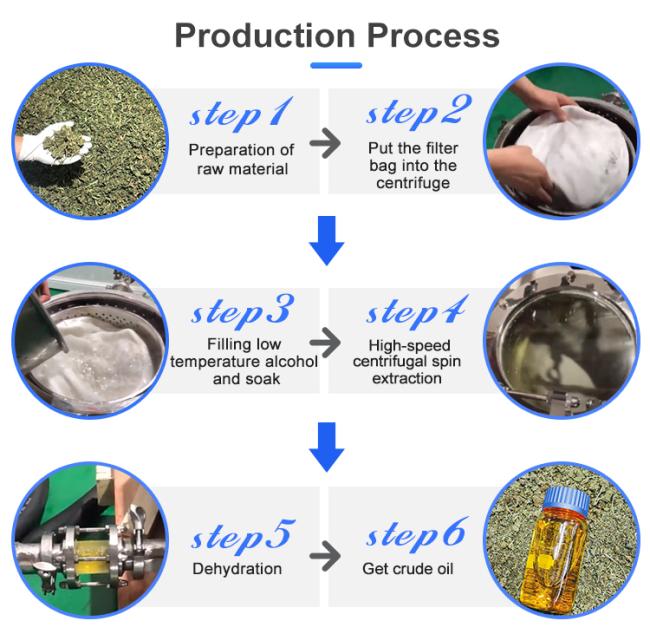

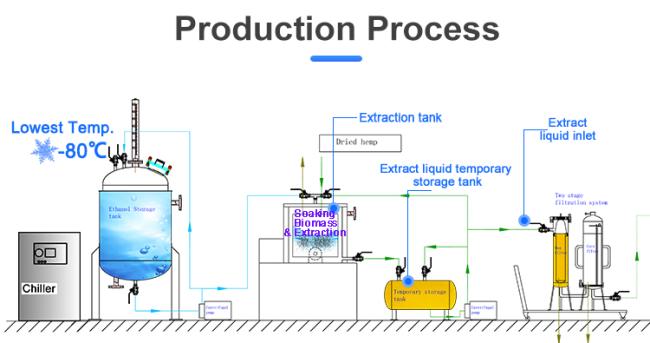

Production process
Application
Our advantages

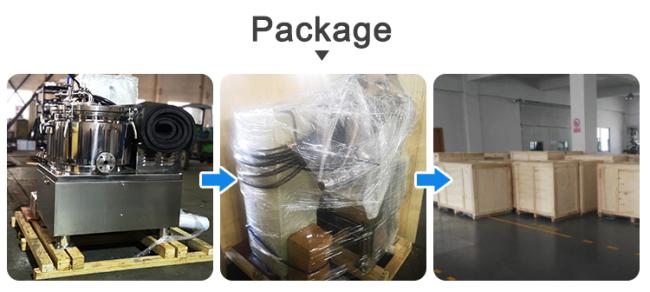

Package
Certificate
Exhibition

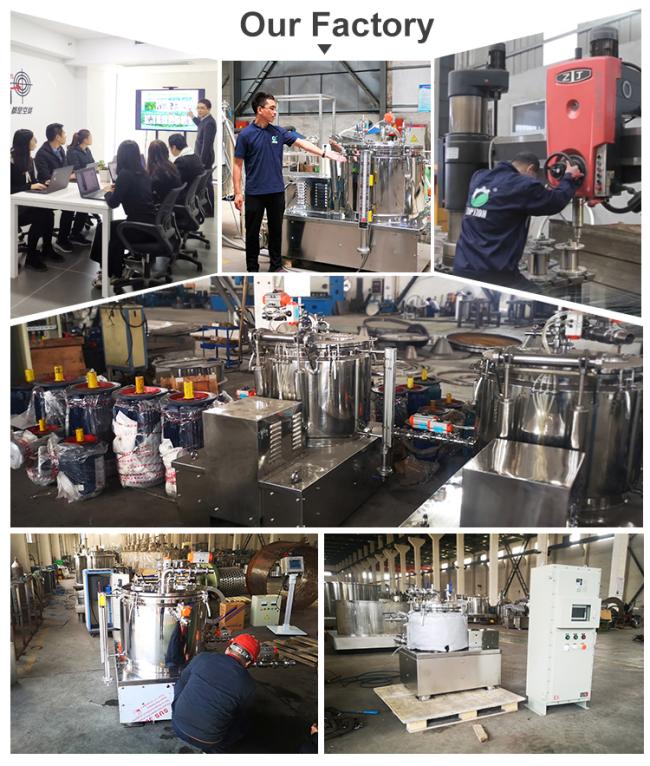

Our Factory
