TOPTION Short Path Molecular Distillation High Efficiency Evaporator

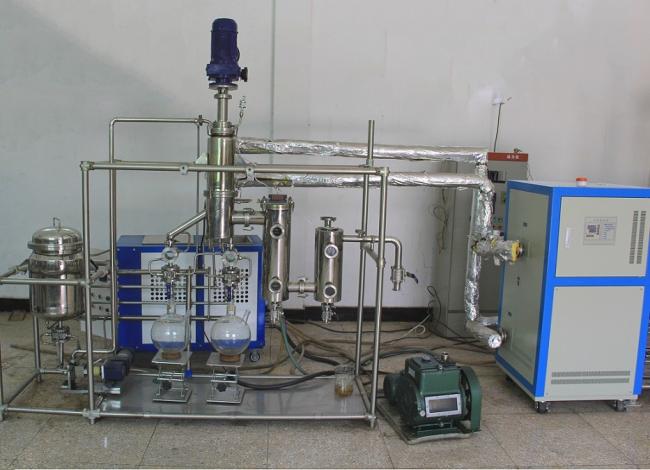

TOPTION MDS-6A High Efficiency Evaporator Short Path Molecular Distillation
Introduction of Molecular Distillation/Short Path Distillation
Molecular Distillation/Short Path Distillation is a comparatively new separation technology. It can separate liquid-liquid mixture under temperature that is far lower than boiling point by the difference of mean free path of molecules under high vacuum condition. Such separation is difficult or unable to achieve on normal distillation equipments. Molecular Distillation is especially suitable to separate substances of high boiling point, heat sensitive and easy oxidized.
|
Parameters of High Quality TOPTION 2L Short Path Distillation Kit
|
|||||
|
Model
|
Evaporation area
|
Feeding capacity
|
Feeding type
|
Material collection type
|
Equipment height
|
|
(m2)
|
(L/h)
|
(mm)
|
|||
|
MDS-6
|
0.06
|
1~3
|
Pressure differential valve
|
Glass collection flask
|
2000
|
|
MDS-10A
|
0.1
|
5~12
|
High-precision gear pump
|
Glass collection flask
|
2350
|
|
MDS-10B
|
0.1
|
5~12
|
High-precision gear pump
|
Continuous discharge gear pump
|
2100
|
|
MDS-20A
|
0.2
|
10~25
|
High-precision gear pump
|
Stainless steel tank
|
2650
|
|
MDS-20B
|
0.2
|
10~25
|
High-precision gear pump
|
Continuous discharge gear pump
|
2650
|
|
MDS-50A
|
0.5
|
20~60
|
High-precision gear pump
|
Stainless steel tank
|
3300
|
|
MDS-50B
|
0.5
|
20~60
|
High-precision gear pump
|
Continuous discharge gear pump
|
3100
|
|
MDS-100A
|
1
|
50~120
|
High-precision gear pump
|
Stainless steel tank
|
4450
|
|
MDS-100B
|
1
|
50~120
|
High-precision gear pump
|
Continuous discharge gear pump
|
4250
|
|
MDS-150
|
1.5
|
60~180
|
High-precision gear pump
|
Continuous discharge gear pump
|
4500
|
|
MDS-200
|
2
|
100~200
|
High-precision gear pump
|
Continuous discharge gear pump
|
5000
|
|
MDS-300
|
3
|
100~300
|
High-precision gear pump
|
Continuous discharge gear pump
|
6200
|
|
MDS-500
|
5
|
200~500
|
High-precision gear pump
|
Continuous discharge gear pump
|
7500
|
How High Quality TOPTION 2L Short Path Distillation Kit achieve separation purpose?
1. Based on the mixture's each materials' different molecular motion mean free path. According to the principle of molecular motion mean free path, under ideal condition making the liquid mixture flowing through the heating plate to heat, light and heavy molecules will escape from liquid level, and enter into the gas phase.
2. Due to the light and heavy molecular free path is different, so after different material molecules escape from the liquid surface, their moving distance is different, if properly set up a cold condenser plate, then light molecules reach condensation plate be condensing exhaust, and heavy molecules can not reach condensation plate, the exhaust along with the mixture liquid.
High Quality TOPTION 2L Short Path Distillation Kit should include:
1. Short path evaporator.
2. Heating system.
3. Material charging system.
4. Cooling system.
5. Vacuum system.
6. Material collection unit, etc.
Why so many research love to choose High Quality TOPTION 2L Short Path Distillation Kit?
1. Material be heated in short time
Rotating scraper push the material on the heating surface and the material liquid spiraling continuously moves down and escape from the heating surface, the material which is separated escape from the heating surface was quickly collected by condenser cooling, this method has to minimize the contact time of material and heating surface.
Successfully eliminates the thermal decomposition, polymerization, or metamorphic.
2. Low evaporation temperature
Compared with conventional distillation, short path distillation apparatus through material liquid distributor and rotating scraper to make material be uniform distribution on the heating surface, reducing the pressure difference which is generated on material static liquid surface.
Heating surface and condensation surface distance is short, light molecules escape from the heating surface then quickly condensation, reducing the pressure drop during gas transfer, which is more likely to achieve low evaporation pressure.
As long as the light molecular movement free path is greater than the distance from the evaporation surface to the condensation surface, then material can be separated, and material don't need be heated to boiling point, thus the distillation temperature was much lower than the conventional distillation method.
3. Self-cleaning heating surface
Rotating scraper sliding in the heating surface, the liquid film constant agitation and updates, to prevent the material in the heating surface bubble, scraping wall scaling, etc.
It can successfully be applied to the material consentration and separation which is easily bubble, in the heating surface fouling in conventional distillation.
4. High efficiency evaporation, strong adaptability, easy operation
Rotating scraper makes the material be uniform distributed on heating surface as a film, the liquid film always maintain high turbulence state, which accelerates the heat transfer to reduce the heat loss.
Simple structure, convenient cleaning, freedom of start-up and shut-down, suitable for many varieties, discontinuous small chemical production.
Application of Molecular Distillation/Short Path Distillation
Main application field: Separation process in trades like Food, Pharmaceutical, Fine chemical, Electronic materials, Polymers (Polyols, fatty acids, polyphenols-compounds, polyurethane, epoxy resin, lactate, glycerol monostearate, flavors and fragrances, fuel oil and paraffin oil), essential oil extraction, etc.
Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.
TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of products have passed CE certification,the quality can be assured.
