Vacuum Distillation Unit Short Path Molecular Distillation Equipment
MDS-10C Short Path Molecular Distillation Agitated Thin Film Evaporator
A complete short path distillation apparatus set should include:

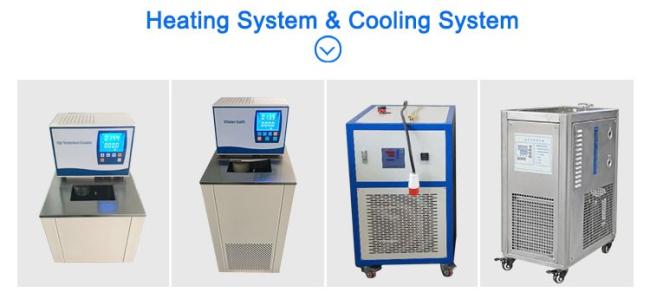

1. Short path evaporator. 2. Heating system.
3. Material charging system. 4. Cooling system.

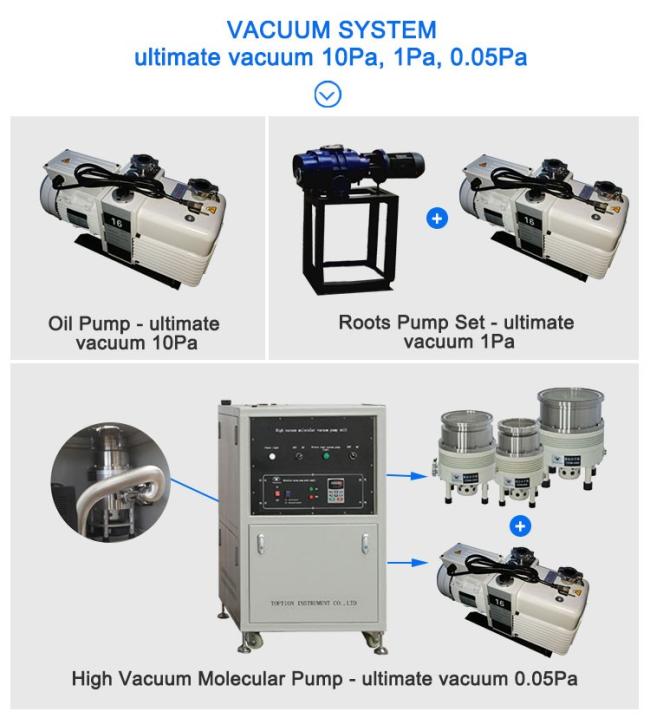

5. Vacuum system. 6. Material collection unit, etc.
Technical parameters of 0.1 square meter molecular short path distillation:
|
Model |
MDS-10C molecular distillation units |
|
Material tank |
Upgrade15L jacketed stainless steel tank |
|

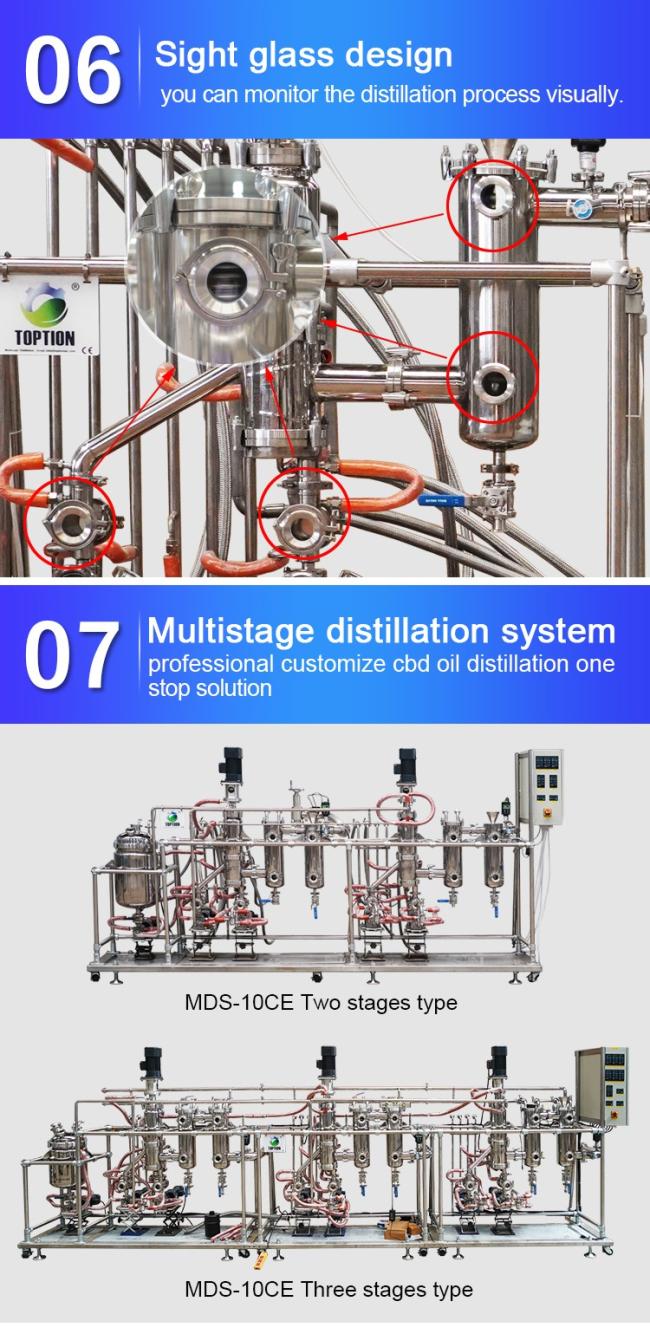

2 sight glass at top, with insulated ball valve. |
|
|
Material charging |
Gear pump |
|
Flow 3L~15L/H |
|
|
200W motor, electronic speed regulation. |
|
|

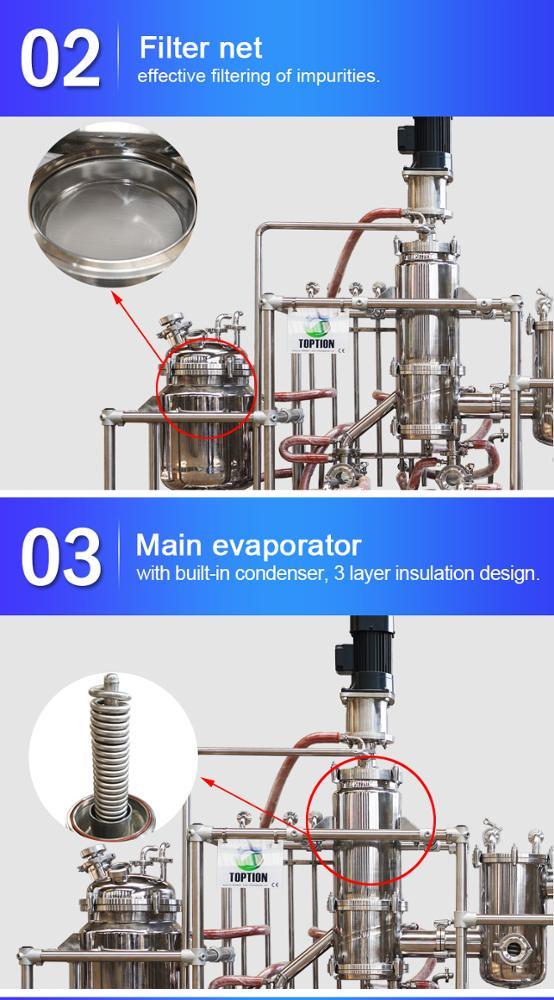

Evaporator |
Evaporation area 0.1m2 |
|
Film forming way: scraper (roller is optional) |
|
|
Material:316L |
|
|
Mechanical seal (Magnetic seal is optional) |
|
|
Film forming motor:370W, mechanical constantly variable transmission,200~1000rpm/min |
|
|
Cold trap |
1. 0.4m2 chiller cooling cold trap |
|
2. 3L liquid nitrogen cold trap |
|
|
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose) |
|
|
Choose 1 in above 3 types |
|
|
Heavier component discharge |
Gear pump |
|
Flow 3L~15L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Lighter component discharge |
Gear pump |
|
Flow 3L~15L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Material pipeline |
Jacketed insulation |
|
Shelf & assemble |
304 stainless steel pipe |
Your benefits of 0.1 square meter short path molecular distillation equipment:
1. Economical and practical.
2. For viscous material, the feeding tank is designed as a double layer insulation tank, all tube parts are double-layer insulation type, ensure there will be no solidification which will affect material's separation.
3. Double-layer insulation feeding tank, continuous feeding of magnetic gear pump, light phase and heavy phase sample magnetic circulation gear pump continuous collection scheme.
