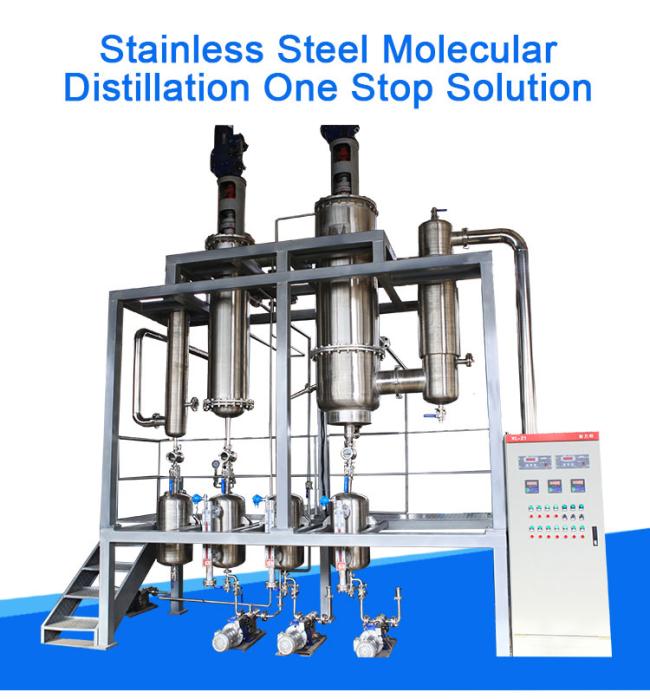

Agitated Thin Film Evaporator Wiped Film Molecular Distillation Apparatus
Distilation essential oil machine plant purification destilator oil distillation essential !
Fast Delivery Plant Oil WFE Wiped Film Distillation
1. Thin film molecular distiller with internal condenser. 2. Heating system.
3. Material charging system. 4. Cooling system for external condenser.
5. Vacuum system. 6. Material collection unit, etc.
Technical parameters for Fast Delivery plant Oil WFE Wiped Film Distillation:
|
Model |
MDS-100C molecular distillation units |
|
Material tank |
50L jacket type |
|
sight glass include, insulation ball valve |
|
|
Material charging for MDS-100C |
Gear pump |
|
Flow 30L~100L/H |
|
|
750W motor, electronic speed regulation. |
|
|
Evaporator with internal condenser |
Evaporation area 1m2 |
|
Film forming way: scraper (roller is optional) |
|
|

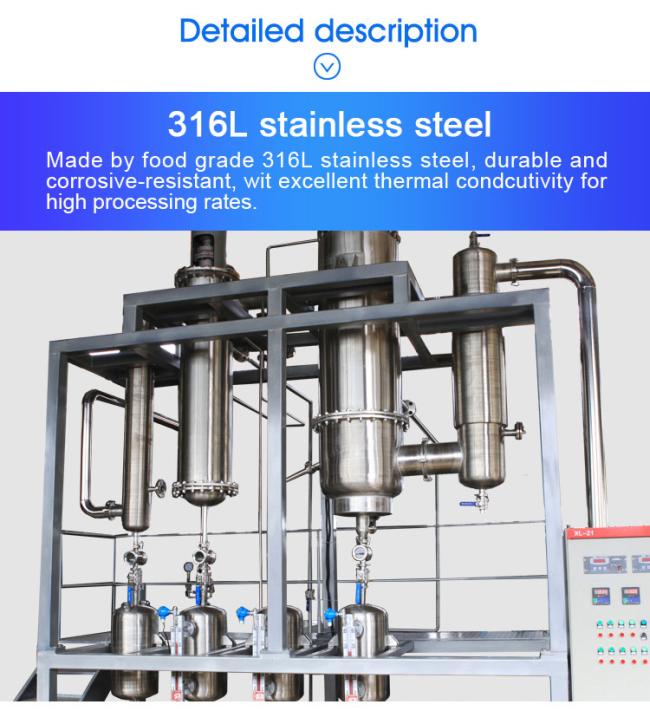

Material:316L |
|
|
Mechanical seal (Magnetic seal is optional) |
|
|
Film forming motor:3000W, mechanical constantly variable transmission,200~1000rpm/min |
|
|
External condenser |
1. 2m2 external condenser |
|
2. 5L liquid nitrogen cold trap |
|
|
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose) |
|
|
Choose 1 in above 3 types |
|
|
Heavier component discharge |
Gear pump |
|
Flow 30L~100L/H |
|
|
750W motor, electronic speed regulation. |
|
|
Lighter component discharge |
Gear pump |
|
Flow 30L~100L/H |
|
|
750W motor, electronic speed regulation. |
|
|
Material pipeline for machine |
Jacketed insulation |
|
Shelf & assemble |
304 stainless steel pipe |
