316L Stainless Steel Short Path Molecular Distiller For Essential Oil

1. Made by high quality 316L stainless steel, durable and corrosive-resistant, with excellent thermal conductivity for high processing rates.

2. Wide choices of sizes applicable to lab, pilot and industrial production.

• •

    • Short path molecular distiller or essential oil, cannabis oil, fish oil, clove oil, turmeric oil, etc. Molecular distillation process is popular as the most safety method of separation and to purify the thermally unstable molecules & related compounds with low volatility & elevated boiling point.

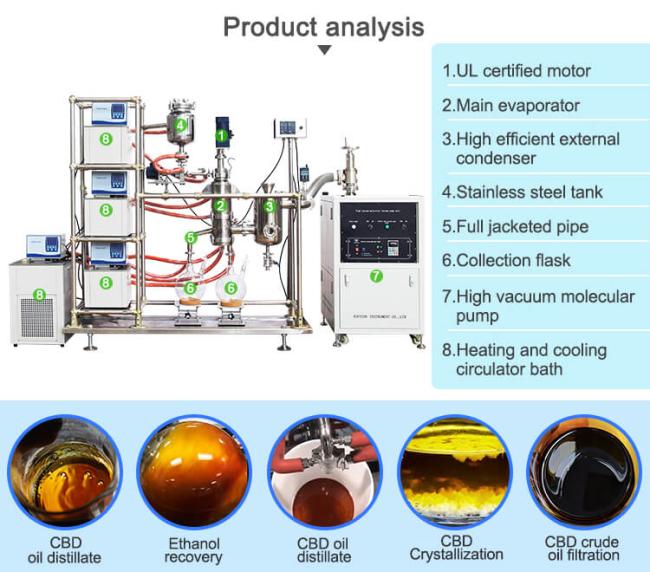

      • Technical parameters of TOPTION research molecular distillation equipment



        Distiller for essential oil	MDS-6C molecular distillation equipment
        Material tank	3L jacketed stainless steel tank
        	2 sight glass at top, with insulated ball valve.
        Material charging	Gear pump
        	Flow 0.5L～3L/H
        	120W motor, electronic speed regulation.
        Evaporator	Evaporation area 0.06㎡
        	Film forming way: scraper (roller is optional)
        	Material:316L
        	Mechanical seal (Magnetic seal is optional)
        	Film forming motor:200W motor, electronic speed regulation.
        Cold trap	1. 0.2㎡ chiller cooling cold trap
        	2. or 1L liquid nitrogen cold trap
        	3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose).
        	Choose 1 in above 3 types
        Heavier component discharge	Gear pump
        	Flow 0.5L～3L/H
        	120W motor, electronic speed regulation.
        Lighter component discharge	Gear   pump
        	Flow 0.5L～3L/H
        	120W motor, electronic speed regulation.
        Material pipeline	Jacketed insulation
        Shelf & assemble	304 stainless steel pipe
