Industrial Climbing Film Evaporator / Rising Film Evaporator

Name: Industrial Climbing Film Evaporator / Rising Film Evaporator
Brand: TOPTION INSTRUMENT CO., LTD.

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: Negotiable

Brand: TOPTION

Product Description

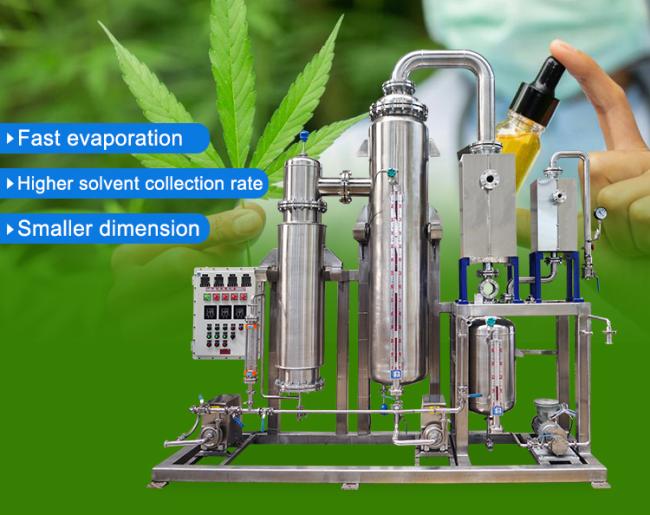

TOPTION rising film evaporator Main advantage include 200L/hr~1000L/hr evaporation capacity flexible design, the ethanol recovery rate can be as high as 95%, for example, for a 200L rising film evaporator, the actual ethanol collection volume is 200L in the collection tank for 1 hour. Gear pump feeds and discharges, without stopping the feed, working continuously for 24 hours; double plates for condensation, no waste of ethanol; semi-strong film formation, a larger vapor-liquid evaporation area with a smaller volume, fast evaporation speed, smaller equipment size, higher solvent collection rate.

Model	RFE-200L
Material :stainless steel 304	Material :stainless steel 304
Evaporator area	5m2
Evaporation chamber	Φ500
Condenser area	20m2+1m2, SS304,Plate heat exchanger
Storage tank	100L
Feeding pump	100-260L/H, centrifuge pump
Discharge pump 1	100-260L/H, centrifuge pump
Discharge pump 2	100-260L/H,high precision gear pump, 750W
Flowmeter	50-300L/H
Control Cabinet	Explosion-proof electric Control box

product process

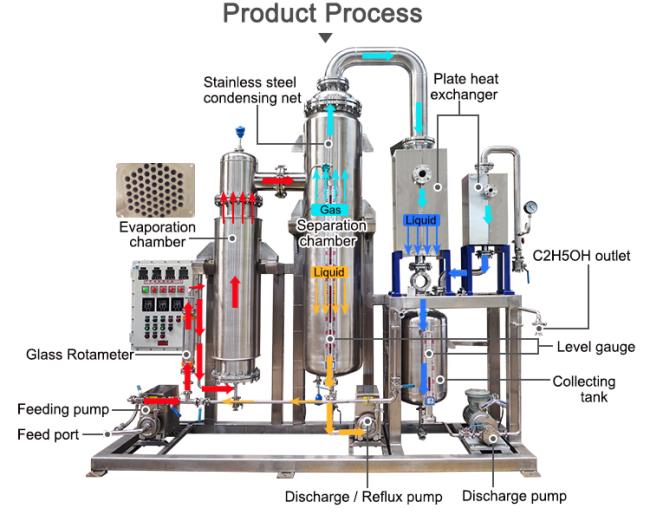

1.The heating evaporation chamber of the rising film evaporator is essentially a shell-and-tube heat exchanger with a large number of tubes inside, which are scientifically and tightly distributed in a large straight tube, and a larger straight tube is sheathed outside this large straight tube as the heat transfer medium jacket. After the extract solution enters the heating evaporation chamber, it is heated and vacuum sucked to quickly evaporate and form a film. The extract solution rises along the inner wall of the tube while evaporating, and then enters the separation chamber. The gas in the separation chamber rises and the liquid falls, while the liquid continues to evaporate. 2.There is a thick stainless steel packing on the top of the separation chamber, which can trap the liquid droplets in the airflow and reduce the loss of extract oil and alcohol. 3.After the concentrated solution at the bottom of the separation chamber has accumulated to a certain amount, the reflux pump can be turned on to let the concentrated solution continue to circulate and evaporate. When the fluidity and color of the concentrated solution meet the requirements through the glass rotor flowmeter, the solution can be pumped out. 4.The main and auxiliary two plate heat exchangers are respectively connected to the two chillers of the main and auxiliary. The main chiller is a 5°C~35°C chiller, and the auxiliary chiller is an external circulation chiller with -25~RT. This stepped condensation method can significantly increase the alcohol collection rate, reduce alcohol waste, and will not increase too much cost.

Product advantages

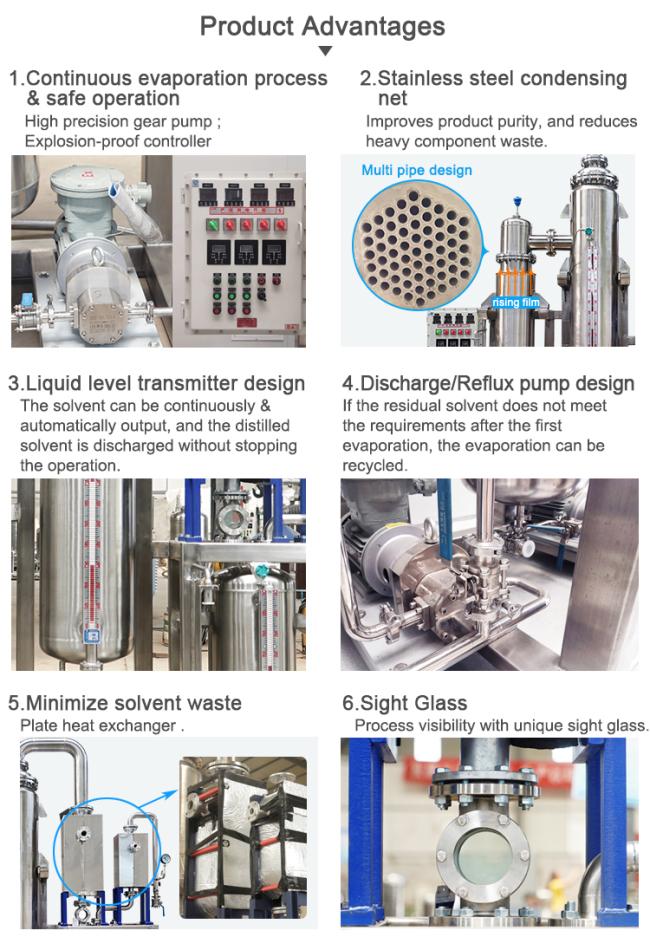

1. Continuous evaporation process & safe operation. High precision gear pump for automatic | stable | continuously material feeding / discharging. 2. Rising film evaporator for Fast evaporation, use smaller equipment to produce more products. 3 Stainless steel condensing net accelerates separation, improves product purity, and reduces heavy component waste. 4. Plate heat exchanger + condenser enhances condensation collection capacity, Minimize solvent waste. 5. Reduces the connect time of the vacuum equipment and system, reduces the solvent loss caused by the vacuum gas flow. 6. Liquid level transmitter design, the solvent can be continuously & automatically output, and the distilled solvent is discharged without stopping the operation. 7. Discharge / Reflux pump design, If the residual solvent does not meet the requirements after the first evaporation, the evaporation can be recycled.
