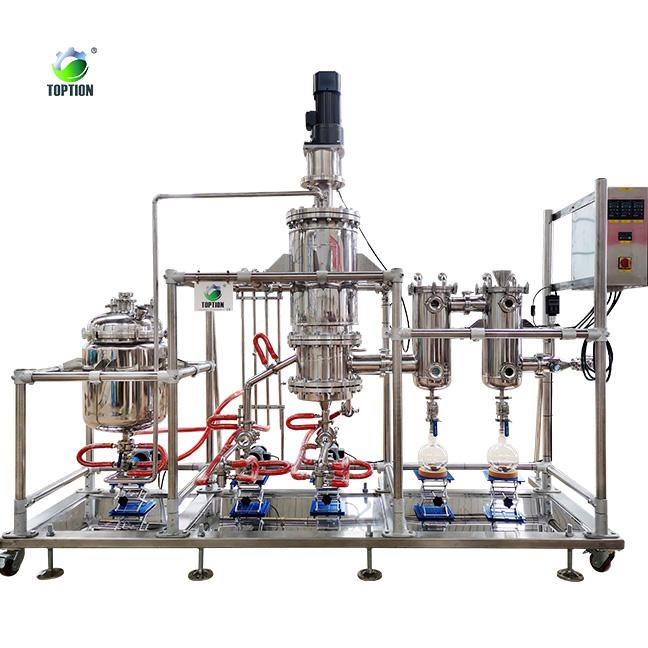

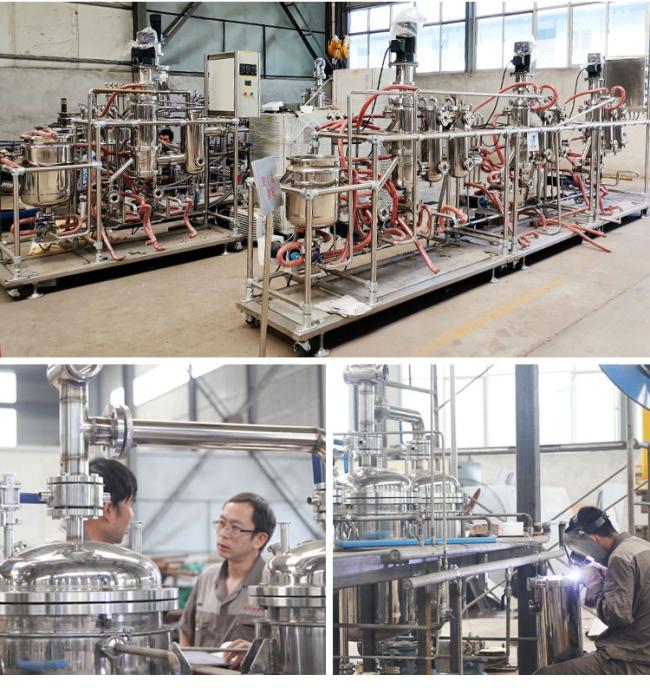

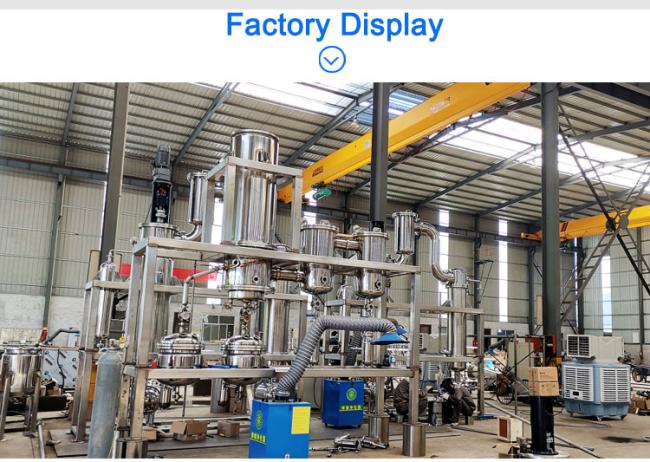

Essential Oil Molecular Distillation Equipment 30L Complete Short Path Distillation System

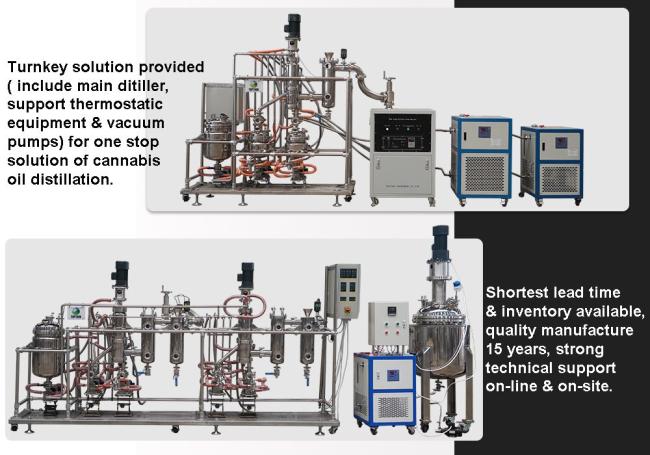

TOPTION INSTRUMENT is manufacturer for molecular distiller, rotary evaporator over 10 years in China. Here turnkey method can be provided.
About molecular distiller, 3~5L/h, 5~15L/h, 15~25L/h, or even more bigger feeding capacity can be provided.
About rotary evaporator, 3, 5, 10, 20, 50, 100L all can be provided.
TOPTION engineers have design the falling film type, centrifugal type, wiped film type evaporators.
The molecular distiller is widely used for hemp oil distillation purpose in North America, Poland, Switzerland, etc.
And it is very popular in essential oil distillation industry with bigger production.

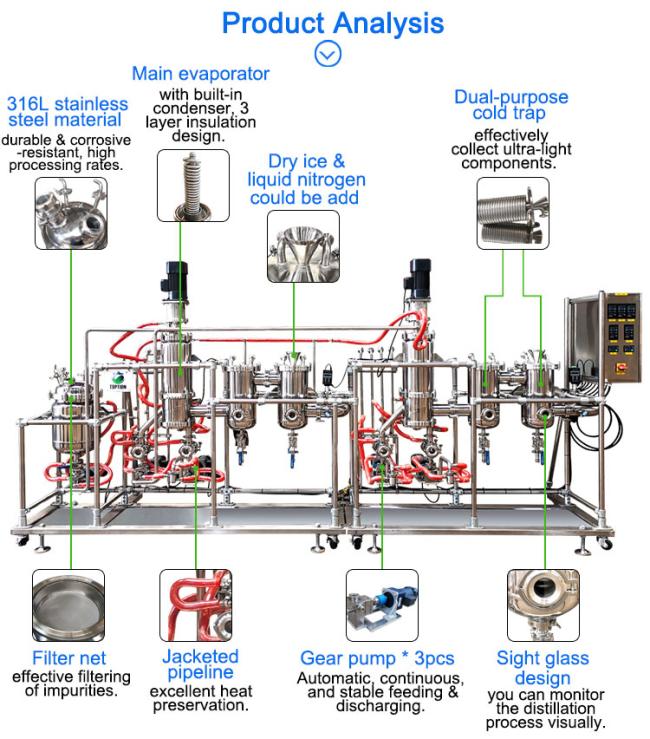

A complete wiped film short path should include:
1. Thin film molecular distiller with internal condenser. 2. Heating system.
3. Material charging system. 4. Cooling system for external condenser.
5. Vacuum system. 6. Material collection unit, etc.

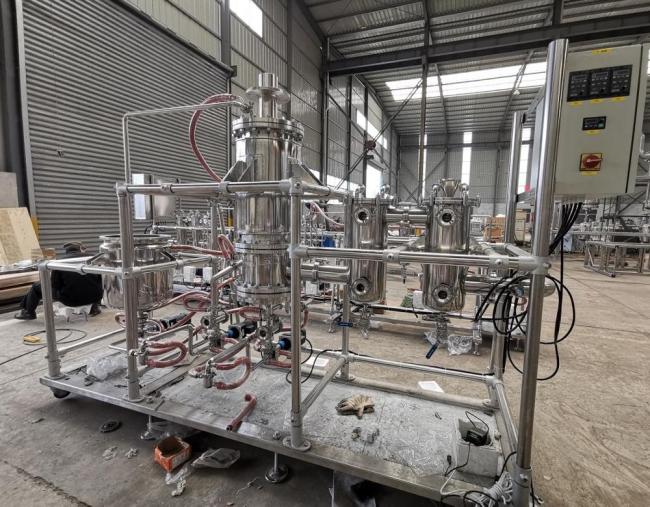

One stage wiped film short path
two stage wiped film short path
Technical parameters of wiped film short path:
|
Model |
MDS-30C wiped film short path |
|
Material tank |
30L jacketed stainless steel tank, with heating jacket and insulation jacket |
|
2 sight glass at top, with insulated ball valve. |
|
|
Material charging for MDS-30C |
Gear pump |
|
Flow 5L~15L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Evaporator |
Evaporation area 0.3m2 |
|
Film forming way: scraper (roller is optional) |
|
|
Material:316L |
|
|
Mechanical seal (Magnetic seal is optional) |
|
|
Film forming motor: 550W, mechanical constantly variable transmission,200~1000rpm/min |
|
|
Cold trap |
1. 1m2 chiller cooling cold trap |
|
2. 3L liquid nitrogen cold trap |
|
|
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose) |
|
|
Choose 1 in above 3 types |
|
|
Heavier component discharge |
Gear pump |
|
Flow 5L~30L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Lighter component discharge |
Gear pump |
|
Flow 5L~30L/H |
|
|
200W motor, electronic speed regulation. |
|
|

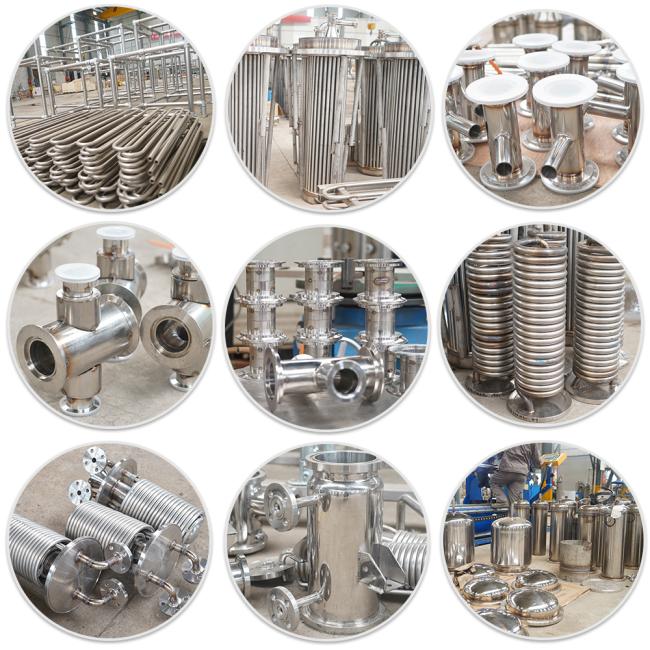

Material pipeline |
Jacketed insulation |
|

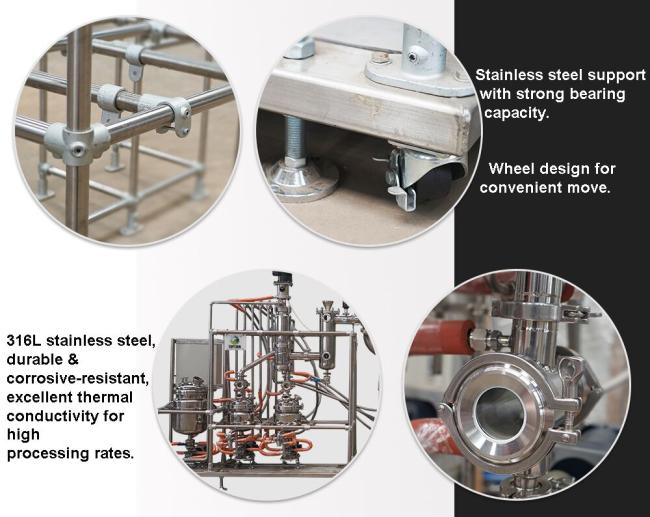

Shelf & assemble |
304 stainless steel pipe |
All hot models wiped film short path for you refer
|
Model |
MDS-10C |
MDS-30C |
MDS-50C |
|
Jacket Storage tank |
15L |
30L |
50L |
|
Auto Feeding |
3~5L/h |
5~15L/h |
10~25L/h |
|
Evaporator with internal condenser |
0.1m2 |
0.3m2 |
0.5m2 |
|
External condenser area |
0.4m2 |
1m2 |
1m2 |
|
dual purpose condenser with cold trap |
One pc |
One pc |
One pc |
|
Discharge gear pump |
3~15L/h *2 pcs |
5~30L/h *2pcs |
10~50L/h*2pcs |
|
Material |
SS316L inside will contact product directly, outside SS304 |
||
|
Heater, chiller |
optional |
||
|
Vacuum |
0.01Pa, 0.1Pa, 1Pa, 10Pa ---optional |
||

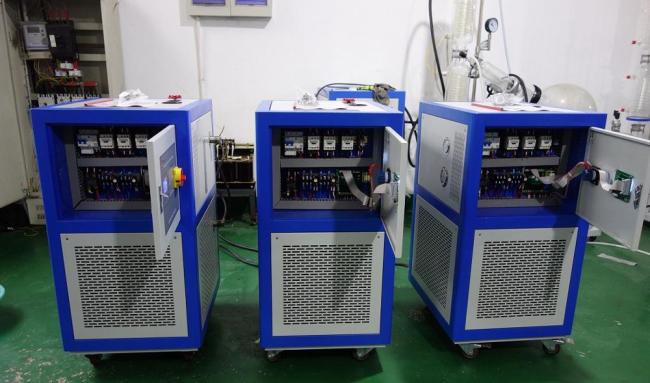

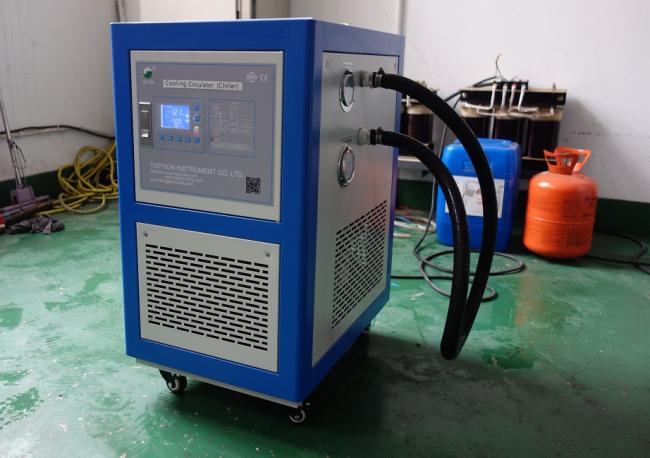

Heating cooling system for evaporator
Heaters for all pipes and material

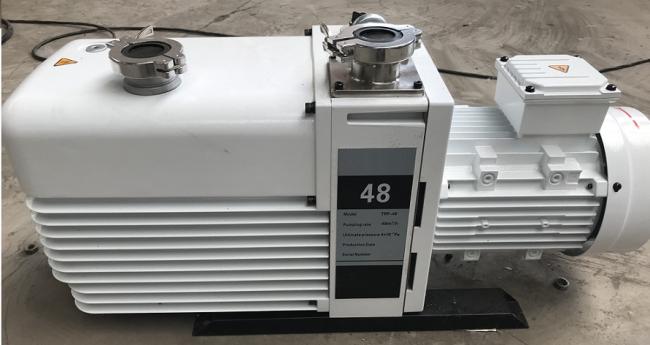

Vacuum pump for Thin Film Evaporator Hemp Oil Molecular Distillation
More equipment if you need, pls click below:
100L rotary evaporator for Ethanol removal (material concentration)
50L rotary evaporator for ethanol removal purpose
50L stainless steel vacuum filter, filter plate can be removable
20L nutsche Filter Dryer for material crystalization, filter, washing, drying purpose
Two stage molecular distiller short path for cbd oil distillation and purity
