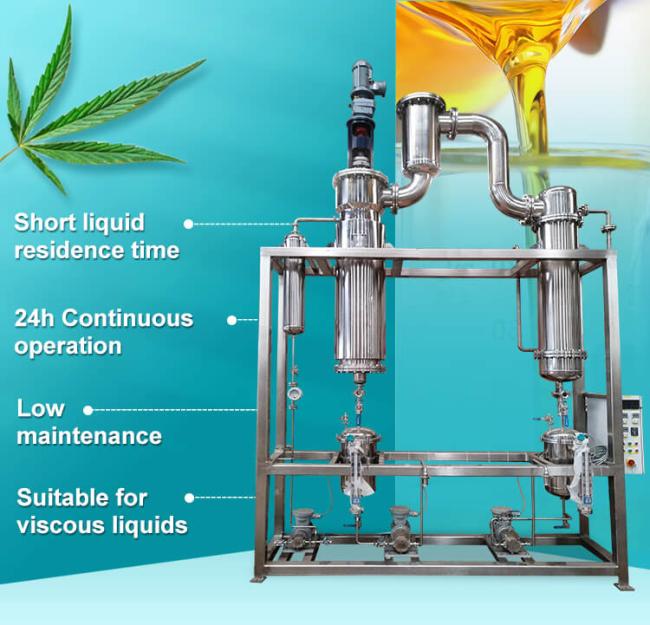

316L Stainless Steel Pope Wiped Film Evaporator Molecular Distillation Equipment
316L Stainless Steel Wiped Film Molecular Distillation Equipment
1. Stainless steel material for durable, corrosive-resistant, excellent thermal conductivity - high efficient performance.
2. Wide choices models - lab, pilot and industrial production.
3. Professional customize distillation one stop solution.
TOPTION wiped film evaporator adopt stainless steel material, which has quickly heat transfer rate, guarantee extraction efficient is 1.4 times higher. Windy used for Purification & Decoloration, such as Rose Essence Oil, Ginger Oil, Angelica Oil, Orange Peel Oil, Artemisia Argyi Oil, etc.

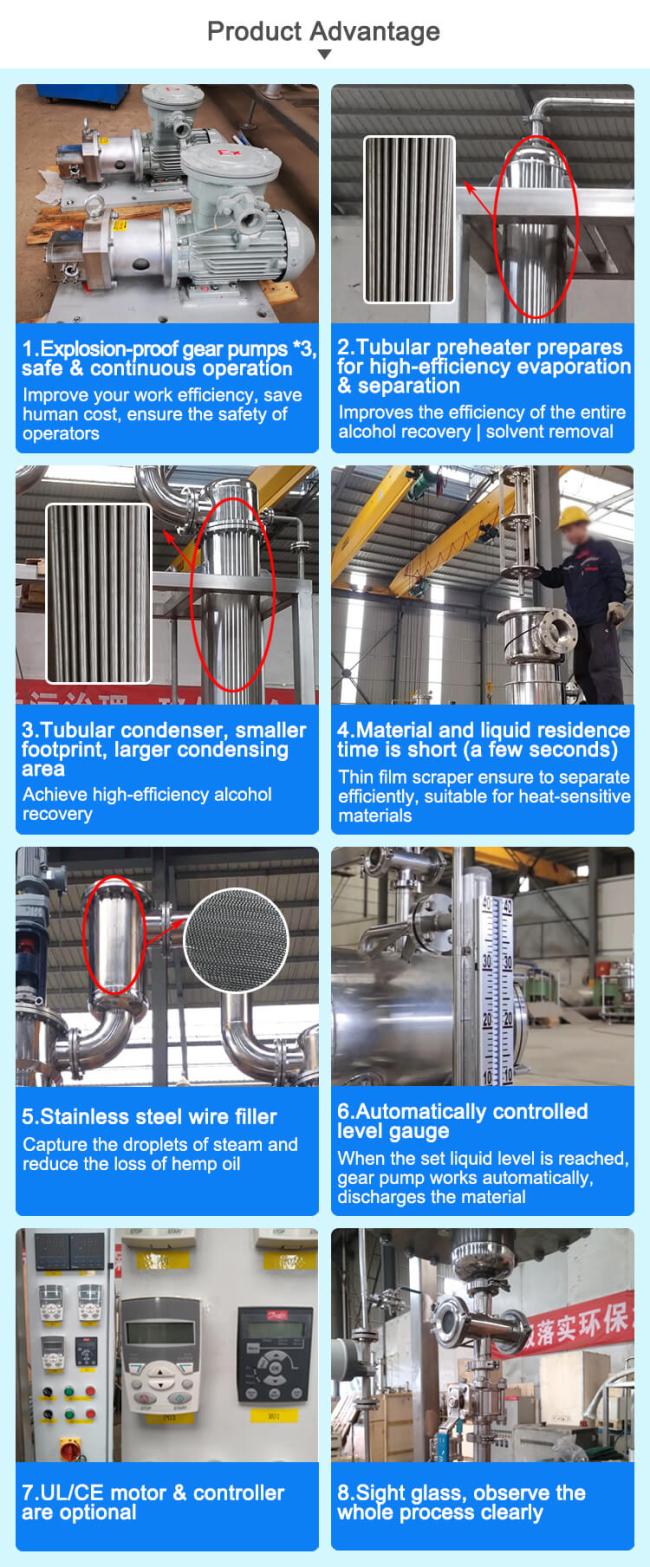

Main features of this set wiped film molecular distillation distillation equipment
1. Made by high quality 316L stainless steel, durable and corrosive-resistant, with excellent thermal conductivity for high processing rates.
2. Wide choices of size applicable to lab, pilot and industrial production.
3. Fully jacketed design can make full insulation of whole system with circulating hot oil for precise control of insulation temperature.

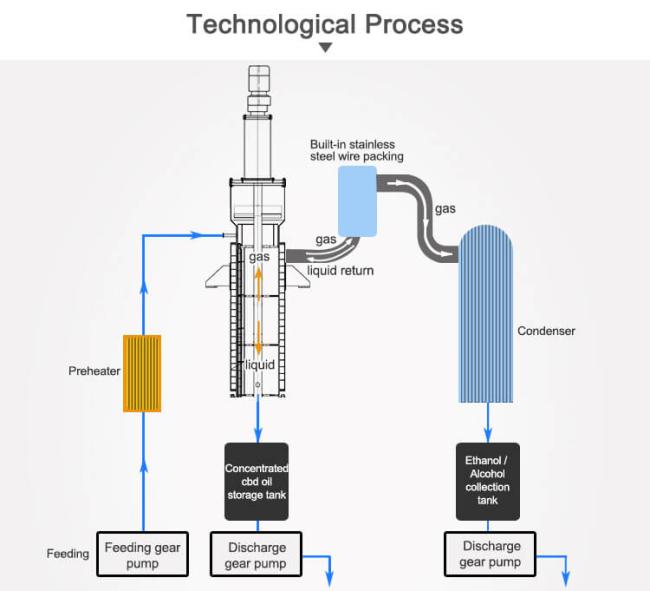

4. Fully automatic operation by feeding and collection pumps make continuous and high efficient working process.
5. Turnkey solution provided ( include main distiller, support thermostatic equipment and vacuum pumps) for one stop solution of cannabis oil distillation.
6. Shortest lead time and inventory available, quality manufacture 15 years, strong technical support on-line & on-site.
7. CE certification, ISO approved, reliable quality to be your TOP OPTION in plant oil business.
Technical parameters of used wiped film evaporator
| Model | MDS-200C used wiped film evaporator |
| Material charging | Gear pump |
| Flow 30L～260L/H | |
| 1.5W frequency control | |
| Evaporator | Evaporation area 2㎡ |
| Film forming way: scraper (roller is optional) | |
| Material: 316L | |
| Mechanical seal | |
| Film forming motor: 3KW, frequency control of motor speed. | |
| Cold trap | 1. 2㎡chiller cooling cold trap |
| 2. 5L liquid nitrogen cold trap | |
| 3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose). | |
| Choose 1 in above 3 types | |
| Heavier component discharge | Gear pump |
| Flow 30L～260L/H | |
| 1.5KW frequency control of motor speed | |
| Lighter component discharge | Gear pump |
| Flow 30L～260L/H | |
| 1.5W frequency control of motor speed | |
| Material pipeline | Jacketed insulation |
| Shelf & assemble | 304 stainless steel pipe |
