0.06m2 Small Laboratory Short Path Molecular Distillation Apparatus

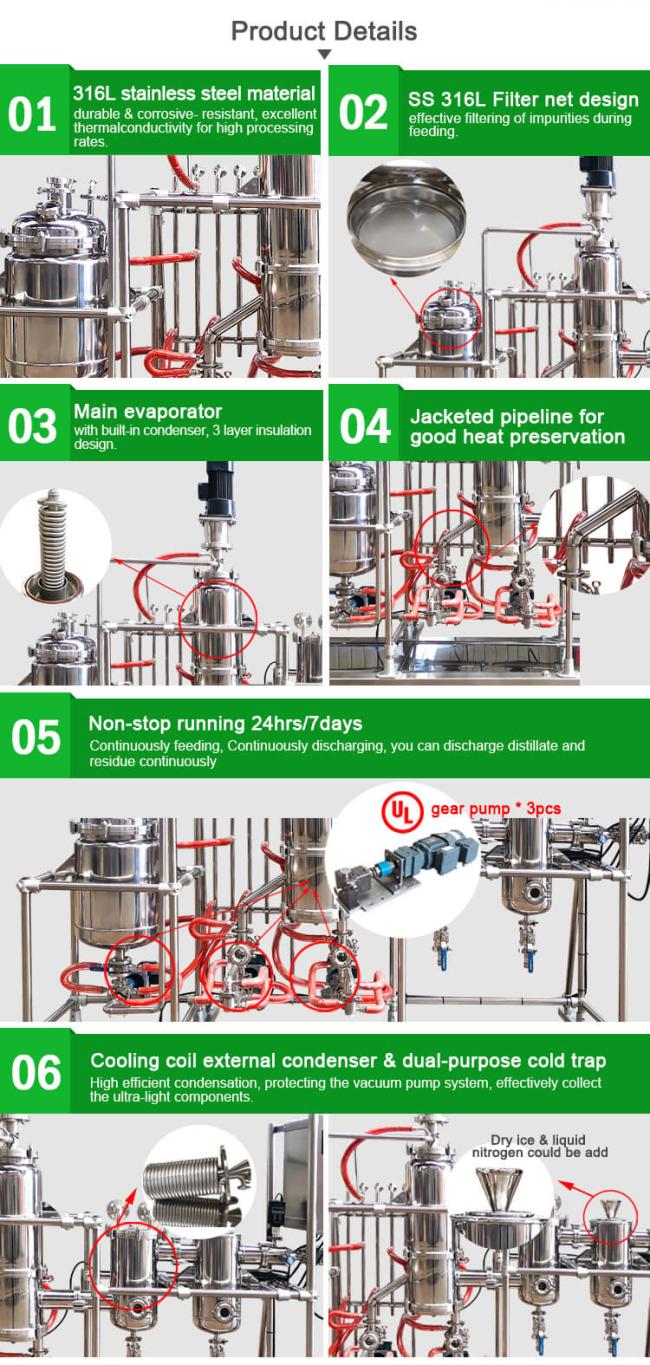

1. 0.06m2 evaporation area.
2. 3L stainless steel double-layer insulation feeding tank.
3. Continuous feeding of magnetic gear pump, 24h/7days continuously working.
- This type laboratory short path molecular distillation apparatus is widely used in
1. Thermal separation of heat sensitive chemical compounds.
2. The purification of organic synthetic material.
3. The separation of effective components from the biological extracting solution.
4. The recycling of industrial waste.
5. Remove toxic substances in the food industry.
6. The organic compounds' decoloring, and eliminate the unusual smell.
7. High precision to remove residual solvent in chemical compound.
Technical data of this small scale molecular distillation unit:
| Cannabis oil distillation equipment | MDS-10C molecular distillation units |
| Material tank | Upgrade15L jacketed stainless steel tank |
| 2 sight glass at top, with insulated ball valve. | |
| Material charging | Gear pump |
| Flow 3L～15L/H | |
| 200W motor, electronic speed regulation. | |
| Evaporator | Evaporation area 0.1㎡ |
| Film forming way: scraper (roller is optional) | |
| Material:316L | |
| Mechanical seal (Magnetic seal is optional) | |
| Film forming motor:370W, mechanical constantly variable transmission,200～1000rpm/min | |
| Cold trap |
|
|
|
|
|
| Choose 1 in above 3 types | |
| Heavier component discharge | Gear pump |
| Flow 3L～15L/H | |
| 200W motor, electronic speed regulation. | |
| Lighter component discharge | Gear pump |
| Flow 3L～15L/H | |
| 200W motor, electronic speed regulation. | |
| Material pipeline | Jacketed insulation |
| Shelf & assemble | 304 stainless steel pipe |
1.Packing method: Standard export fumigation wooden box or base on your requests.
2.Shipping method: By Express door to door, or by ship, based on customer choice.
1)If delivery goods by Express, door to door service, generally about 5-7 working days reach.
2)If by air, delivery goods to your destination airport, about 5 working days can reach.
3)If by sea, delivery goods to your local seaport, specific days and cost is based on your seaport name.
