Wiped Film Short Path Distillate Machine For Hemp Oil Purity

1. Lab-pilot-industry wide capacity range, ISO CE UL certification.

2. On-site installation & training service are available.

3. Turnkey solution from extraction - filtration - evaporation - decarboxylation - distillation - crystallization - drying.

Wiped film short path distillate machine for cbd oil purity

TOPTION as distillate machine manufacturer 15+ years, provide professional one-to-one customization service. For hot standard distillation equipment, TOPTION have enough inventory to support fast delivery. For products that need to be customized, we have a strong team of engineers to assist in analyzing and discussing your needs and making equipment. After the machine drawings are confirmed together, they will be put into high-efficiency production to ensure that each design is practical. While ensuring quality, it will bring you the highest cost performance.

The above is one of TOPTION most popular models 12inch short-range molecular distillation equipment. On the right is a 3-stage short path distillate machine. In order to improve the purity of the obtained cbd oil, some customers will need to customize multi-stage vacuum distillation equipment, including two-stage and three-stage, the wiped film evaporator combines customization,etc, from lab scable - pilot to productive wide capacity range customization.

• 1	Magnetic sealing strong motor to drive rotation, and mechanical sealing type is optional

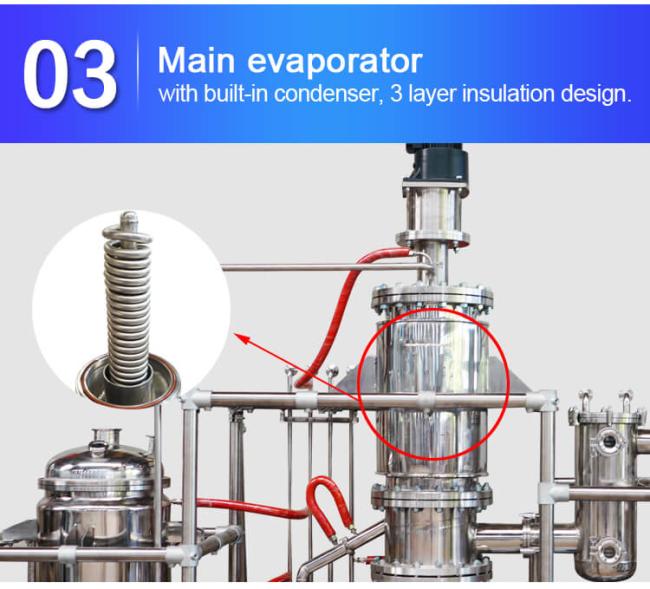

  2	Jacketed evaporator with internal condenser, jacketed layer insulation design

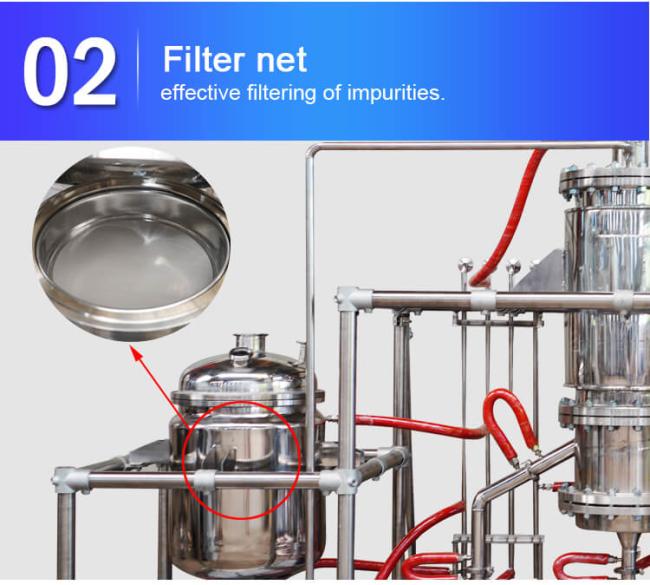

  3	Jacketed feeding tank with sight glass design, built in filter net to filter impurities
  4	Heat preservation pipe, stainless steel double layer design
  5	Coils cold trap with sight glass
  6	Vacuum gauge
  7	Control cabinet ( UL / CE configurations are optional )
  8	Vacuum trimming valve
  9	Full jacketed pipe, feeding and collection section
  10	Gear pump for automatic and continuous feeding
  11	Collection pump ( residue ) for automatic and continuous collection
  12	Collection pump ( distillate) for automatic and continuous collection
  13	Collection flask, stainless steel type is available
  14	Strong support platform





•







  Advantages of TOPTION stainless steel wiped film molecular distillate machine for cbd oil purity
