Lab Scale Starter Turn Key Distillation Kit Short Path Distillation Kit Stainless Steel

Name: Lab Scale Starter Turn Key Distillation Kit Short Path Distillation Kit Stainless Steel
Brand: TOPTION INSTRUMENT CO., LTD.

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: Negotiable

Brand: TOPTION

Product Description

Products Description

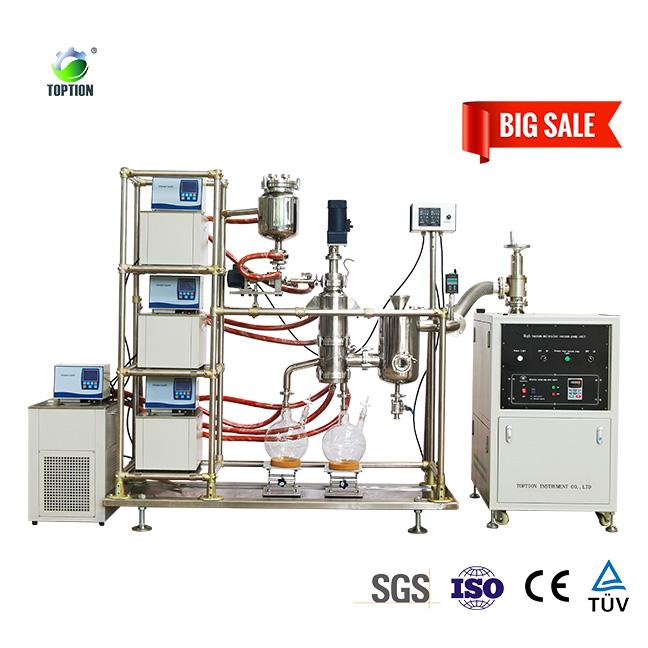

TOPTION starter short path distillation unit, include stainless steel / glass short path distillation set (optional),vacuum system 10Mpa, 1Mpa, 0.05Mpa, heating & cooling circulator bath for high precision temperature control, from hemp biomass extraction to get pure cbd oil, high purity cbd crystals one stop turnkey solution,

Technical paramaters of TOPTION this lab scale short path distillation unit ( lab - pilot - industry wide capacity range customization, single stage - two stages - three stages customize, UL / CE configurations are optional)

Model	Evaporator area (m2)	Internal condenser area (m2)	Capacity (L/h)	Mixing motor power (W)	Liquid nitrogen cold trap
MDS-6	0.06	0.10	1-3	200W	1L
MDS-10	0.10	0.15	5-12	370W	3L
MDS-20	0.20	0.40	10-25	370W	3L
MDS-30	0.30	0.50	18-30	550W	3L
MDS-50	0.50	2.0	20-60	1500W	5L
MDS-100	1.00	3.0	50-100	3000W	5L
MDS-150	1.50	4.0	75-150	3000W	5L
MDS-200	2.00	5.0	100-200	3000W	5L

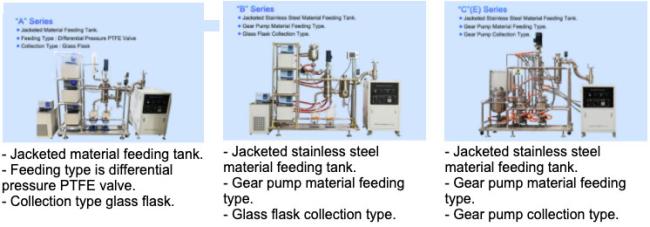

Different types short path distillation equipments are optional, different models have different meanings, as shown below

"A" Series - Pressure differential feeding method.

"B" Series - High precision gear pump feeding mode.

"C" Series - High precision gear pump feeding and discharging.

"E" Series optional - External condenser.

Process flow

1. The control system of the vacuum unit reaches the required vacuum. 2. The temperature control unit control system reaches the required temperature. 3. Material feeds to the evaporation tower through gear pump. 4. The scraper in the evaporation tower rotates quickly to allow the material to form a thin film. The material liquid volatilizes under high vacuum and heating conditions. The molecular free path of light components is larger and is captured by the inner condenser, and the molecular free path of heavy components is smaller and falls back to the wall of the evaporation tower. 5. The light component flows down the inner condenser and is pumped out of the system by a gear pump or pumped to the next short-range. The heavy component flows down the wall of the evaporation tower and is pumped out of the system by a gear pump or pumped to the next short-range. 6. The ultralight components and residual solvents that have not been trapped by the inner condenser are trapped in the outer condenser and cold trap.

1. Material be heated in short time, successfully eliminates the thermal decomposition, polymerization, or metamorphic.

2. Low evaporation temperature, the distillation temperature was much lower than the conventional distillation method.

3.Self-cleaning heating surface, so short path distillation system can successfully be applied to the material consentration and separation which is easily bubble, in the heating surface fouling in conventional distillation.

4. High efficiency evaporation, strong adaptability, easy operation. Simple structure, convenient cleaning, freedom of start-up and shut-down, suitable for many varieties, discontinuous small chemical production.

Application

Applied industry	Examples of the species of refined products
Pharmaceutical	herb pot sative full spectrum distillate, high purity herb oil, delta 8, fish oil, Acyl chloride, amino acid ester, vitamin E,glucose derivative, terpene ester, natural or synthetic vitamin, beta-carotene, gingerol, capsicum pigment,etc.
_Food	Monoglycerides, palm oil, tocopherol, fish oil, rice bran oil, fatty acids and their derivatives, dienoic acid,
_Food		Vegetable oil, diglycerides, glutamate, cream, lactic acid, linseed oil, dimer acid,etc.
Chemistry	Advanced alcohols, glycerides, herbicides, halogenated alkanes, pesticides, silicone oils, waxes, fatty acids, etc.
Plastic industry	Epoxy resin, epoxidated oil, isocyanate, plasticizer, stabilizer, polyether and polyether polyol,etc.
Petroleum industry	Base oil, bright oil, lubricating oil, vaseline, fir oil, residual tar, etc.
Cosmetic industry	Lanolin fatty acid, lanol, including algae, roots of plants, extract of capsicum, high fat ester, turmeric essential oil, dry ginger essential oil,etc.
