RE-52A Laboratory 1L Rotary Vacuum Evaporator for Distillation
RE-52A Laboratory 1L Rotary Vacuum Evaporator for Distillation
Description of RE-52A Laboratory 1L Rotary Vacuum Evaporator for Distillation
Rotary Evaporator is the use of vacuum pressure, constant temperature heating conditions, using the rotating bottle constant speed rotation, the formation of large area thin film, high evaporation equipment installations.
Rotary evaporator is mainly used for pharmaceutical, chemical and bio-pharmaceutical industry concentration, crystallization, drying, separation and dissolution of coal recovery. The principle is: in a vacuum condition, constant temperature heating, to rotate bottles constant rotation, the material in the sidewall formation of large area thin film, high evaporation. Solubilization by high glass condenser vapor cooling, recovery in the collection bottle, greatly improve the efficiency of evaporation, particularly easy to use in high-temperature decomposition of the variability of biological products was concentrated and purified.
Key Features of RE-52A Laboratory 1L Rotary Vacuum Evaporator for Distillation
New floor rotary evaporator, using a large capacity, large diameter rotary evaporation flask, increased evaporation area, in the decompression in the water bath, side spin, side heating, diffusion or evaporation of the solution, a wide range of applications and sample size concentration, drying, extraction, recycling, chemical, pharmaceutical, food, environmental, university research laboratory and industrial mass production of such good equipment.
Technical parameters of RE-52A Laboratory 1L Rotary Vacuum Evaporator for Distillation
|
type
|
RE-52A
|
|
Rotating Flask(L)
|
1L
|
|
Optional Rotating Flask(L)
|
0.5L, 0.25L,0.1L or 2L
|
|
Down mode
|
Hand wheel screw lift with automatic lifting
|
|
Receive Flask(L)
|
1L
|
|
Rotation speed(rpm)
|
0-150
|
|
staic Temp. Control range(℃)
|
RT-99
|
|

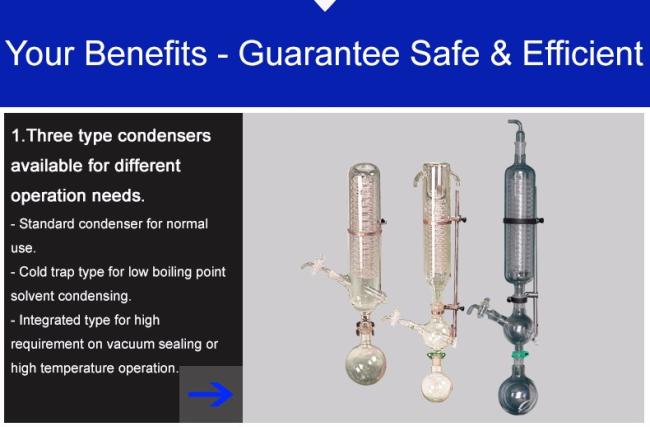

condenser
|
Vertical type, double serpentine tube With small capacity cold trap
|
|
Rotating bottle max capacity (L)
|
2
|
|
Max capacity to collect bottle (L)
|
2
|
|
Evaporator peed(H2O)
|
1.2L/H
|
|
Reachable vacuum Rate
|
<133pa(1.33mbar, 1 Torr)
|
|
power
|
220V 50/60Hz
|
|
Bathpower (W)
|
1.1KW
|
Toption Instrument Instrument Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, high-pressure reactor, photochemical reactor, ultrasonic dispenser/homogenizer, freeze dryer(lyophilizer), spray dryer and so on.
1. TOPTION Instruments provides ONE YEAR WARRANTY for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. TOPTION Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
