Supercritical CO2 Extraction System For CBD , Essence Extraction Machine
Price:
Negotiation
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TOPTION
Product Description
Product Description

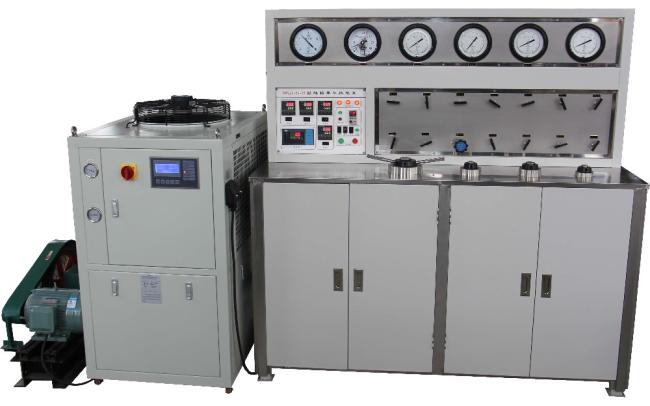

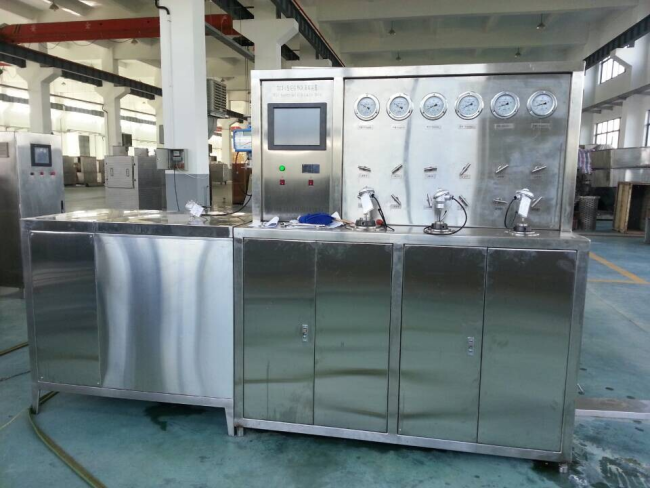

supercritical co2 extraction machine for CBD in toption instrument co,.ltd
TOPTION brand Supercritical Fluid Extraction Machine is also named as Essence Extraction Machine, which is used for the extraction of material (solid or liquid) under high pressure and suitable temperature extraction.
Changing conditions in the separation kettle, the dissolved substances will resolve in order to achieve the purpose of separation.
Supercritical CO2 extraction equipment includes several parts:
|
Extraction kettle
|
Separation kettle
|
Commingler
|
|
CO2 high-pressure pump
|
Entrainer pump
|
Refrigeration system
|
|
Heat exchange system
|
CO2 storage tank
|
CO2 level gauge
|
|
Purification system
|
Flow meter
|
Temperature control system
|
|
Safety protection system, etc
|
/
|
/
|
The supercritical CO2 extraction is specially suitable for extraction of fat-soluble and heat sensitive substances with high boiling point. Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological products, foodstuff and medicines.
Technical parameters
|
Model
|
Extraction capacity
|
Pressure
|
|
TOP121-50-05
|
5L
|
500bar
|
|
Temperature range
|
Combining form
|
/
|
|
RT-75℃
|
Two extracting pot-two separating pot one rectifying column circulation mode.
|
/
|
Product Details
Main Features
1) Intermittent or continuous work,co-solvent can be added if request.
2) CO2 can be recovered and reused.
3) Pressure and temperature can be designed according to demand.
4) Can custom made into PLC or computer control.
Application
|
Application
|
Description
|
|
Agriculture Food
|
Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
|
|
Pharmaceutical
|
Extraction of active components, preparation of natual products, viamins
|
|
Cosmetic
|
Extraction of fragrances and oils.
|
|
Laundry
|
Dry cleaning of garments.
|
|
Mechanical
|
Degreasing parts, precision cleaning of high-value componets.
|
|
/
|
A wide range of industries for the extraction of natural products for the food additives (such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc), drugs (such as artemisia annua vegerarian, magnolia, angelia, etc), health care (such as sea buckthorn, samara, pomegranate, lycopene, etc).
|

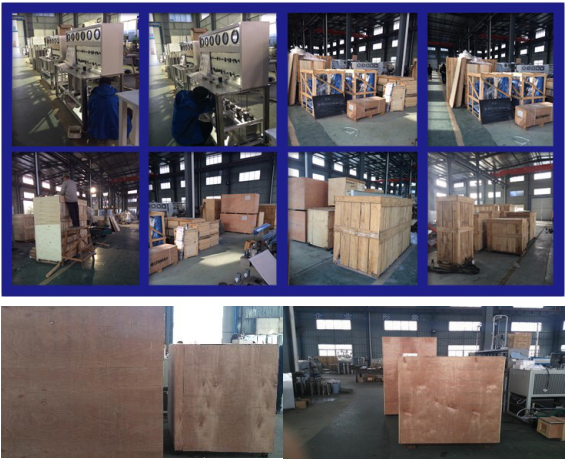

Packing & Delivery
Our Company
TOPTION is specialized in manufacturing and selling photochemical glass reactor ,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, extracting device and so on.
With 11-yaeas experience and after 8-year developing, we has gained increasing domestic and foreign market share and enjoyed good reputation in the industry, our products are applied to many university and scientific research facilities in many fields. We can also produce the kinds of equipments depending on your needs.We believe the quality will not let you down. TOPTION company can custimezed various specifications of glass reactor system, we believe "TOPTION" will be your "TOP OPTION".
Our Service
2) Normal operation method and step.
3) Import and export of CO2 and additive.
4) Material tank load and unload of extractor.
5) Open and close of extractor and separator.
6) How to use dry purifier.
7) The parameter setting and physics meaning of all controlling component.
8) The operation of high pressure valve control, flow adjustment, temperature setting, pressure balance, etc.
8) The operation of high pressure valve control, flow adjustment, temperature setting, pressure balance, etc.
9) The daily maintenance program and method of this device.
One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished.
Consultant services for whole machine life, and 24 hours technical support by email.
UPS, English software, user manual and the installation & debugging by our experienced technicians.
FAQ
1) Q: What specifications do we offer?
A: We supply 0.5L~1500L machine for you, big capacity of machine also can be customized according to your requests.
2) Q: Does the CO2 can be reused?
A: YES. CO2 can be used in circulation.
3) Q: How long does it takes to produce the machine once place my order ?
A: Generally it takes about 60 workdays. We are responsible for the quality of machine our customers. Every procedure and detail has to be inspected strictly.
4) Q: How will my order be packed, can you provide the installation service?
A: Plywood case and wooden case. And we will assemble and test the machine before packing. If customer need, we will send one engineer for assembling and training for workers.
