Integrated Circuit Transistor Co2 Supercritical Fluid Extraction Stainless Steel
Product Description

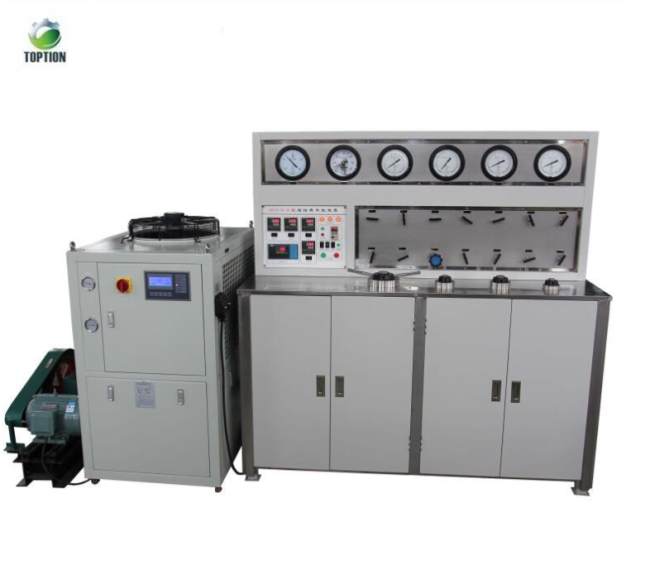

General introduction of CO2 Extracts Machine
TOPTION brand Supercritical Fluid Extraction Machine is also named as Essence Extraction Machine, which is used for the extraction of material (solid or liquid) under high pressure and suitable temperature extraction.
Changing conditions in the separation kettle, the dissolved substances will resolve in order to achieve the purpose of separation.TakeCO2as the solvent to make extraction and purification upon a lot of products such as biological productsfoodstuff and medicines.
Changing conditions in the separation kettle, the dissolved substances will resolve in order to achieve the purpose of separation.TakeCO2as the solvent to make extraction and purification upon a lot of products such as biological productsfoodstuff and medicines.
Product details
1)The extractor is equipped with a quick opening, the quick opening mechanism adopts special design (the technology introduced from US), and the switch kettle is portable and fast.
2)The extractor and separator are made of stainless steel integral forgings with high strength and long life.
3)Unique cylinder design, which increases the effective contact with the material in the extractor, overcomes the "bypass" phenomenon of CO2, improves the extraction efficiency and yield, and reduces the extraction time.
4)The heat exchange system is equipped with electric heating device. The temperature can be set arbitrarily and the heating is stable and uniform.
5)Adopt the refrigeration unit of joint venture technology, the refrigeration effect is good, the appearance is beautiful.
6)Equipment has reliable security: in addition to the pressure device has enough safety margin, the extractor, separator, evaporator are equipped with safety relief valve, and CO2 pump discharge has pressure limited protection, the whole units will stop running while over pressure.
7)Control system operation is simple: extraction and separation pressure, heating and cooling temperature, CO2 flow can be determined by process.
8)Use frequency converter to adjust CO2 flow, which is convenient for process and energy saving.
|
Application
|
Description
|
|
|
Agriculture Food
|
Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
|
|
|
Pharmaceutical
|
Extraction of active components, preparation of natual products, viamins.
|
|
|
Cosmetic
|
Extraction of fragrances and oils.
|
|
|
Laundry
|
Dry cleaning of garments.
|
|
|
Mechanical
|
Degreasing parts, precision cleaning of high-value componets.
|
|
|
A wide range of industries for the extraction of natural products for the food additives(such as ginger, large bolt, cinnamon,
anise, hops, pepper, cumin, etc.), drugs(such as artemisia annua vegerarian, magnolia, angelia, etc.), health care(such as sea buckthorn, samara, pomegranate, lycopene, etc). |
|
|
|
Model
|
Extraction
capacity |
Pressure
|
Temperature
range |
Combining form
|
|
TOP120-50-0.5
|
0.5L
|
500bar
|
RT-75℃
|
One extracting pot-two separating pot circulation mode.
|
|
TOP121-50-0.5
|
0.5L
|
500bar
|
RT-75℃
|
One extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP120-50-01
|
1L
|
500bar
|
RT-75℃
|
One extracting pot-two separating pot circulation mode.
|
|
TOP121-50-01
|
1L
|
500bar
|
RT-75℃
|
One extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP120-50-02
|
2L
|
500bar
|
RT-75℃
|
One extracting pot-two separating pot circulation mode.
|
|
TOP121-50-02
|
2L
|
500bar
|
RT-75℃
|
One extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP120-50-05
|
5L
|
500bar
|
RT-75℃
|
Two extracting pot-two separating pot circulation mode.
|
|
TOP121-50-05
|
5L
|
500bar
|
RT-75℃
|
Two extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP220-50-06
|
(5+1)L
|
500bar
|
RT-75℃
|
Two extracting pot-two separating pot circulation mode.
|
|
TOP221-50-06
|
(5+1)L
|
500bar
|
RT-75℃
|
Two extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP220-40-11
|
(10+1)L
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot circulation mode.
|
|
TOP221-40-11
|
(10+1)L
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP220-40-20
|
(10+10L
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot circulation mode.
|
|
TOP221-40-20
|
(10+10L
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP120-40-24
|
24L
|
400bar
|
RT-75℃
|
One extracting pot-two separating pot circulation mode.
|
|
TOP121-40-24
|
24L
|
400bar
|
RT-75℃
|
One extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP220-40-48
|
24L×2
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot circulation mode.
|
|
TOP221-40-48
|
24L×2
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP320-40-72
|
24L×3
|
400bar
|
RT-75℃
|
Three extracting pot-two separating pot circulation mode.
|
|
TOP321-40-72
|
24L×3
|
400bar
|
RT-75℃
|
Three extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP420-40-96
|
24L×4
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot circulation mode.
|
|
TOP421-40-96
|
24L×4
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP220-40-100
|
50L×2
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot circulation mode.
|
|
TOP221-40-100
|
50L×2
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot one rectifying column circulation mode.
|
|
TOP320-40-150
|
50L×3
|
400bar
|
RT-75℃
|
Three extracting pot-two separating pot circulation mode.
|
|
TOP420-40-200
|
50L×4
|
400bar
|
RT-75℃
|
Four extracting pot-two separating pot circulation mode.
|
|
TOP220-40-200
|
100L×2
|
400bar
|
RT-75℃
|
Two extracting pot-two separating pot circulation mode.
|
|
TOP630-40-300
|
50L×6
|
400bar
|
RT-75℃
|
Six extracting pot-three separating pot circulation mode.
|
|
TOP320-35-300
|
100L×3
|
350bar
|
RT-75℃
|
Three extracting pot-two separating pot circulation mode.
|

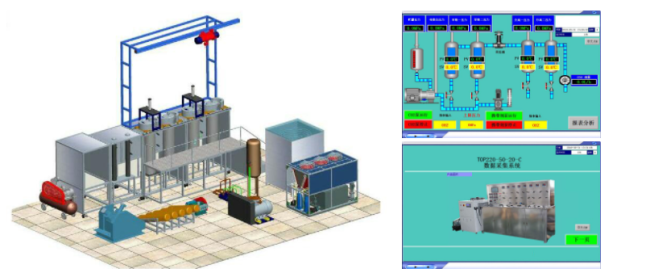

PLC display Data output
Name: co2 supercritical extraction equipment Brand: TOPTION Original: CHINA 1)Intermittent or continuous work,co-solvent can be added if request. 2)CO2 can be recovered and reused. 3)Pressure and temperature can be designed according to demand. 4) Can custom made into PLC or computer control.
