TP-S15 Mini Spray Dryer Milk Spray Dryer Machine ISO CE Certification
Price:
Negotiation
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TOPTION
Product Description
Products Description
spray dryer is a kind of continuous atmospheric dryer.Use pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplet, make these fog droplet contact with the hot air in the drying chamber and instantaneous drying.
|
Model
|
TP-S15
|
TP-S30
|
TP-S50
|
TP-S100
|
|||
|
Max capacity
|
1500-2000 ml/h
|
3000 ml/h
|
5000 ml/h
|
10000 ml/h
|
|||
|
Temperature range of inlet air
|
40℃ ~ 300℃
|
30℃ ~ 300℃
|
140°C ~ 300°C
|
50°C ~ 300°C
|
|||
|
Temperature range of outlet air
|
40℃ ~ 140℃
|
30℃ ~ 140℃
|
80°C ~ 90°C
|
30°C ~ 150°C
|
|||
|
Spray system
|
Two-fluid nozzle
|
Centrifugal nozzle
|
Centrifugal nozzle
|
Centrifugal nozzle
|
|||
|
Precision of temp
|
±1 ℃
|
|
|
|
|||
|
Dryer time
|
1.0 ~ 1.5 S
|
|
|
|
|||
|
Speed of squirt pump
|
50 ~ 2000
|
3000
|
5000
|
10000
|
|||
|
Nozzle size
|
0.5/0.7/0.75/1.0/1.5/2.0mm
|
|
|
|
|||
|
Spray direction
|
Downwards co-current
|
|
|
|
|||

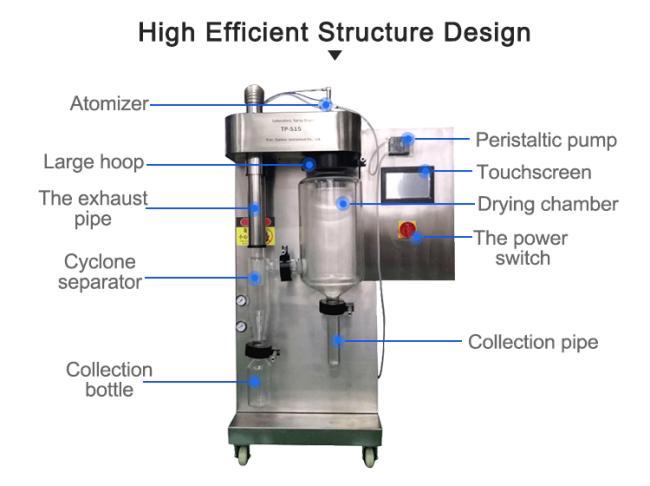

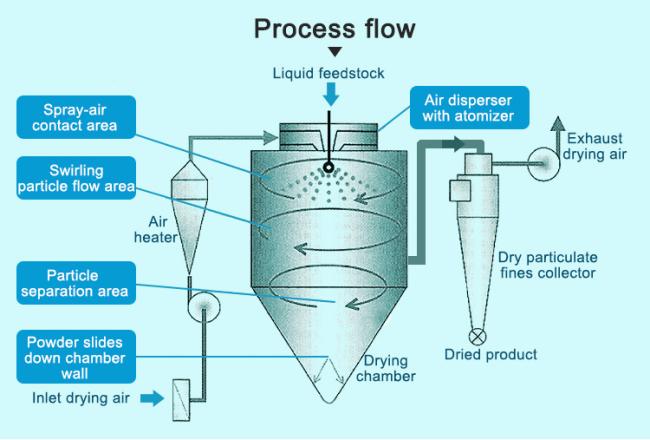

Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
Application
Application:
Spray dryer can be used in a wide range where the production of a free-flowing powder sample is required. This technique has processed materials in the following areas successfully:
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials,Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs,Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Most solutions and supernsions can be spray dried providing that the resulting product has the characteristics of material.
It is popular in fields of Food, biology, material, pharmacy, university, and R&D institute, etc. especially for processing
temperature-sensitive material , for e.g., powder, because material only touch air for a brief moment so that heat couldn't destroy the component of material.
Spray dryer can be used in a wide range where the production of a free-flowing powder sample is required. This technique has processed materials in the following areas successfully:
Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials,Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs,Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Most solutions and supernsions can be spray dried providing that the resulting product has the characteristics of material.
It is popular in fields of Food, biology, material, pharmacy, university, and R&D institute, etc. especially for processing
temperature-sensitive material , for e.g., powder, because material only touch air for a brief moment so that heat couldn't destroy the component of material.
