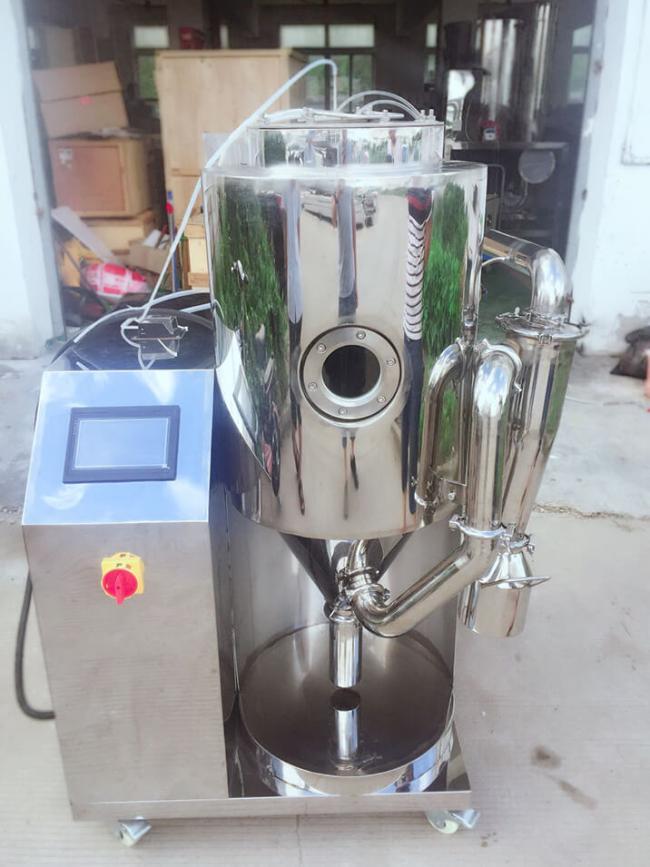

pilot type Milk Drying Equipment Centrifugal Spray Dryer 3000ml/H
Milk Drying Equipment Centrifugal Spray Dryer
This pilot type centrifugal spray dryer drying capacity is 3000ml/h, powder spray drying time is 1.0 ~ 1.5s, with PLC automatic control system, your spray drying process could be more efficient. Best choose for milk powder drying, coffice spray drying, egg spray drying and fruit juice spray drying,etc.
Technical parameters for this type milk spray drying machine:
|
Pilot Spray Dryer |
Unit |
TP-S15 |
TP-S30 |
TP-S30C |
|
Max capacity |
ml/h |
1500-2000 |
3000 |
3000 |
|
Temperature range of inlet air |
℃ |
40℃ ~ 300℃ |
30℃ ~ 300℃ |
30℃ ~ 300℃ |
|
Temperature range of outlet air |
℃ |
40℃ ~ 140℃ |
30℃ ~ 140℃ |
30℃ ~ 140℃ |
|
Spray system |
/ |
Two-fluid nozzle |
Two-fluid nozzle |
Centrifugal nozzle |
|
Precision of temp |
℃ |
±1 |
||
|
Dryer time |
S |
1.0 ~ 1.5 |
||
|
Speed of squirt pump |
ml/h |
50 ~ 2000 |
3000 |
3000 |
|
Nozzle size |
mm |
0.5/0.7/0.75/1.0/1.5/2.0 |
|
|
|
Spray direction |
/ |
Downwards co-current |
||
|
Heater Power |
/ |
3500W |
4500W |
4500W |
|
Total power |
/ |
4500W 220V |
5500W 220V |
5500W 220V |
|
Heat source |
/ |
Electric |
||
|
Air compressor |
/ |
Built-in oil-free air compressor |
||
|
Dried powder restoring rate |
% |
≥92 (Maltodextrin>92) |
||
|
Dimension |
mm |
940*850*1500 |
1700*1100*150 |
1700*1100*150 |
|
Maximum moisture evaporation |
Kg/h |
2 |
3 |
3 |
Welcome inquire at any time, thank you.
