Medium Freeze Drying Machine / Pilot Type Vacuum Freeze Dryer
Lab Household Use Small Mini Vacuum Freeze Dryer Lyophilizer Equipment
TOPT-10 Freezing dryer is a new desktop Freezing dryer device, suit for freeze-drying experiment in laboratory and a small amount production.
The series include: common type, capping type, branch manifold common type, branch manifold capping type.

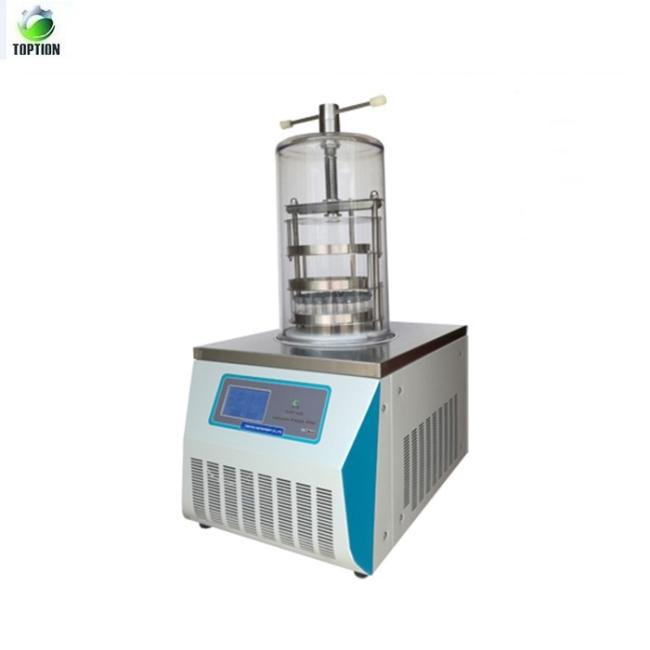

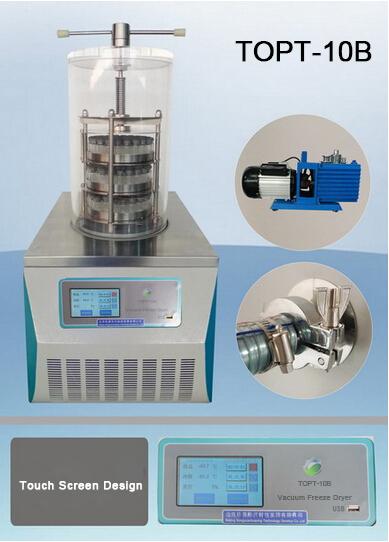

TOPT-10B Top-press type Vacuum Freeze Dryer:
|
Name and Model
|
TOPT-10B Gland type Vacuum Freeze Dryer
|
|
Freeze Drying Area
|
0.08 m2
|
|
Cold trap temperature
|
-55 (optional -80) ℃
|
|
Vacuum
|
<10 Pa
|
|
Water-capture capacity
|
3~4 Kg/24h
|
|
Material tray
|
Ф180 mm
|
|
Tray number
|
3 layer
|
|
Whole power
|
970 W
|
|
Main frame size
|
425*615*(370+445) mm
|
|
Main frame weight
|
41Kg
|
|
Liquid capacity
|
0.8L
|
Characteristics:
1. Green environment-friendly product to conform to international standard

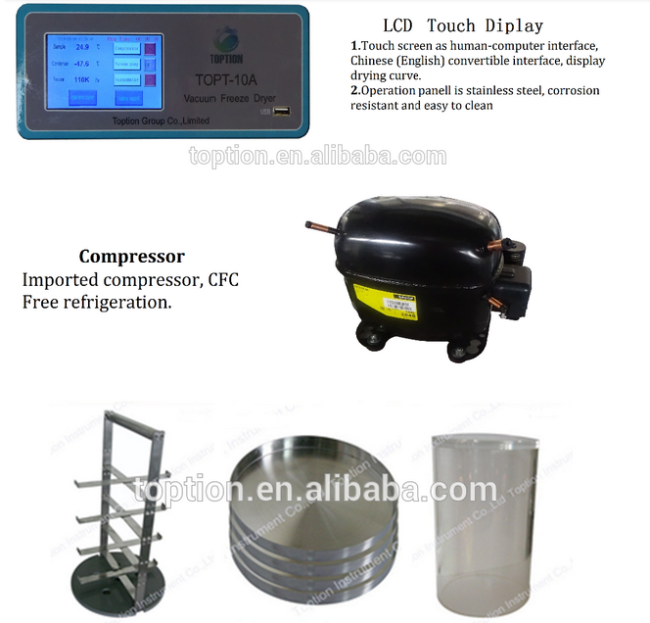

2. LCD display, Chinese, and English interface, drying curve being displayed;
3. the mouth of cold trap is big, no internal coil, having the function of precooling the samples
4. imported compressor with big capacity of refrigerating, and noise small;
5. Cold trap and Operation panel area all corrosion-resistant stainless steel, bright and
6. The organic glass cover can help you observe the whole freeze drying process.
7. Stainless steel sample shelf, the space of common sample tray can be adjusted;
8. Electric defrost function

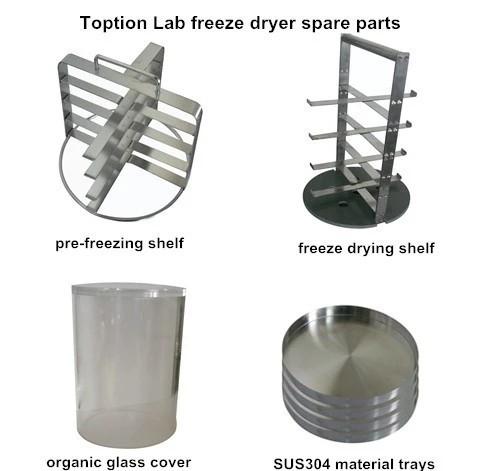

Material Tray :
Top-press: thal about 900e diameter of material-dry tray is 180mm, three layers; install the materiml(material thickness 10mm), or placed 135 bottles with diameter of 22mm.
Freeze dry time: about 24h (material thickness 10 mm)
Time of freeze-dring: when the depth of material under 10mm,the time of drying in general is 24 h or so.
Toption Instrument Instrument Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, high-pressure reactor, photochemical reactor, ultrasonic dispenser/homogenizer, freeze dryer(lyophilizer), spray dryer and so on.
1. TOPTION Instruments provides ONE YEAR WARRANTY for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. TOPTION Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. How can I pay?
Dear customer, we accept many payment term, such as T/T, Alibaba Trade Assurance...
3. When I receive it after pay?
Dear customer, normal models can be delivered with 7-9 days, please contact us to check transport time to your address.
4. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
5. Is will be broken during transport?
Dear customer, please do not worry, we do strong standard export package.
6. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
7. What should I do if some parts broken?
Dear customer, please do not worry, we have 12 months warranty except wear parts. You can also buy parts from us after 12 months.
