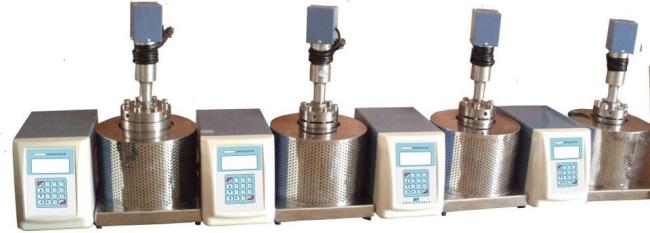

Laboratory Ultrasonic Cavitation Reactor High Pressure Ultrasonic Homogenizer

This type ultrasonic cavitation reactor, high pressure ultrasonic homogenizer is often used in laboratory extraction and chemistry reaction research, which has solve amplitude transformer and reactor sealing problems.

High pressure ultrasonic reactor could equip various types chemical reactors’ accessories under high temperature, achieve reaction system gas separation and vapour phase condensation & reflux.

So could use ultrasonic disperse, crush, and excitation etc multiple effect to break the solvent structure of chemical reaction material in reactor, improve reaction activity, disperse and crush particles, reduce its radius.

According to actual research operation, this type ultrasonic cavitation reactor could accelerate reaction effect when powder substance participate the reaction, emulsion reaction and homogeneous reaction, etc.

So this advanced practical type ultrasonic reactor could accelerate chemical reaction.

• Mechanical stirring reactor lid is available, could achieve the exchange of mechanical stirring and energy-gathered ultrasonic, or you also could install mechanical stirring at the top of reactor, install energy-gathered ultrasonic at the bottom.



  Customization info: Special capacity, special material, special pressure and special temperature could customize, max pressure could reach 40Mpa. Max temperature could reach 400℃, low temperature could reach -50℃, max ultrasonic power could customize 100KW, max capacity could customize 1000L.



• Model	Pressure (Mpa)	Temperature ℃	Capacity ml	Ultrasonic power (w)
  TUHP-150ml	-0.1-12.5	RT-300	150ml	10-500w continuously adjustable
  TUHP-250ml	-0.1-12.5	RT-300	250ml	20-1000w continuously adjustable
  TUHP-500ml	-0.1-12.5	RT-300	500ml	100-1200w continuously adjustable
  TUHP-750ml	-0.1-12.5	RT-300	750ml	200-1500w continuously adjustable
  TUHP-1L	-0.1-12.5	RT-300	1000ml	300-1800w continuously adjustable
  TUHP-2L	-0.1-12.5	RT-300	2000ml	400-3000w continuously adjustable
  TUHP-5L	-0.1-12.5	RT-300	5000ml	500-3500w continuously adjustable
  TUHP-10L	-0.1-12.5	RT-300	10000ml	800-5000w continuously adjustable
