multifunction Portable Handheld Ultrasonic Cell Crusher UP-250 / UP-400

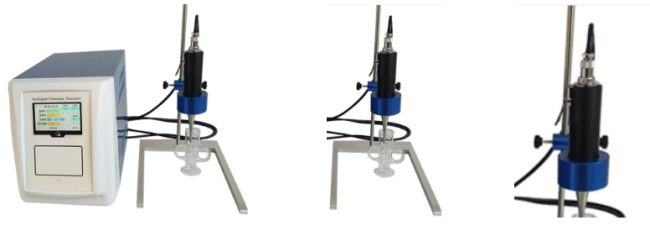

UP-250 / UP-400 Handheld Ultrasonic Cell Crusher

TOPTION UP series portable ultrasonic cell crushers are multifunction and multipurpose instruments which are using strong ultrasonic to produce cavitation effect in liquid. They can crush animal cells, plant cells, virus cells, and also used for emulsification, separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reaction etc.. Ultrasonic cell crushers are well used in below research fields: Biochemistry, Microbiology, Pharmaceutical Chemistry, Surface Chemistry, Physics, Zoology. These two models are suitable for quantity samples but less volume, and can obtain the result quickly.

• Technology Parameters Of UP-250 / UP-400 Handheld Ultrasonic Cell Crusher

• Model	UP-250	UP-400
  Frequency (KHz)	20-30KHz Automatic tracking	20-30KHz Automatic tracking
  Power(W)	2.5-250W adjustable	5-400W adjustable
  Horn (mm)	Φ3 or Φ5	Φ6
  Optional Horn (mm)	Φ2,Φ3,Φ6	Φ2,Φ3,Φ5,Φ8
  Crush Capacity (ml)	0.1-150	0.1-300
  Temperature alarm range	0-100 ℃
  Instrument protection function	Over-temperature
  Foot switch	Optional
  Display	4.3 inch TFT

•



  • • Key Features UP-250 / UP-400 Handheld Ultrasonic Cell Crusher

• 1. Ultrasound probe is imported titanium alloy material, durable .



  2. Energy-efficient transducer to ensure a strong effect.



  3. Amplitude automatic adjustment, the load situation of the different amplitude consistent.



  4. Working hours, ultrasound can set the interval.



  5. Microcomputer control, ultrasonic power continuously adjustable.



  6. Integrated sample temperature control to prevent overheating.



  7. Speakers are separated by a special sound insulation, sound insulation.









  • Application Of UP-250 / UP-400 Handheld Ultrasonic Cell Crusher

    1. Cell Crushing/Disruption	2. Protein, Nucleic Aci Extraction
    3. DNA/RNA Clipping	4. Nano Technology Research
    5.Chromatin the Immune Settling Technology	6.Sample Homogenization, Emulsification
    7. Other Samples Handling
