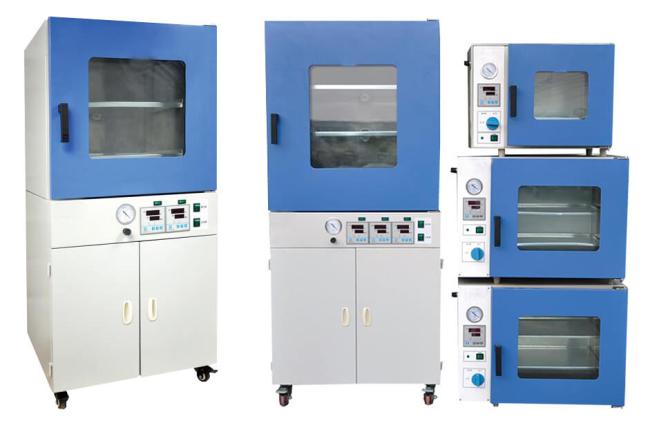

Lab Digital Forced Air Convection Drying Oven Chamber With LCD Temperature Display

DZF type vacuum drying oven with LCD temperature display, is a kind of lab digital forced air convection dying oven, as it is specially suitable for dry heat sensitive / easy oxidation / easy resolve material and fast & efficient drying for complex components objects.

So this type vacuum drying oven is popular welcomed in biochemistry, chemical pharmaceutical, medical and health, agricultural scientific research and environment protection etc research and application fields.

1.Vacuum environment greatly reduce the boiling point of liquid which need to evict, so vacuum drying can be easily applied to the thermal sensitive material.

2.For difficult drying samples such as powder or granulate samples, using vacuum drying method could efficient shorten drying time.

3.Various complex structure mechanical parts or other porous samples, using vacuum drying method after the parts been cleaning, then there’s no any participation substance on the parts after completely drying.

4.Operating more safe-under vacuum and sluggishness conditions, completely eliminate any explosion possibilities of oxides meeting thermal explosion.

5.Compared with common drying which rely on air circulation, Vacuum drying could let the powder samples not be air blowing or moving.

• • If you choose vacuum drying oven for powder drying, baking, the disinfection & sterilization of all kinds glass containers,you could get below benefits:

• Main features of digital vacuum drying oven:

  1.Heating element is on the oven’s internal shelf, compared with the traditional vacuum drying oven, heating time shorten 50% (except 6050, 6051).



  2.Large screen LCD display, many sets of data display in one screen, menu type operation interface, simple and understand easily, conveniently operating.



  3.Adapt aluminum shelf with special stamping process, high temperature oxidation resistance & thermal conductivity is fast which could achieve min heat lost.



  4.Cuboid studio which could achieve the max effective volume, microcomputer temperature controller let temp control is accurate and reliable.



  5.Stalinite, bulletproff double layers glass door, which could observe the object in the oven clearly, could input inert gases to the oven inner.



  6.The tightness degree of closing the door could be adjusted by the user, overall molding silicon rubber door seal ring ensure the high vacuum degree in the oven.



  7.The oven inner use stainless steel material, the oven is made of high quality cold-roll steel sheet, surface electrostatic plastic spraying.



  8.Storage,heating,testing and drying all are in no oxygen or filled with inert gases environment, so does not lead to oxidation.



  Technical parameters of Lab Digital Forced Air Convection Drying Oven Chamber Vacuum Drying Oven:



• Items	Temperature control range	Input power	Studio dimension W×D×H(mm)	Boundary dimension W×D×H(mm)	Loading bracket (Standard configuration)	Inner material
  DZF-6021	RT+10~200℃	450W	300×300×275	615×470×470	Inner heating, one shelf could put in or drag out freely.	Cold-rolled sheet
  DZF-6020	RT+10~250℃					Stainless steel
  DZF-6030	RT+10~250℃	450W	320×320×300	635×490×495
  DZF-6030A Professional for chemical industry	50℃~250℃
  DZF-6030B professional for biological industry	50℃~250℃
  DZF-6050	RT+10~250℃	1200W	415×370×345	830×640×540	External heating, three halftones could put in or drag out freely.
  DZF-6050B professional for biological industry	50℃～65℃
  DZF-6051	RT+10~200℃					Cold-rolled sheet
  DZF-6052	Standard temp
  DZF-6090	RT+10~250℃	1400W	450×450×450	615×660×1440	Inner heating, two shelf could put in or drag out freely.	Stainless steel
  DZF-6210	RT+10~250℃	2200W	560×600×640	720×805×1680	Inner heating, three shelf could put in or drag out freely.
  DZF-6250	50℃～250℃	4000W	700×600×600	1030×750×890	Three shelfs
