Vane Type Chemical Rotary Vane Vacuum Pump With Anti Return Oil Valve

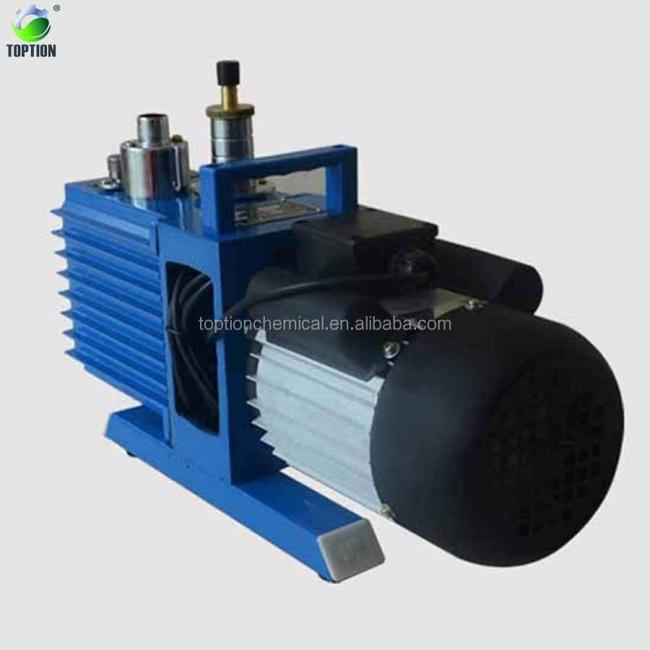

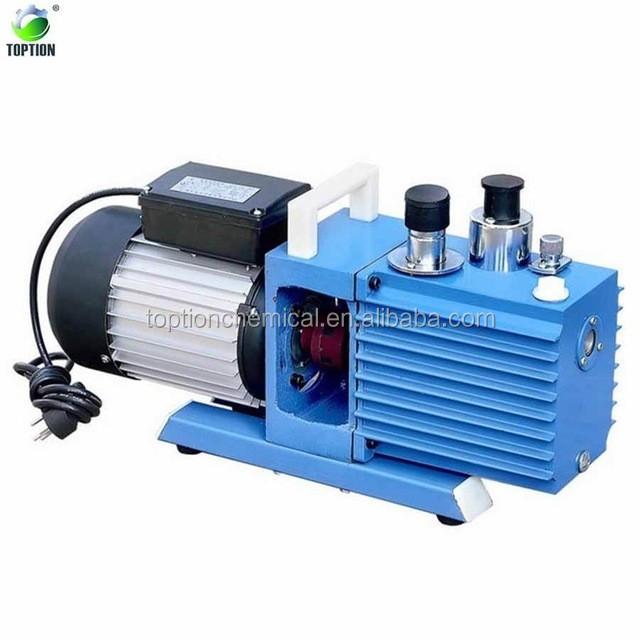

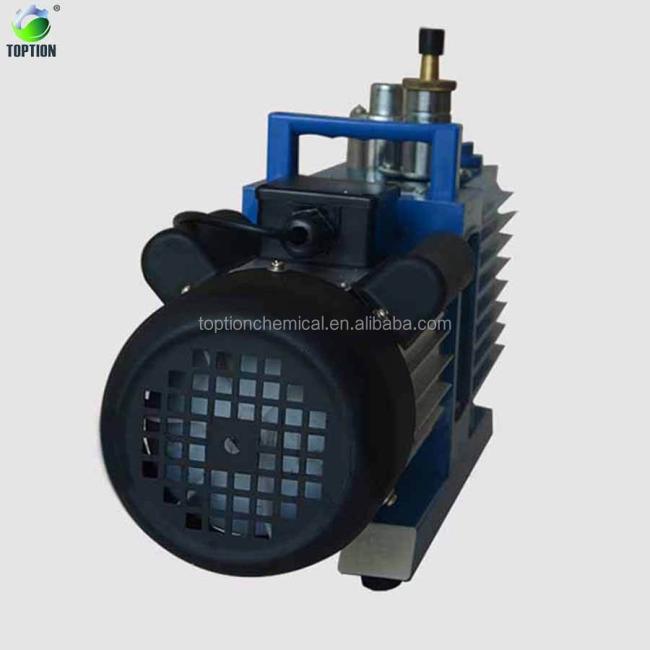

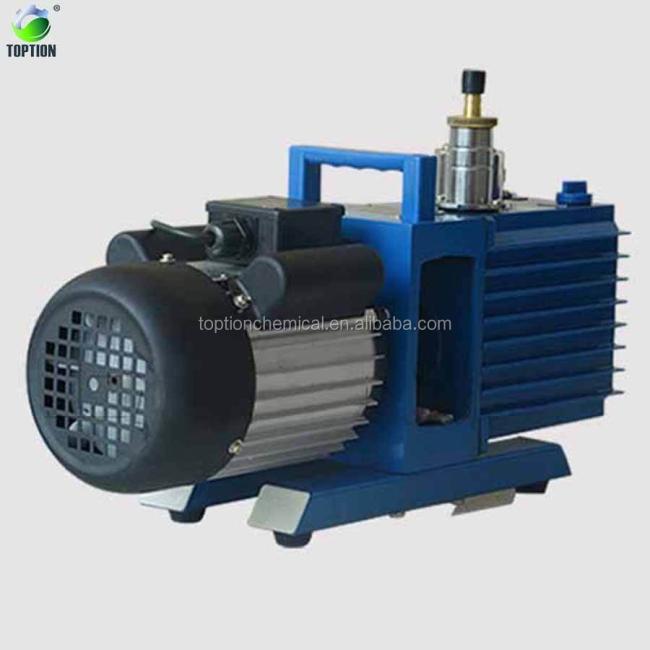

Hot sale 2XZ-2 Lab Rotary Vane Oil Vacuum Pump 2L/S
2XZ series vane type vacuum pump is the basic equipment used for exhaust gas from sealing container and achieve vacuum. It can be used alone, or as the backing pump and drainage pump for all kinds of vacuum system.
Vauum pump is widely used in medical, scientific research, chemical industry, laboratories, plastic, electronic industry, etc, and electric vacuum device manufacturing, light bulbs, vacuum flask, vacuum welding, instruments & meters and refrigeration equipment, printing and packaging machinery, etc.
Technical parameters of rotary vane vacuum pump:
|
Type
|
2XZ-1
|
2XZ-2
|
2XZ-4
|
|
Pumping speed(L/s)
|
1
|
2
|
4
|
|
Ultimate pressure (Pa)
|
6×10ˉ²
|
6×10ˉ²
|
6×10ˉ²
|
|
speed(r/min)
|
1400
|
1400
|
1400
|
|
Motor power(Kw)
|
0.25
|
0.37
|
0.55
|
|
voltage(v)
|
220
|
220/380
|
220/380
|
|
weight(kg)
|
16
|
20
|
24
|
Plug: Euro Plug, UK Plug, AU Plug (Optional, Please note which one you need.)

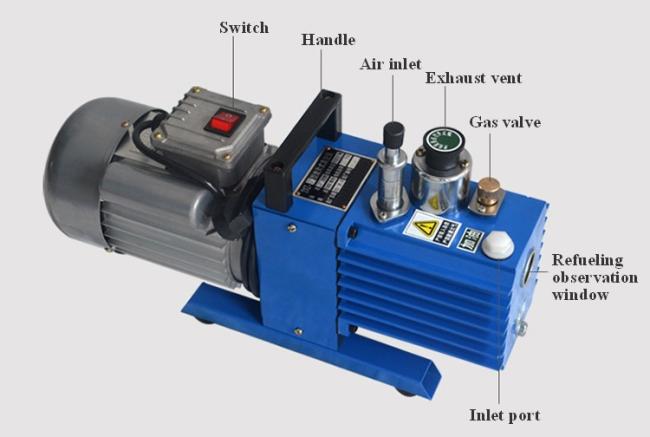

Main features of rotary vane vacuum pump:
1. Small size, light weight, low noise
2. Equipped with gas ballast valve, can extract small amount of water vapor
3. Equipped with anti-return oil valve, start convenient
Usage and application:
1. Pump working environment: when temperature is 5 ℃ and 90% , should open gas ballast valve. 90% and when the inlet pressure is less than
10 torr, allowed long-term continuous operation, when been pumped gas relative humidity is more than 90%, should open gas ballast valve.
2. Pump inlet continuous open air operation, must not exceed 3 minutes.
3. Pump is not suitable for pumping the gas which is corrosive to metal, have chemical reactions with pump oil, containing dust , and high oxygen and explosive.
4. This type vacuum pump is not suitable used as compression pump and delivery pump.
TOPTION is professional lab solution provider,and all devoted to provide the best solutions & products for global customers, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.
TOPTION has passed the “ISO9001:2008 Quality Management System”certification and most of products have passed CE certification,the quality can be assured.
