CE Customized Lab Refrigerated Circulator -30C Ultra Low Temperature Circulator
Price:
Negotiation
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TOPTION
Product Description

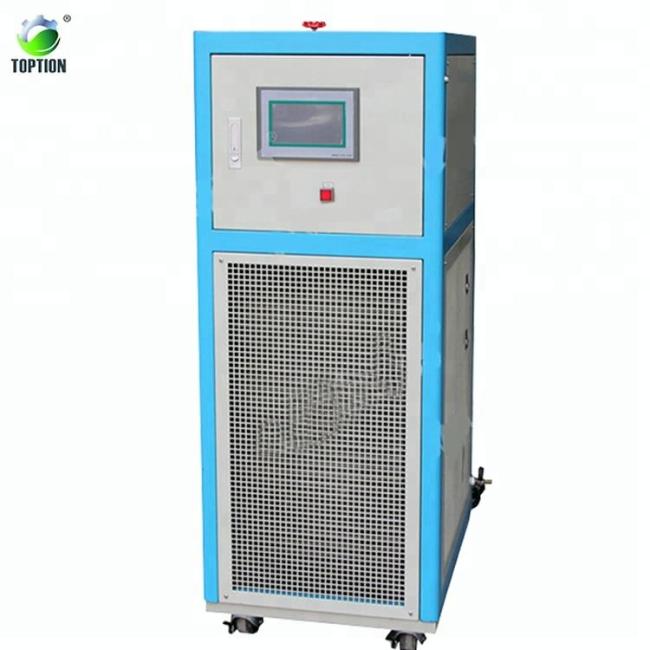

Product display
CE customized Factory Price Lab Refrigerated Circulator -30C Ultra-low Temperature Circulator
Product details
|
Model
|
|
LX-0250
|
LX-0400
|
LX-0700
|
LX-1000
|
LX-1450
|
LX-2000
|
||||||
|
Temperature range
|
|
-15 to 30℃
|
-25 to 30℃
|
|
|
|
|
||||||
|
Cooling capacity
|
0℃
|
1.5Kw
|
2.4Kw
|
4Kw
|
7.5Kw
|
10Kw
|
16.5Kw
|
||||||
|
|
-10℃
|
1Kw
|
1.5Kw
|
2.7Kw
|
6.3Kw
|
8Kw
|
12Kw
|
||||||
|
|
-20℃
|
0.55Kw
|
0.8Kw
|
1.5Kw
|
3.5Kw
|
5Kw
|
7.3Kw
|
||||||
|
Circulation pump
|
|
Max 20L/min 1.5bar
|
|
Max 35L/min 1.5bar
|
|
Max 75L/min 1.5bar
|
|
||||||
|
Liquid storage
|
|
15L
|
17L
|
25L
|
25L
|
40L
|
80L
|
||||||
|
Refrigarants
|
|
R-404A
|
|
|
|
|
|
||||||
|
Connection size
|
|
DN15
|
DN20
|
|
|
DN25
|
|
||||||
|
Product size
|
air-cooled
|
400*600*1150mm
|
|
500*680*1350mm
|
|
650*700*1850mm
|
750*750*1800mm
|
||||||
|
Weight
|
|
115kg
|
145kg
|
180kg
|
225kg
|
290kg
|
340kg
|
||||||
1.Saving resources;closed cycle pipeline design highly prevent circulating water pollution and extend the lifetime of circulation liquid. 2.Multi-safety protection,more reliable operation. 3.Brand compressor,cascade refrigeration colling technologies. 4.Human design,more convenient and flexible. 5.Efficient two-condensate system. 6.Computer-cascade temperature controller,temperature figures display,adjustable unit is 0.1℃,temperature range is 125℃~-20℃,PT100 temperature sensor. 7.Use of cold technology,can guarantee the stability of temeprature at low temperature. 8.Can set the temperature difference of compressor on/off. 9.Monitoring the ambient temperature,prevent temperature to be higher in the running system. 10.A variety of fault alarm (overtemperature alarm, sensor alarm, high pressure alarm, compressor overheat alarm, liquid level alarm). 11.Power on delay protection,three-level cascade system protectors. 12.All parts are safety grounding. 13.Adopt full closed circulation design,no water vapor at low temperature and ensure the purity of cooling medium,in case of ice crystals,provide a long timelife of heat transfer liquid. 14.High-performance circulating pump, can guarantee 24 hours continuously running a day. 15.Use plate cool-heat-exchanger,heat transfer efficiency is provided.
