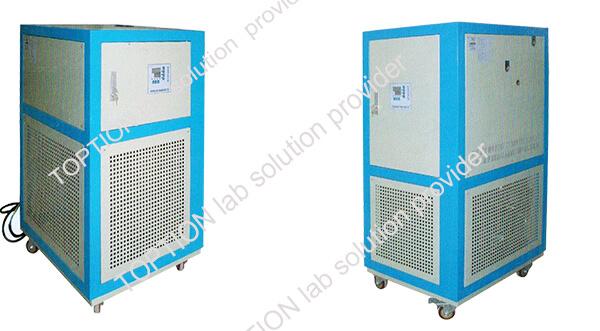

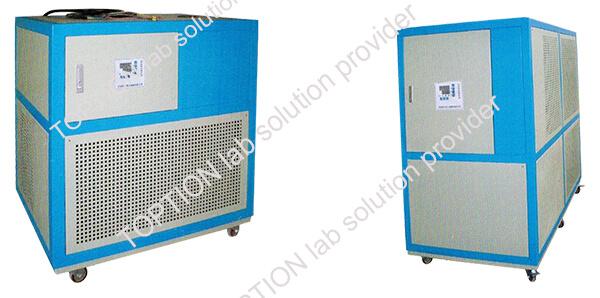

LT Low Temperature Circulating Chiller Humanization Design
Description
1. Saving water, you could use water and ethylene glycol mixture liquid to do cooling circulation, closed circulation line design, avoid the pollution of circulating water, make the using time of circulating water be more longer.
6. Computer cascade type temperature controller, temperature digital display, adjust unit 0.1℃, PT100 temperature sensor, wide temperature range: -125℃ ~ -20℃.
7. Adopt cascade super cooling refrigeration technology, guarantee the stability of temperature under low temp. condition.
8. Start up or shut down compressor temperature difference could be set.
9. Environment temperature monitoring function, avoid over high temperature during system operating.
10. A variety of fault alarm: over-temperature alarm, sensor alarm, high pressure alarm, compressor over high temp. alarm, liquid position alarm.
11. Starting up delay protection, three levels cascade system protector.
12. All parts of low temperature cooling circulator safe connect ground.
13. Use totally closed design, there's no absorption of water vapor when under low temperature condition, make sure the purity of cold heat conduction medium, avoid ice crystal, provide heat conductive liquid working life.
14. High-performance circulating pump, could gurantee low temperature cooling circulator 24h/day operation continuously.
15. Adopt plate type cooling and heating exchanger, provide heat exchange efficiency.
| Model | LT-4018 | LT-4040 | LT-4062 | LT-4090 | LT-40A1 | LT-40A2 | |
| Temperature range ℃ | -40℃～30℃ | -40℃～30℃ | -40℃～30℃ | -40℃～30℃ | -40℃～30℃ | -40℃～30℃ | |
| Temp. control | ASET Multi-function controller | ||||||
| Temp. control choose | Heat conduction medium outlet temperature control | ||||||
| Communication protocol | MODBUS RTU protocol RS 485 interface | ||||||
| Temperature feedback | Heat-conducting medium: PT100 | ||||||
| Cooling capacity | -10℃ | 1.5kW | 3.2kW | 4.5kW | 6.2kW | 8.3kW | 12kW |
| -20℃ | 1.2kW | 2.7kW | 3.8kW | 5.5kW | 7kW | 10kW | |
| -35℃ | 0.4kW | 0.75kW | 1.15kW | 1.5kW | 2.1kW | 3kW | |
| Circulation pump flow and pressure |
Max20L/min 0.7BAR |
Max20L/min 0.7BAR |
Max35L/min 1BAR |
Max35L/min 1BAR |
Max75L/min 1BAR |
Max75L/min 1BAR |
|
| Liquid storage tank volume | 15L | 20L | 25L | 30L | 35L | 45L | |
| Compressor |
Frence Taikang |
Emerson copeland |
Emerson copeland |
Emerson copeland |
Emerson copeland |
Emerson copeland |
|
| Evaporator | Plate type heat exchanger | ||||||
| Operating Pannel | Display set temperature and measure temperature, touch key operation input temperature. | ||||||
| Safety protection |
Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, |
||||||
| liquid low level protection, high temperature protection and temperature fault protection. | |||||||
| Refrigerant | R-404A | ||||||
| Connection size | DN-15 | DN20 | DN20 | DN20 | DN20 | DN-20 | |
| Dimension | 400*600*1050 | 400*680*1350 | 550*680*1450 | 550*680*1550 | 620*680*1650 | 750*750*1750 | |
| (air cooling) | |||||||
| Weight | 145kg | 185kg | 230kg | 275kg | 340kg | 380kg | |
| (air cooling) | |||||||
| Power source | AC220V 50HZ | AC380V 50HZ | AC380V50HZ | AC380V 50HZ | AC380V 50HZ | AC380V50HZ | |
| 2.2kW (max) | 3.5kW (max) | 4.5kW (max) | 6kW (max) | 7kW (max) | 9kW (max) | ||
| Case material | Cold-rolled sheet spraying plastics | ||||||
| Optional | 7-inch color touch screen, temperature curve record, data output as excel type. | ||||||
| Optional | SUS304 | ||||||
| Optional | ≦10bar pressure, circulating pump | ||||||
| Optional power source | 220V 60HZ three-phase,440V～480V 60HZ three-phase | ||||||
| Note | Larger liquid storage tank volume could be customized based on your actual needs. | ||||||
1. TOPTION is a registered brand, which is well known in global lab instruments trade, ISO9001: 2008 and CE certificated lab solution provider.
2. Commits to become the world's most competitive lab solution provider.
3. Has been widely recognized and won reputation for excellent quality and professional customization among customers in 30 more countries.
4. Brand interpretation: SAFE - ACCURATE - EFFICIENT. Choose TOPTION, choose guarantee and relief.
5. TOPTION factory was founded with the total area of over 4,000 ㎡, is able to guarantee TOPTION quality and safe & fast delivery to buyers. (Genuine products assured from factory direct sale).
6. TOPTION is ISO 9001:2008 certified manufacturer:
1) TOPTION has passed ISO9001:2008 QMS. All raw materials and accessory parts are selected and tested strictly,which ensures product's durability and safety from the beginning of production.
2) Key parts production is guaranteed by TOPTION production equipments and technique, which ensure production precision and interchangeability.
7. CE certificate - TOPTION instruments have got CE certification, and have been exported to European countries.
8. Strictly testing before shipping:
Products pass various inspections before package, which include: test of electrical voltage durability, glass inner stress, temp. control wave accuracy, operation noise, sealing performance and safety protection, etc.
