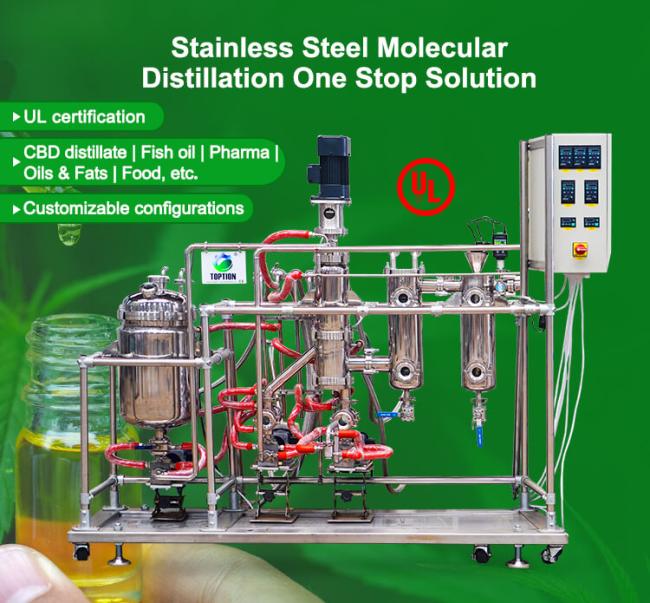

Laboratory Use Short Path Molecular Distillation Equipment Single Stage

Name: Laboratory Use Short Path Molecular Distillation Equipment Single Stage
Brand: TOPTION INSTRUMENT CO., LTD.

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: Negotiable

Brand: TOPTION

Product Description

TOPTION this type Single Stage Short Path Distillation Plant Is For Laboratory Use:

1. Process development.

2. Feasibility studies.

3. Continuous distillation of smaller quantities.

4. For heat sensitive chemical, pharmaceutical and food products.

The achievable operating pressure may be as low as 0.001 mbar in the short path evaporator. (Depending on product and process).

Technical parameters of the molecular distillation unit:

Type of molecular distillation	MDS-10CE short path molecular distillation
Maximum distillation temperature	300 °C
Minimal achievable operating pressure (depending on product)	< 0.001mbar with rotary vane pump and oil diffusion vacuum pump.
Throughput (depending on product)	5 – 12 kg/h
Evaporation surface	0.1 m²
Surface of internal condenser	0.15 m²
Surface of external condenser	0.15 m²
Wiped film system	Scraper type film scraping rotor
Maximum viscosity of product can be processed	Under operating temperature:5000 centipoise.
