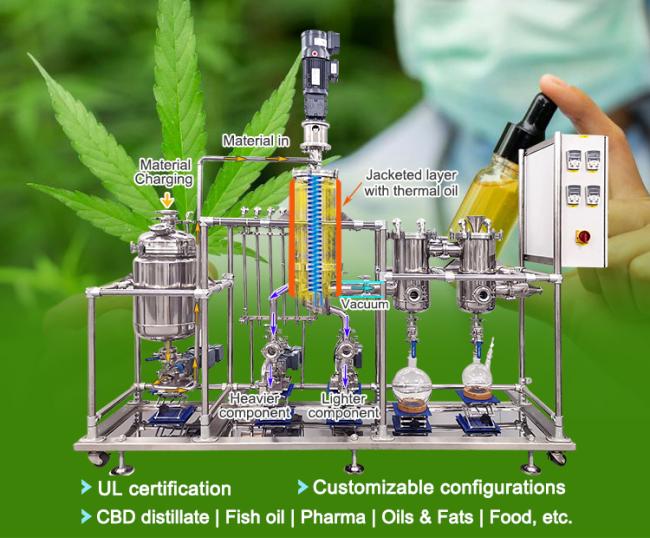

Oil Distiller Short Path Molecular Distillation Equipment Fully Jacketed Design
Price:
Negotiation
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
TOPTION
Product Description
Product Description
Short path (molecular) distillation system is considered as the safest mode of separation and to purify the thermally unstable molecules & related compounds with low volatility & elevated boiling point. In the high vacuum environment, molecular distillation has the advantages of low distillation temperature, short heating time and rapid separation.
|
|
MDS-10CE
|
MDS-20CE
|
MDS-30CE
|
MDS-50CE
|
|
Feeding Rates(L/h)
|
3-15 L/h
|
5L-25L/H
|
5L-30L/H
|
10L-50L/H
|
|
Throughput
(kg/h) |
5 – 12 kg/h
|
5 – 25 kg/h
|
5 – 30 kg/h
|
10 – 50 kg/h
|
|
Evaporation Area (㎡)
|
0.1 m²
|
0.2㎡
|
0.3㎡
|
0.5㎡
|
|
Diameter
|
5 inch
|
7 inch
|
8 inch
|
12 inch
|
|
Scraper Motor Power (w)
|
370W
|
370W
|
550W
|
750W
|
|
Speed Regulation Mode
|
Electronic speed regulation
|
Electronic speed regulation
|
Electronic speed regulation
|
Electronic speed regulation
|
|
Max.Scraping Speed (rmp)
|
200～1000rpm/min
|
200～1000rpm/min
|
450
|
Frequency control of motor speed
|
|
Jacket Volume(L)
|
1.1
|
7.1
|
17.3
|
|
|
Volume(L)
|
0.23
|
1.24
|
3.90
|
|
|
Heat Exchanging Area (㎡)
|
0.40
|
0.60
|
1.00
|
1.70
|
|
Volume(L)
|
20L
|
20L
|
30L
|
50L
|
|
Jacket Volume(L)
|
10L
|
14L
|
20L
|
|
|
Standard Feeding Rate (L/h)
|
3L～15L/H
|
5L～25L/H
|
5L～30L/H
|
10L～50L/H
|
|
Drive Motor Power (w)
|
200W
|
200W
|
200W
|
1500W
|
|
Type
|
0.4㎡chiller cooling cold trap
|
0.6㎡chiller cooling cold trap
|
1㎡chiller cooling cold trap
|
1㎡chiller cooling cold trap
|

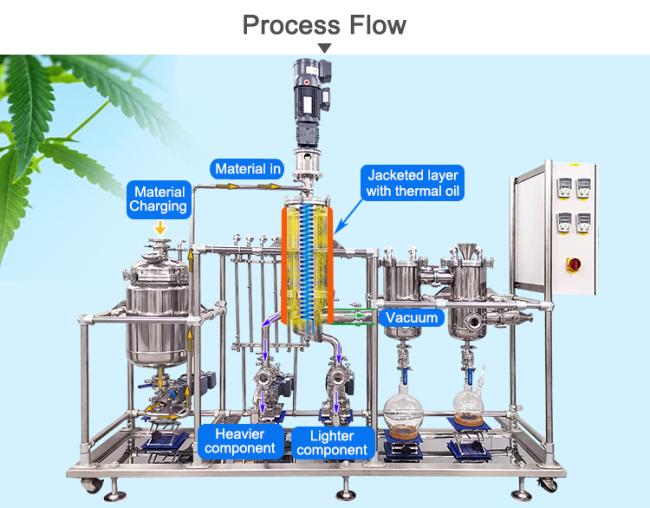

Process flow
1. The control system of the vacuum unit reaches the required vacuum. 2. The temperature control unit control system reaches the required temperature. 3. Material feeds to the evaporation tower through gear pump. 4. The scraper in the evaporation tower rotates quickly to allow the material to form a thin film. The material liquid volatilizes under high vacuum and heating conditions. The molecular free path of light components is larger and is captured by the inner condenser, and the molecular free path of heavy components is smaller and falls back to the wall of the evaporation tower. 5. The light component flows down the inner condenser and is pumped out of the system by a gear pump or pumped to the next short-range. The heavy component flows down the wall of the evaporation tower and is pumped out of the system by a gear pump or pumped to the next short-range. 6. The ultralight components and residual solvents that have not been trapped by the inner condenser are trapped in the outer condenser and cold trap.
Function
Application
Purchasing process
Feedback
Certificate and exhibition
ISO | CE | SGS | BV manufacturer certification 1. Professional customize based on more than 15 years manufacturing experience. 2. ISO | CE | SGS | BA certification reliable quality guarantee. 3. Factory directly sale for competitive price, help you save cost. 4. Fast delivery within 7days of hotsale types. 5. Professional service team, provice 24h 7days online service.
Company and factory
