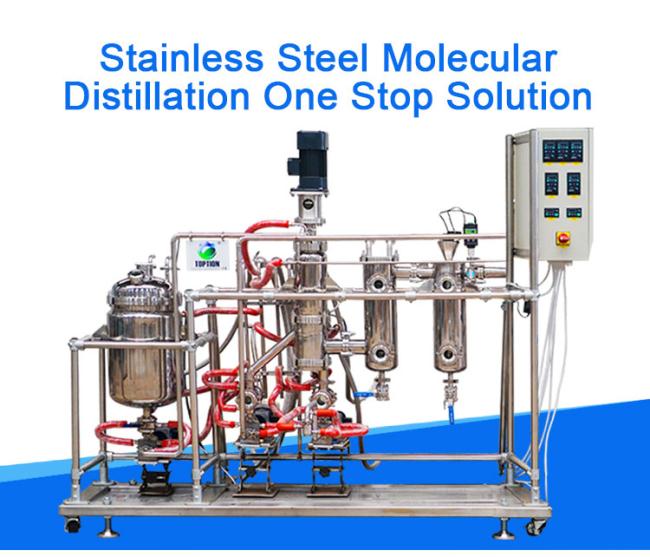

Chemical Essential Oil Distillation Molecular Distillation Machine 316L
MDS-10CE Essential Oil Distillation Chemical Molecular Distillation Machine 3~15L/h
Technical parameters of 0.1 square meter molecular short path distillation:
|
Molecular Distillation MDS-10CE (5inch) |
Storage tank for crude oil |
15L storage tank with three layer, inside layer for heating, outside layer for insulation purpose; With filter screen inside With 2pcs view windows at the top With insulated ball valve at the bottom |
|
Feeding method |
high precision gear pump, 200W |
|
|
3~6L/h flow rate for crude cbd oil, base on your pre-processing For other product, 3~15L/h |
||
|
Evaporator with internal condenser |
evaporator area 0.1m2 with internal condenser |
|
|
roll type scraper |
||
|
roll type scraper |
||
|
Mechanical seal type |
||
|
370W motor |
||
|
Cold trap |
0.4m2 refrigeration cooling cold trap |
|
|
Dual use external condenser |
||
|
Heavy phase discharge |
Gear pump discharge, 200W |
|
|
3~15L/h flow rate |
||
|
Light phase discharge |
Gear pump discharge, 200W |
|
|
3~15L/h flow rate |
||
|
Pipes for machine |
Jacket with insulation purpose |
|
|
Support frame |
SS304 material |
1. Economical and practical.
2. For viscous material, the feeding tank is designed as a double layer insulation tank, all tube parts are double-layer insulation type, ensure there will be no solidification which will affect material's separation.
3. Double-layer insulation feeding tank, continuous feeding of magnetic gear pump, light phase and heavy phase sample magnetic circulation gear pump continuous collection scheme.
