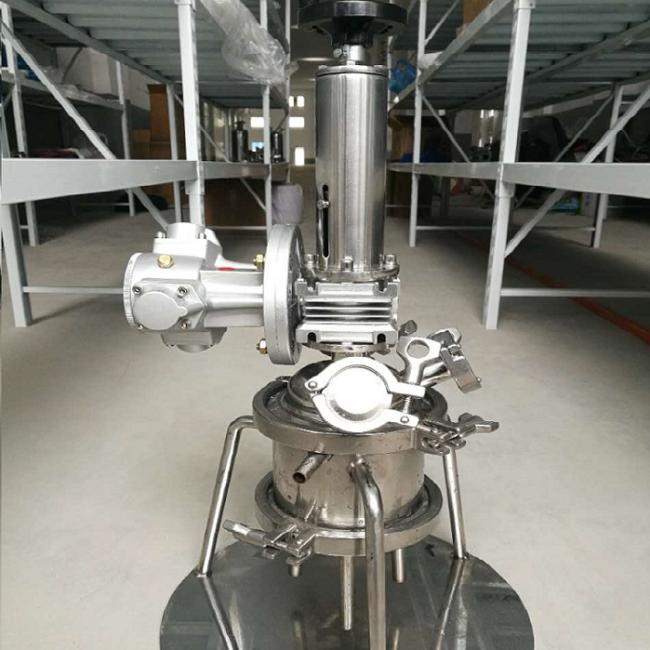

Agitated Vacuum Nutshce Filter Dryer Food Grade Nutsche Filter Manufacturer

Description for Agitated Vacuum Nutshce Filter Dryer for Cake Washing

In order to meet the confined production process, filter washing and drying reactor, three-in-one filter has been developed. This production system can realize half automatic or complete automatic operation control.

Maily used for crystallization liquid filtration, washing, drying process.it includes: feeding, beating, filtering, washing, drying, discharging, on-line inspection (optional), etc key steps to  prepare for the cleanroom of next  mixing process. And this Nutsche Filter Dryer also has CIP, SIP functions.

Agitated Vacuum Nutshce Filter Dryer for Cake Washing main features

Nutsche Filter Cleaner Dryer should be installed in standard workshop which can meet GMP totally.

1, should filter or separate solid liquid material under vacuum condition or pressure condition

2,The slurry is should be washed during stirring.

3,Can be flattened filter material to avoid the effects of filtration equipment, washing effect of the gap and ditch phenomenon

4,use same or different washing liquid to clean material

5,flatten the material to reduce moisture

6,heat the jacket, bottom, blade by heating medium under vacuum condition to dry material.

7,can in situ cleaning (CIP) and in situ sterilization (SIP).

8,Can achieve in situ sampling

10,matched with one set detachable filter chassis tank components

11,install vertical   single layer two blade  S shape stirrer.

12,one pc manual discharge valve/ sampling valve.

13,  filter area:   0.07  M²

14,stirrer can be lift with height   100  mm.

Parameters for nutsche filter dyer

Quality is our culture!

Nutshce Filter Dryer from TOPTION can make the material in a closed container equipment to complete the three process of filtration, washing and drying, to maximize the utilization of equipment. To avoid the pollution of the environment and also to avoid the pollution of the environment on the material to reduce the loss of material transport, saving solvent usage, suitable for batch mass production.
