100L industrial rotary vacuum evaporator herb essential oil distiller

Rotary Evaporator from TOPTION is the use of vacuum pressure, constant temperature heating conditions, using the rotating bottle constant speed rotation, the formation of large area thin film, high evaporation equipment installations.
This model is very popular in North America, European market!

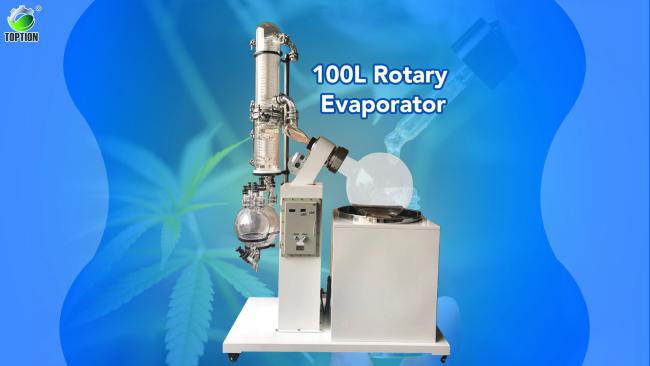

100L Rotary Evaporator is an exclusive research and developed large-size rotary evaporator of TOPTION, designed for the purpose of industrial and production use.
Model | RE-52100A industrial rotary evaporator |
Rotation flask | 100L |
Receiving flask | 50L+10L collection flask |
Material | Borosilicate glass GG17 for alcohol distillation rotary evaporator |
Support material | SS304 material |
Double Condenser system | Vertical triple, main condenser is 2 m2 (Ø230*950), Vice condenser is 0.8m2 (Ø230*550) |
Motor power | 750W 220V/50Hz single phase |
Speed adjust methodAutomatic lifting | Inverter control, programmable |
Rotation speed | 0-120RPM/ digital display |
Bath power | 15KW 380V/50Hz three phase |
Bath temperature range | RT~98℃ (Water bath) / RT~170℃ (Oil bath) |
Lift way | electric lift for bath |
Lift power | 1000W 220V/50Hz single phase |
Lift distance | 220mm |
Shell material | Spray and corrosion protection |
Dimension (mm) | 1700 x 830 x 2800 |
Packing weight | 480KG |
Seal method | PTFE seal+ fluoro rubber combination multiple seal |
Non-spark electronic control system | Yes |
Feeding valve | full teflon material feeding valve |

Automatic Lifting device for 100L rotary evaporator(Optional )
it's automatic lifting device for taking on and off flasks easily when using.

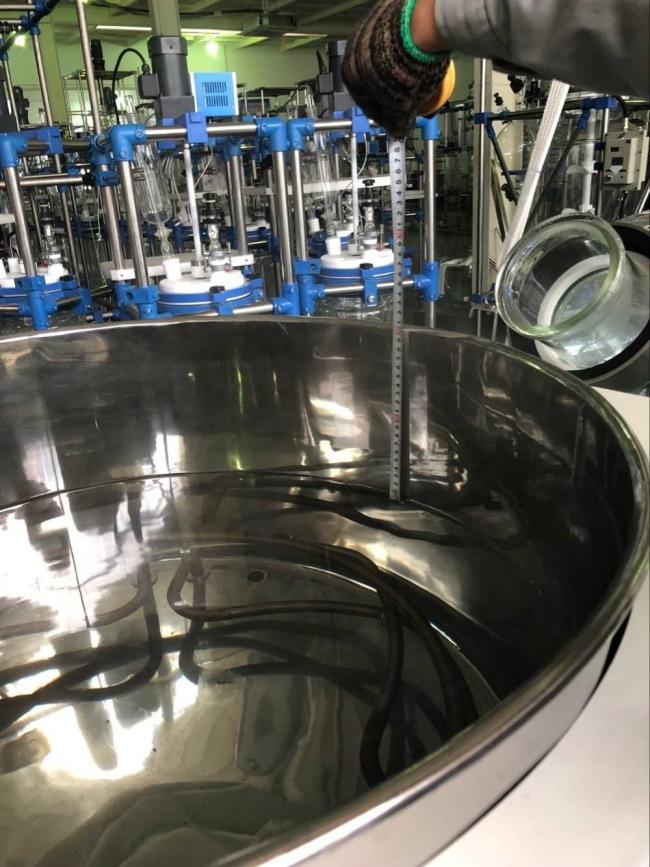

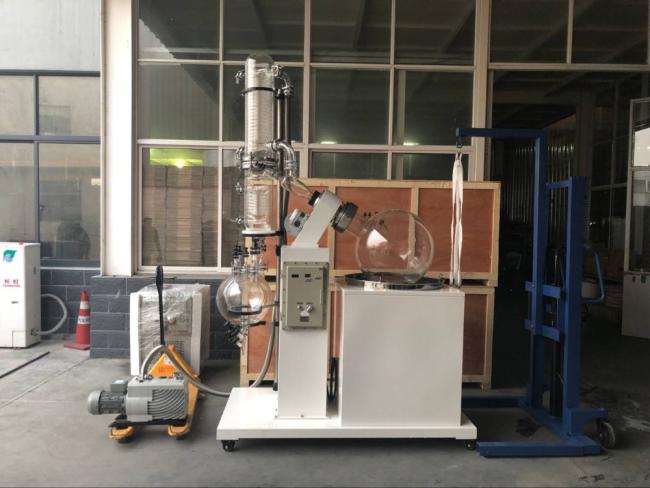

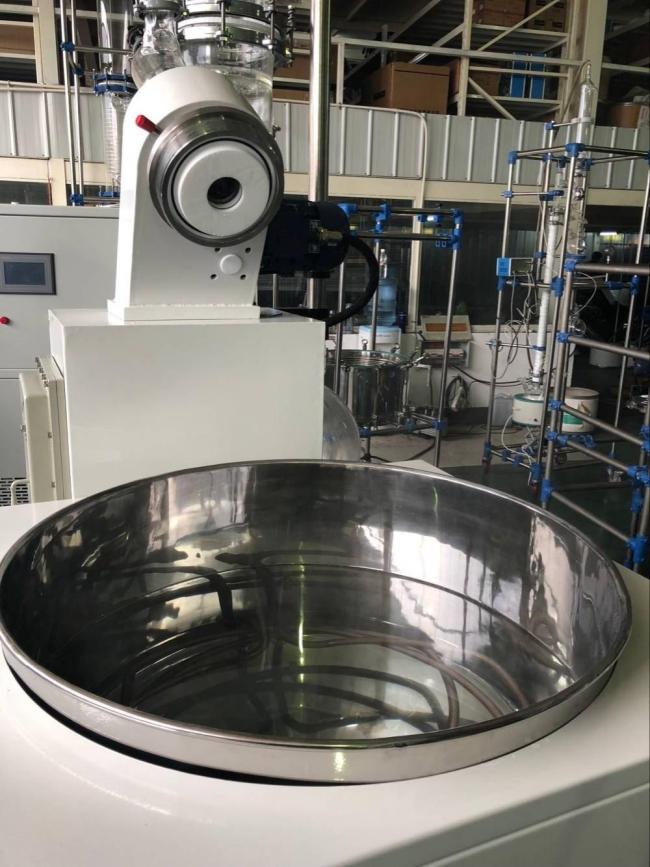

Detailed images for TOPTION 100L industrial rotary evaporator:






1. TOPTION Instruments provides ONE YEAR WARRANTY for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. TOPTION Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.


1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union...
3. When I receive it after pay?
Dear customer, normal models can be delivered with 7-9 days, please contact us to check transport time to your address.
4. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
5. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
6. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
7. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
