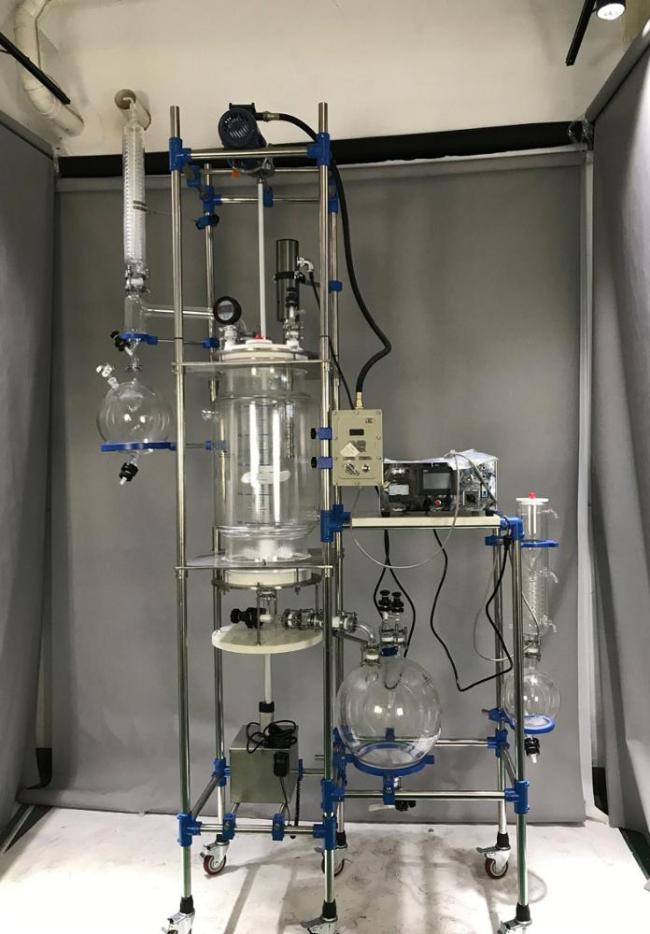

50L Glass Lab Crystallizer Equipment cbd Purity Crystallization Reactor

50L Glass Lab Crystallizer Equipment cbd Purity Crystallization Reactor

this nutsch filters is combined with our reactors perfectly.

The slurry is transferred into the filter reactor. The solid content in the slurry is held by the filter cloth under reactor body, while the filtrate runs away from outlet valve in the bottom plate and goes into right side collection flask.

Ultrasonic probe can help to mix the material with better effect.

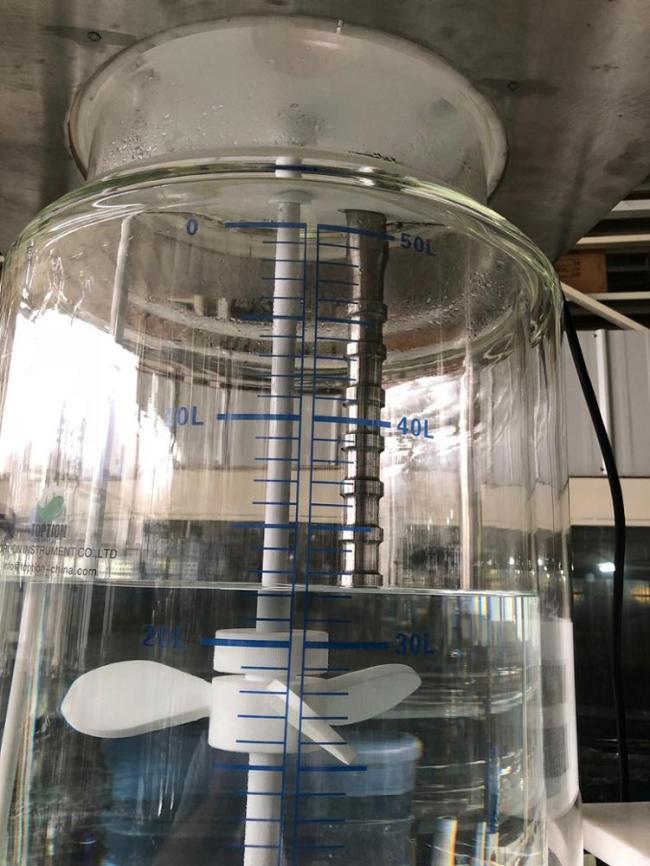

and the stirrer inside reactor can mixing material and improve efficiency too.

The cake after filtration is removed easily from the cover or bottom by lowering and opening the glass filter vessel, which is fixed to the lifting device. The lifting device is also used to lower the bottom for accessing the filter cloth for cleaning and exchange.

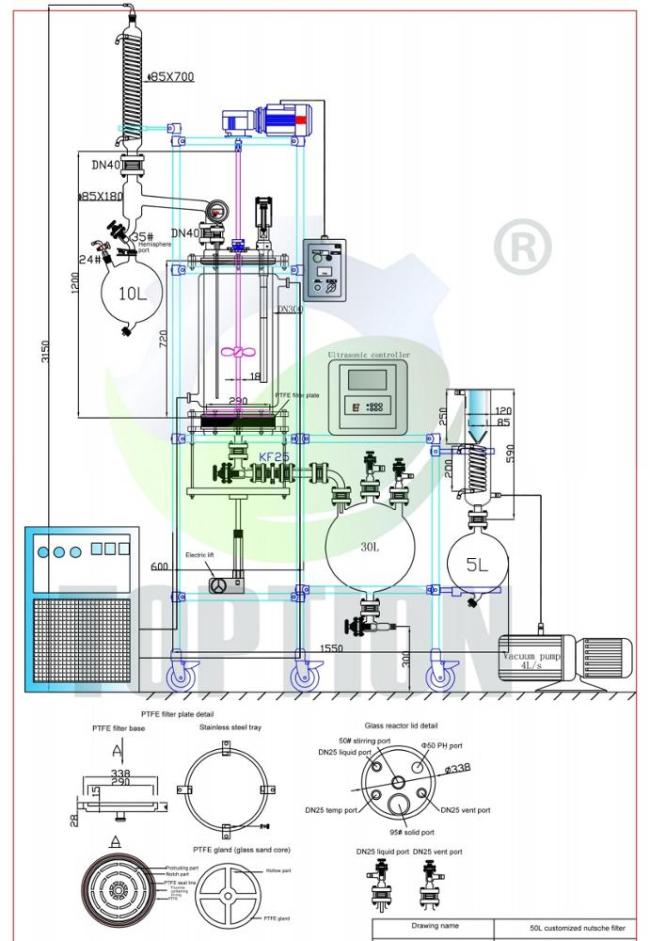

1.Jacket glass reactor: 50L volume

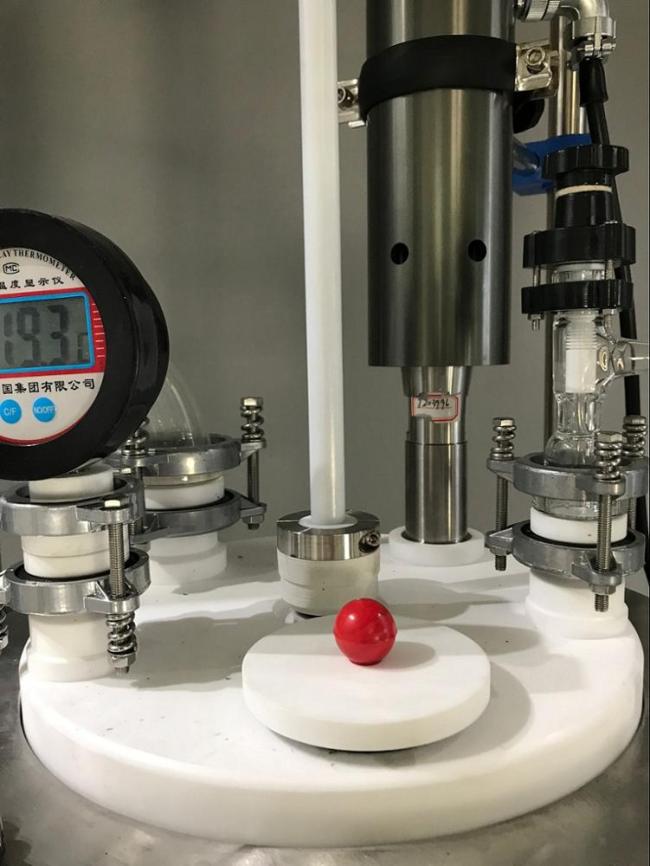

2.Reactor cover port: total six ports: stirrer port, ph port, liquid feeding port, temp port, vent port, solid feed port.

3. with stirrer

4. with ultrasonicator to homogenize materials at the same time

5. with bottom filter plate, can filter material, and filter can be washed and clean easily with electric lift device.

6. with collection flask on right side to receive the material after filtration

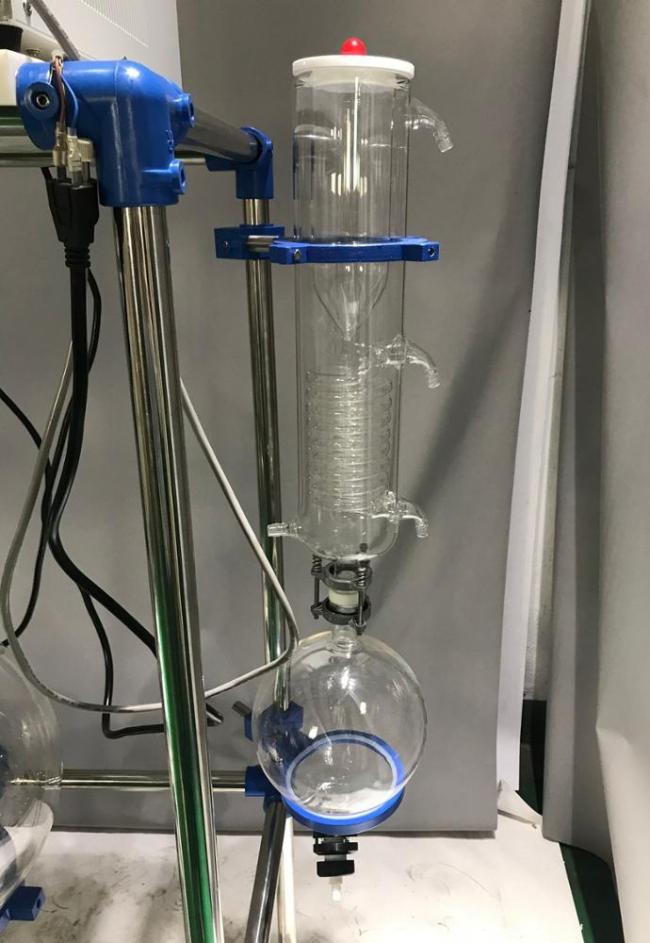

7. with cold trap and collection flask to protect pump

8. Vacuum pump and heater or chillers are optional, base on your working condition.

10. Ultrasonic power 2500W

11. Sand core filter plate with PTFE fixing gland

12.Stirrer motor: 150W

13.Working temp: -80℃~ 250℃ (related heating cooling system should be prepared)

14. Working voltage: 220V 60Hz 1 phase

100L rotary evaporator for Ethanol removal (material concentration)

50L rotary evaporator for ethanol removal purpose

50L stainless steel vacuum filter, filter plate can be removable

20L nutsche Filter Dryer for material crystalization, filter, washing, drying purpose

Two stage molecular distiller short path for cbd oil distillation and purity
