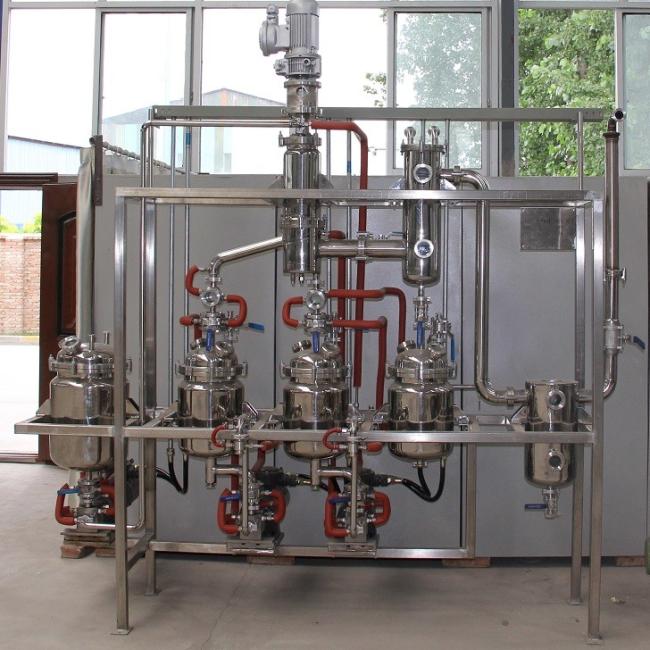

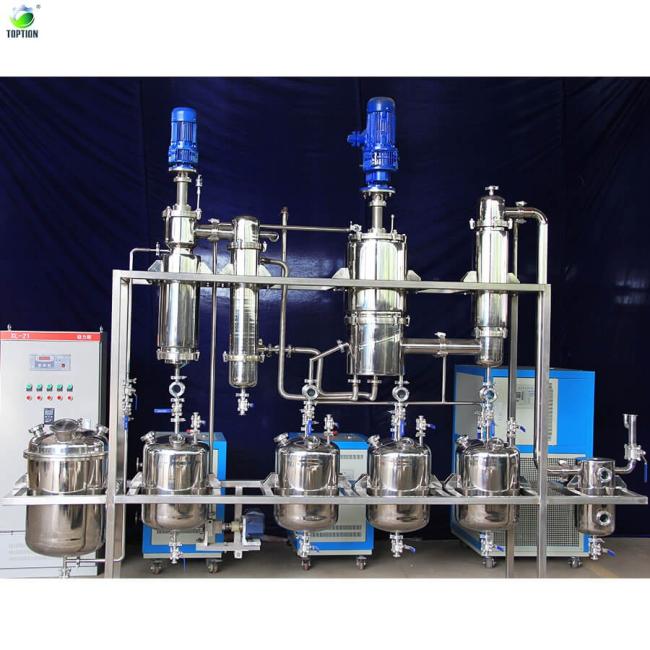

18~30L Stainless Steel Wiped Film Evaporator Short Path Alcohol Distillation
MDS-30B for short path distillation plant
1.Evaporator area m2: 0.3
2. Feeding Capacity: 18～30 L/h
3.Charging method: High precision gear pump
4.Material received method: stainless steel receiving tank 30L * 2pcs
MDS-30C for short path distillation plant
1.Evaporator area m2: 0.3
2. Feeding Capacity:18～30 L/h
3.Charging method: High precision gear pump
4.Material received method: Continuous discharging gear pump with flow rate 5~30L/hour
Application for Stainless Steel Alcohol Distillation Wiped Film Evaporator Short Path Distillation Plant:
Drawings for Stainless Steel Alcohol Distillation Wiped Film Evaporator Short Path Distillation Plant
MDS-30B is with Stainless steel storage tank 30L * 2pcs;
MDS-30C is with Continuous discharging gear pump 5~30L/hour
UC-A2030 heater
1.Used to main evaporator*1 set
2.Temp range: RT-300℃
3. Power: 20KW, AC 380V
UC-5020 heater
1.Used to feeder and light component’s pipe temperature preservation*1 set
2.Temp range: RT-200℃
3. Power:5KW, AC 220V 50/60Hz single phase
Note:The above configuration is for better light-liquidity. If the light phase is viscous material and the fluidity is not good, an additional heater heater 2 is required for an additional charge.
UC-5020 heater
1.Matched with heavier component’s pipe temperature preservation*1 set
2.Temp range: RT-200℃
3. Power: 5KW, AC 220V 50/60Hz single phase
HR-200 heating cooling system
1.Matched with external condenser*1 set
2.Temp range: -20~98℃
3. Power: 20KW, AC 380V 50/60Hz three phase
Vacuum pump parts for your choice
Option 1: TPR-60 Vacuum pump
Unload Pressure: 10pa
Option 2: TPR-48 pump+ Roots pump ZJP-150S
Unload Pressure: 1pa
Option 3: TPR-48 pump+ Oil Diffusion Pump T150
Unload Pressure: 0.1pa
TOPTION Advantages for Stainless Steel Alcohol Distillation Wiped Film Evaporator Short Path Distillation Plant
1.Packing method: Standard export fumigation wooden box or base on your requests.
2.Shipping method: By Express door to door, or by ship, based on customer choice.
1)If delivery goods by Express, door to door service, generally about 5-7 working days reach.
2)If by air, delivery goods to your destination airport, about 5 working days can reach.
3)If by sea, delivery goods to your local seaport, specific days and cost is based on your seaport name.
3.Warranty:
1. Unless otherwise specified, our products are covered by a 1-year warranty from the date of purchase. We will replace any failed components freely to customers for parts.
2. Consumables will charge related production cost.
3. Any broken caused by delivery, will be afforded by TOPTION.
