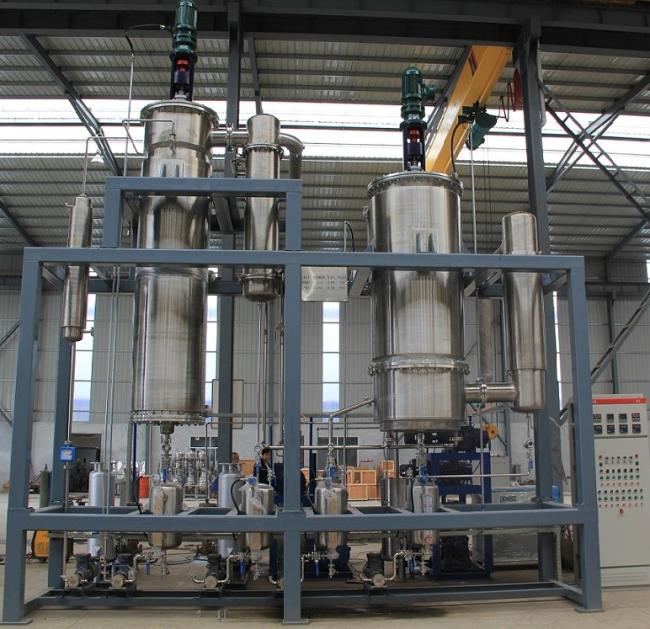

Plant Essential Oil Distillers Short Path Distillation System Stainless Steel
MDS-50B cannabidiol oil short path distillation
1.Evaporator area m2: 0.5
2. Feeding Capacity: 20～60 L/h
3.Charging method: High precision gear pump
4.Material received method: stainless steel receiving tank 50+20L
MDS-50C cannabidiol oil short path distillation
1.Evaporator area m2: 0.5
2. Feeding Capacity:20～60 L/h
3.Charging method: High precision gear pump
4.Material received method: Continuous discharging gear pump with flow rate 15~60L/hour
Application for Plant Essential Oil Distillers Complete Cannabidiol Oil Short Path Distillation System
Drawings for Plant Essential Oil Distillers Complete Cannabidiol Oil Short Path Distillation System
MDS-50B is with Stainless steel storage tank 50+20L;
MDS-50C is with Continuous discharging gear pump 15~60L/hour
UC-A2530 heater
1.Used to main evaporator*1 set
2.Temp range: RT-300℃
3. Power: 25KW, AC 380V, three phase
UC-5020 heater
1.Used to feeder and light component’s pipe temperature preservation*1 set
2.Temp range: RT-200℃
3. Power:5KW, AC 220V 50/60Hz single phase
Note:The above configuration is for better light-liquidity. If the light phase is viscous material and the fluidity is not good, an additional heater heater 2 is required for an additional charge.
UC-5020 heater
1.Matched with heavier component’s pipe temperature preservation*1 set
2.Temp range: RT-200℃
3. Power: 5KW, AC 220V 50/60Hz single phase
HR-250 heating cooling system
1.Matched with external condenser*1 set
2.Temp range: -20~98℃
3. Power: 25KW, AC 380V 50/60Hz three phase
Vacuum pump parts for your choice
Option 1: TPR-90 Vacuum pump
Unload Pressure: 10pa
Option 2: TPR-90 pump+ Roots pump ZJP-300S
Unload Pressure: 1pa
TOPTION Advantages for Plant Essential Oil Distillers Complete Cannabidiol Oil Short Path Distillation System
1.Packing method: Standard export fumigation wooden box or base on your requests.
2.Shipping method: By Express door to door, or by ship, based on customer choice.
1)If delivery goods by Express, door to door service, generally about 5-7 working days reach.
2)If by air, delivery goods to your destination airport, about 5 working days can reach.
3)If by sea, delivery goods to your local seaport, specific days and cost is based on your seaport name.
3.Warranty:
1. Unless otherwise specified, our products are covered by a 1-year warranty from the date of purchase. We will replace any failed components freely to customers for parts.
2. Consumables will charge related production cost.
3. Any broken caused by delivery, will be afforded by TOPTION.
