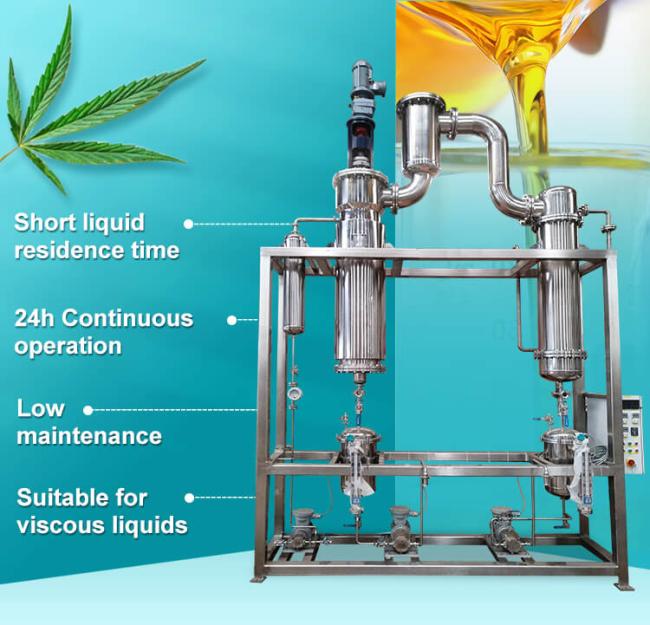

Wiped Film Evaporator Distillation Wfe Evaporator For Continuous Evaporation Process
Wiped Film Evaporator Distillation For Continuous Evaporation Process
Technical parameters of TOPTION wiped film evaporator (The parameters below are only the technical parameters of the laboratory model thin film evaporator, there are more models please contact us to get the catalogue and factory direct sales price list by info@toptionlab.com )
|
Model |
PWFS-0.1C |
PWFS-0.2C |
PWFS-0.3C |
|
Material tank |
15L jacketed tank
2 sight glass at top, with insulated ball valve. |
30L jacketed tank |
30L jacketed tank |
|
Material charging |
Gear pump, Flow 3L～15L/H |
Gear pump, Flow 5L～25L/H |
Gear pump, Flow 5L～30L/H |
|
Evaporation area |
0.1㎡ |
0.2㎡ |
0.3㎡ |
|
Film forming way |
scraper (roller is optional) |
scraper (roller is optional) | scraper (roller is optional) |
|
Material |
316L stainless steel |
316L stainless steel | 316L stainless steel |
| Sealing method |
Mechanical seal (Magnetic seal is optional) |
Same | Same |
|
Cold trap |
1㎡ tube nest |
2㎡tube nest |
2㎡tube nest |
|
Heavier | Lighter component discharge |
Both use gear pump, flow 3L～15L/H |
Both use gear pump, flow 5L～25L/H | Both use gear pump, flow 5L～30L/H |
|
Material pipeline |
Jacketed insulation |
Jacketed insulation | Jacketed insulation |
|
Shelf & assemble |
304 stainless steel pipe |
304 stainless steel pipe | 304 stainless steel pipe |
| Heater, chiller, vacuum pump | Are available | Are available | Are available |
