Borosilicate 3.3 Glass Chemical Reactor Vessel Corrosion Resistance 50 L Glass Reactor
Borosilicate 3.3 Glass Chemical Reactor Vessel Corrosion Resistance
Advantages of TOPTION jacketed reactor glass reaction vessel
1. Fully customizable system, Various structural products can be flexibly designed to meet product performance, meet different requirements.
2. Outstanding corrosion resistance, High quality borosilicate 3.3 glass for excellent chemical & physical performance.
3. Stable & Continuous Operation, Durable stirring motor designed, Upgrade Explosion Proof Motor Optional.
4. Jacketed layer design, Achieve high & low temperature reaction of -80℃-300℃ (chiller & heater available).
5. Strong stirring, PTFE stirrer with anchor agitator - strong & durable & corrosion resistance.
6. Strong manufacturing strength, Official Verified top manufacturer 16+ years.

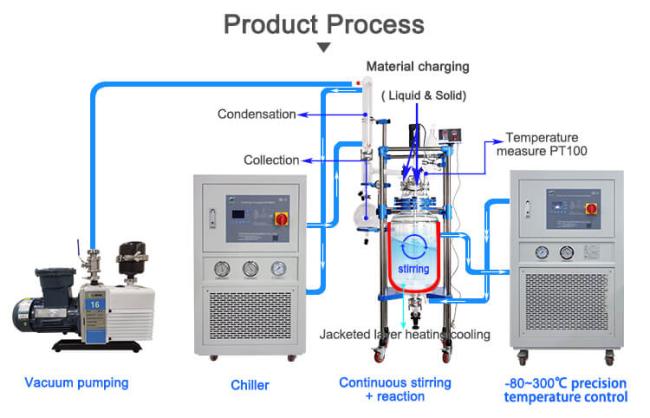

Glass reactor complete set with chiller, heater and vacuum pump
Technical parameters of jacketed glass reactors chemical reactors ( 1L - 250L wide capacity range, chiller, heater, vacuum pump are available)
| Model | TOPT-50L | TOPT-100L | TOPT-200L |
| Stir medium flange | 50 | 60 | 60 |
| Liquid material inflow | 34# 1L | 5L 24# | 10L DN25 |
| Condenser | 34# | DN40 ball mouth | DN50 ball mouth |
| Temp. measure | DN15 | DN15 | DN25 |
| Multi function valve | DN25 | DN25 | DN25 |
| Solid charging port | DN80 | DN80 | DN100 |
| Reactor lid flange(mm) | 265 | 340 | 340/ 440PP flange |
| Inner diameter of reactor body(mm) | 365 | 460 | 550 |
| External diameter(mm) | 410 | 500 | 650 |
| Reactor body height(mm) | 850 | 950 | 1100 |
| Power (w) | 140 | 250 | 400 |
| Rotate speed (rpm) | 50-600 | 50-600 | 50-600 |
Advantages of TOPTION chemical reactors
1. Fully customizable system, various structural products can be flexibly designed to meet product performance, meet different requirements.
2. Jacketed layer design, achieve high and low temperature reaction of -80~300 Celsius, chiller and heater are available.
3. Outstanding corrosion resistance, high quality borosilicate 3.3 glass for excellent chemical and physical performance.
4. Strong stirring, PTFE stirrer with anchor agitator - strong and durable and corrosion resistance.
5. Stable and continuous operation, durable stirring motor designed, upgrade explosion proof motor optional.
6. Strong manufacturing strength, official verified top manufacturer 15+ years.
current distillation process, 1 set customize, hot sale distillation equipment support fast delivery within 7 days, overseas
installation and training service is available. With TOPTION, help you save time and cost.
