1L 2L 3L 5L Jacketed Lab Reactors Glass Reaction Vessel Complete Set
1. Fast delivery within 3 days.
2. Complete set with chiller, heater, vacuum pump.

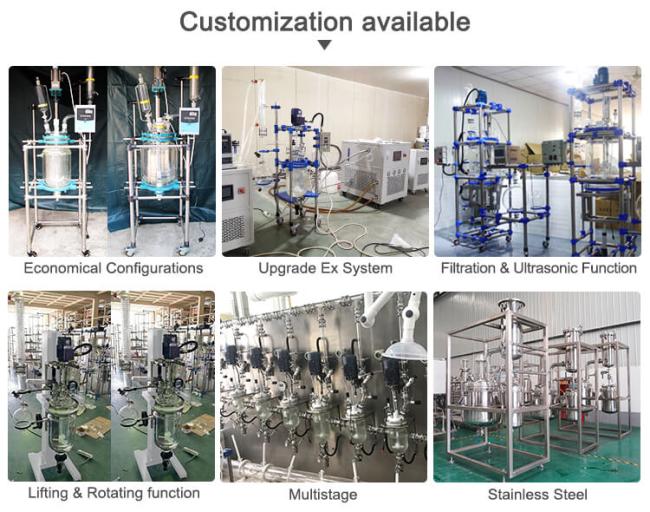

3. Customization include reaction vessel automatic lifting | rotating function, explosion proof system, multi-stage types, etc. OEM & ODM.
Description
-
Jacketed lab reactors complete set with chiller, heater, vacuum pump, ISO CE certification dependable quality guarantee, 1 year warranty period, reliable & in time service during glass reactor long service life.
Glass chemical reactor is widely used in petroleum, chemical industry, rubber, pesticides, dyes, pharmaceutical and food, for the purpose to complete the sulfuration, nitration, hydrogenation, alkylation, polymerization, condensation and other process.
For research, glass reaction vessel could do new materials synthesis, mixing homogeneous reaction, extraction and purification, distillation and samples purification.
![]()
Technical parameters of TOPTION jacketed lab reactors ( 1L-250L wide capacity range customize, stainless steel reactor, high pressure reactor are optional )
| Model | TOPT-1L | TOPT-2L | TOPT-3L | TOPT-5L |
| Stir medium flange | 35 | 35 | 35 | 40 |
| Liquid material inflow | 24# 0.25L | 24# 0.25L | 24# 0.25L | 24# 1L |
| Condenser | 24# | 24# | 24# | 24# |
| Temp. measure | 14# | 14# | 14# | 19# |
| Multi function valve | 24# | |||
| Stirring paddle | ￠7mm Anchor type | ￠7mm Anchor type | ￠7mm Anchor type | ￠10mm single layer two blade paddle type |
| Reactor lid flange(mm) | 150 | 150 | 150 | 180 |
| Inner diameter of reactor body(mm) | 113 | 135 | 150 | 180 |
| External diameter(mm) | 150 | 180 | 200 | 230 |
| Reactor body height(mm) | 250 | 280 | 300 | 400 |
| Power (w) | 40 | 40 | 40 | 60 |
| Rotate speed (rpm) | 50-800 | 50-800 | 50-800 | 50-600 |
current distillation process, 1 set customize, hot sale distillation equipment support fast delivery within 7 days, overseas
installation and training service is available. With TOPTION, help you save time and cost.
