Rogers RO3003 High Frequency PCB with 10mil, 20mil, 30mil and 60mil Thick Coating Immersion Gold,
Immersion Silver, Immersion Tin and HASL
(PCB's are custom-made products, the picture and parameters shown are just for reference)

Hello Everyone,
Today we’re talk about RO3003 high frequency PCBs.

RO3003 high frequency circuit laminates are ceramic-filled PTFE composites intended for using in commercial
microwave and RF applications. Its obvious characteristic is that the electrical performance is exceptional and
the mechanical property is stable and consistent. This allows our designers to develop multi-layer board design
feeling free and free, without encountering warpage or reliability problems.

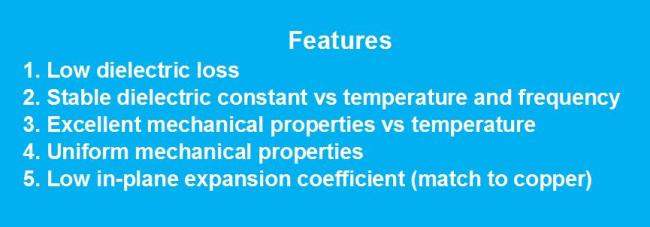

Let’s see some more features and applications.


1. low dielectric loss, DF=0.001, it can be used in applications up to 77 GHz.

• Stable dielectric constant versus temperature and frequency, it’s ideal material for band pass filters,
• microstrip patch antennas, and voltage controlled oscillators.
• excellent mechanical properties versus temperature, it’s reliable stripline and multi-layer board constructions.
• Uniform mechanical properties, it’s suitable for use with epoxy glass multi-layer board hybrid designs.
• low in-plane expansion coefficient matches to copper, it allows for more reliable surface mounted assemblies;
• ideal for applications sensitive to temperature change and exhibit excellent dimensional stability.


Our PCB Capability (RO3003)


RO3003 high frequency PCBs are available with double sided, multi-layer and hybrid construction, copper
ranges from 0.5oz to 2oz, thickness from 0.3mm to 1.6mm, maximum size 400 by 500mm, surface finish
with bare copper, hot air leveling, immersion gold etc.

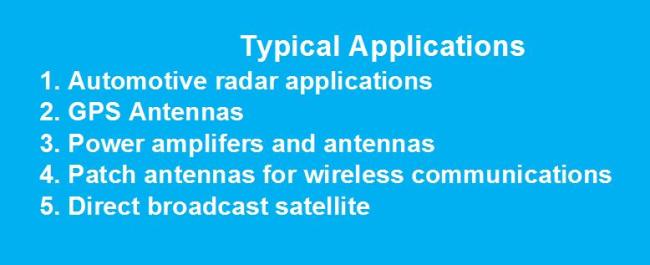

Typical Applications
1. Automotive radar applications
2. GPS Antennas
3. Power amplifiers and antennas
4. Patch antennas for wireless communications
5. Direct broadcast satellite


The basic colour of RO3003 PCB is white.

The manufacturing process of RO3003 high frequency PCB is similar to standard PTFE PCB, so it’s suitable
for volume manufacturing process winning advantageous market.

Should you have any questions, please feel free to contact us.

Thank you for your reading.

Appendix: Data Sheet of RO3003
