Rogers High Frequency PCB Built on Kappa 438 40mil 1.016mm DK 4.38 with Immersion Gold for Distributed
Antenna Systems
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

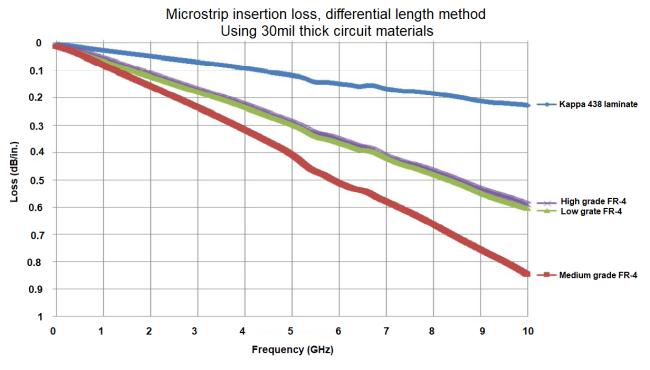

Rogers Kappa 438 laminates were designed using a glass reinforced hydrocarbon ceramic system that offers superior
high frequency performance and low cost circuit fabrication resulting in a low loss material which can be fabricated using
standard epoxy/glass (FR-4) processes. Kappa 438 laminates also have the UL 94 V-0 flame retardant rating and are lead
free solder process compatible.

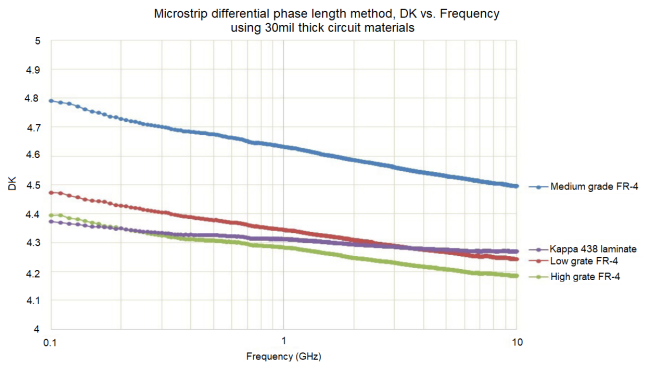

Kappa 438 laminates offer dielectric constants (Dk) tailored to FR-4 industry standard norms which facilities ease of
converting existing FR-4 designs where better electrical performance is needed.

Features
1. Glass reinforced hydrocarbon thermoset platform
2. Dk of 4.38 is tailored to FR-4 industry standard norms
3. Tighter Dk and thickness tolerance than FR-4
4. Low Z Axis CTE of 42 ppm/°C
5. High Tg of > 280°C TMA
6. Meets UL 94-V0 requirements


Benefits
1. Ease of PCB manufacturing and assembly in Line with FR-4
2. Design Dk enables ease of converting existing FR-4 designs needing better electrical performance
3. Consistent circuit performance
4. Improved design flexibility and plated through-hole reliability
5. Automated assembly compatible

Typical Applications:
1. Carrier Grade WiFi/Licensed Assisted Access (LAA)
2. Small Cell and Distributed Antenna Systems (DAS)
3. Vehicle to Vehicle/Vehicle to Infrastructure Communications (V2X)
4. Internet of Things (IoT)
Segments: Smart Home and Wireless Meters

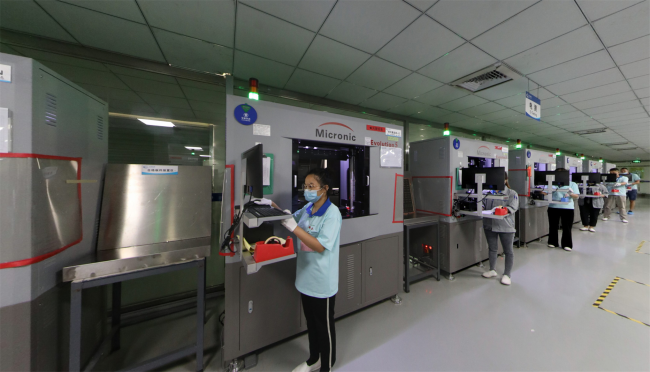

Our PCB Capability (Kappa 438)


Data Sheet of Kappa 438 Laminate
