Conformal antennas use 2-layer 15-millimeter IsoClad 933 PCB substrates without blind vias

1. Introduction of IsoClad 933:
Rogers IsoClad 933 laminates are non-woven fiberglass/PTFE composites designed for PCB substrates.

Utilizing non-woven reinforcement, these laminates are ideal for applications requiring conformability.

IsoClad 933 employs extended random fibers and a proprietary process to enhance dimensional stability

and mechanical strength.

2. Features:

• Dielectric Constant (DK): 2.33 at 10GHz/23°C
• Dissipation Factor: 0.0016 at 10GHz/23°C
• Peel Strength: 10 lbs. per inch
• Water Absorption: 0.05%
• Outgassing: 0.03% TML, 0 CVCM, 0.02% WVR
• Dk Uniformity: Excellent

3. Benefits:

• Flexibility: Greater than woven fiberglass
• Isotropy: Highly isotropic in X, Y, and Z axes
• Dk Stability: Maintained across varying frequencies
• Dimensional Stability: Improved

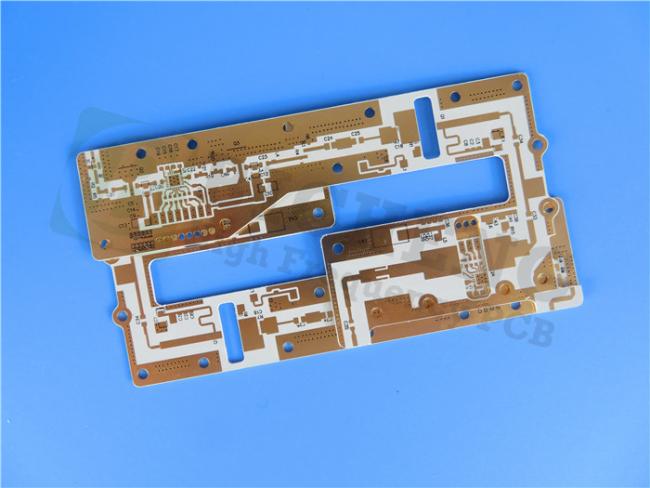

4. PCB Stackup: 2-Layer Rigid PCB Using IsoClad 933:

• Copper Layer 1: 35 μm
• Rogers IsoClad 933 Core: 0.381 mm (15 mil)
• Copper Layer 2: 35 μm

5. PCB Construction Details:

6. PCB Statistics for IsoClad 933:

• Components: 41
• Total Pads: 135
• Through-Hole Pads: 89
• Top SMT Pads: 46
• Bottom SMT Pads: 0
• Vias: 76
• Nets: 2

7. Artwork Format Supplied: Gerber RS-274-X

8. Quality Standard: IPC-Class-2

9. Availability: Worldwide

10. Some Typical Applications:

• Conformal Antennas
• Stripline and Microstrip Circuits
• Guidance Systems
• Radar and Electronic Warfare Systems

Utilizing IsoClad 933 laminates in conformal antennas ensures robust, reliable, and high-performance solutions

for critical applications in the electronics and communication sectors.
