Materials for RF laminates constructed on Taconic RF-35TC PCB Manufacturer 30 mil 0.762 mm with black soldermask

Materials for RF laminates constructed on Taconic RF-35TC PCB Manufacturer 30 mil 0.762 mm

with black solder mask for antennas

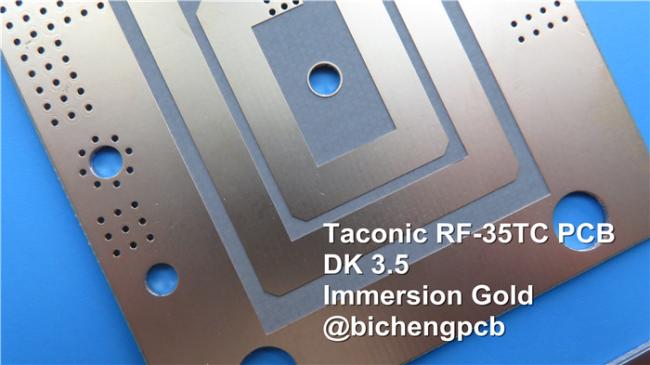

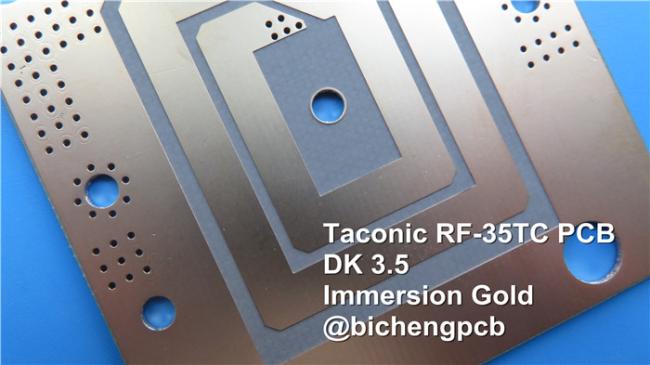

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

RF-35TC from Taconic company sets a benchmark in high-frequency materials, offering an unparalleled low

dissipation factor coupled with high thermal conductivity. Tailored for high-power applications where even a

tenth of a decibel is critical, this material excels in diffusing heat away from transmission lines and surface

mount components like transistors.

Crafted from a PTFE-based composition, RF-35TC features a ceramic-filled fiberglass substrate. Unlike its

hydrocarbon counterparts, it remains resistant to oxidation, yellowing, and the upward drift in dielectric constant

and dissipation factor over time.

With a low dielectric constant of 3.50 and an exceptionally low Df of 0.0011, this laminate ensures minimal

signal loss and efficient heat dissipation. Its strong bond with low-profile copper further minimizes insertion

loss, enhancing overall performance.

RF-35TC laminates find their optimal use in diverse applications such as antennas, satellites, filters, couplers,

and power amplifiers, where reliability, thermal management, and high performance are of paramount importance.

PCB Specifications

Data Sheet of RF-35TC
