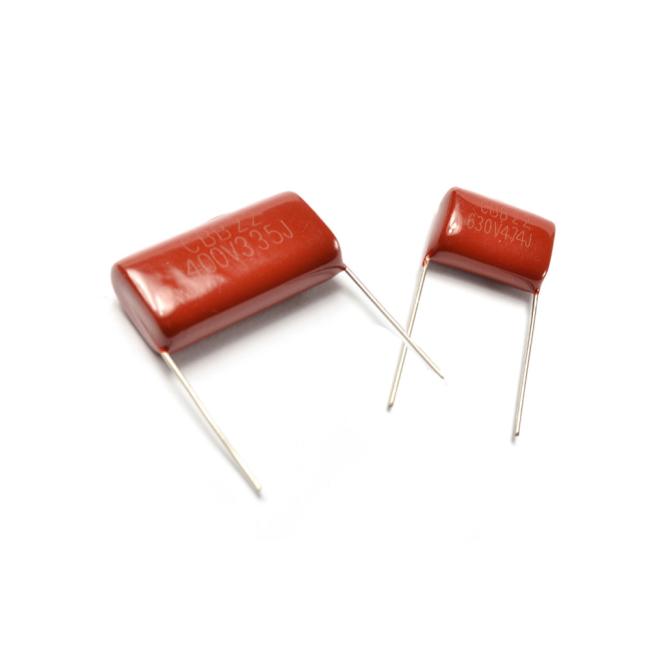

CBB22 Metallized Polypropylene Film Capacitor 3.3uF 400V P27.5mm For Pulse Curcuits

CBB22 capacitor belongs to Metallized Polypropylen Film Capacitor,which is used in dc, pulse, high frequency and high current occasions, and used in electrical appliances requiring high frequency, high current and high stability.

Features

Metallized polypropylene film

Epoxy resin encapsulation

Low loss at high frequency

Good insulation performance

Good self-healing effect.

Configuration

CBB22 is non-inductive structure, wound with metallized polypropylene film as dielectric/electrode, the lead is tinned copper clad steel wire, coated with epoxy resin.

Application:

It is widely used in high frequency, DC, AC and pulse circuits. Like AC voltage step-down in instruments, meters, TV sets and household electrical appliances, especially in various types of energy-saving lamps, electronic rectifiers and inverter circuits of welding machines.

Specifications:

Referance Standard		GB10190 (IEC60384-14)
Climatic Category		40/85/21
Rated Voltage		250V, 400V, 630V
Capacitance Range		0.0047~3.3uF
Capacitance Tolerance		±5%(J) ± 10% (K), ± 20% (M)
Voltage proof		1.6UR(5s)
Dissipation Factor		≤0.1(20℃, 1kHz)
Insulation Resistance		≥25000MΩ (CR≤ 0.33 uF) ≥7500S (CR>0.33 uF)

Packing:
Bulk, Ammo, T&R

OUTSIDE MARKS FOR CAPACITANCE:

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details,  Kindly contact us freely!

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
