CCGS Water-Cooled High Power Ceramic Capacitor 5000pF 20KV For Electric Oven

Features:

• High withstand voltage
• Noble metal electrodes with low self heating
• Low dissipation factor
• Large reactive power
• High frequency
• Long service life time
• Easy installation
• Low Inductance construction, higher frequency use

Application:

It's mainly used in equipment of high-frequency welded pipe, high-frequency drying, high-frequency electric oven, plastic thermal bonding machine and radio communication equipment.

Suitable for below curcuits

• Radio broadcast transmitters
• HF filter, By-Pass & Coupling Circuits
• High power matching tuned circuits, Antenna circuits
• High power matching networks, Plasma Generators
• High quality medical imaging systems (MRI)
• Induction and Dielectric Heating Equipment
• Industrial Applications

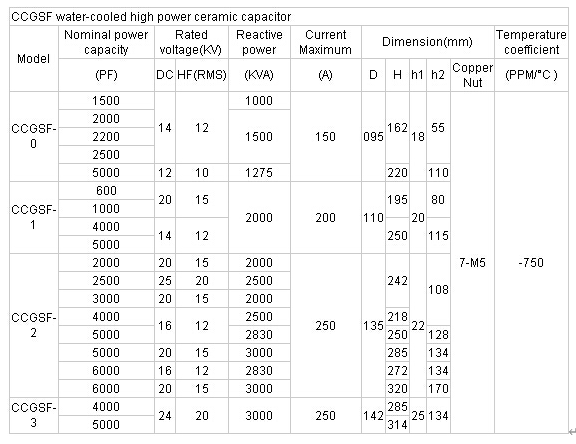

Specifications:

Technical parameters:
1.Typical dissipation factor: ≤0.0008
2.Volume resistivity: ≥10000MΩ
3. Permissible variation of rated capacitance: K(+/-10%)
4.Temperature range: -40/+85
5. Rated temperature: +85°C
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.

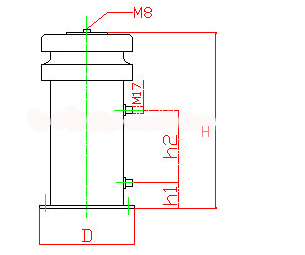

Dimensions:

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
