1500VDC Black Polypropylene Audio Capacitors Axial Round Film Capacitor

These axial leaded capacitors are rated at 1500VDC, wide capacitance range from 1nF to 1uF. The customized color in black makes them very suitable for repairing traditional classic radios of 1940's to 1960's.

Feature:

Low loss, low inductance

Superb stability

High Insulation resistance, long life due to self-healing effect.

Widely used in high frequency, DC, AC and pulse circuits.

Configuration

Non-inductive, wound with metallized polypropylene film as the dielectric and electrode,  copper-clad steel leads or flexiable cord,  for easy solder, outer wrapped of polypropelene and end sealed with epoxy resin.

Application

Widely used in communication equipment, radio, television, power supply, instruments and other products.

Referance Standard		GB 10190-88(IEC 60384-16)
Operating Temperature		-40℃~ +105℃
Rated Voltage		100V, 250V, 400V, 630V.DC
Capacitance Range		1nF ~ 1μF
Capacitance Tolerance		±10%(K)
Voltage proof		1.6UR(5s)
Dissipation Factor		≤0.1%(20℃, 1KHz)
Insulation Resistance		≥25000MΩ (CR≤ 0.33 uF) ≥7500S (CR≥0.33 uF) (20℃,1min)

Size for reference:  Can be customized according to customer demand processing

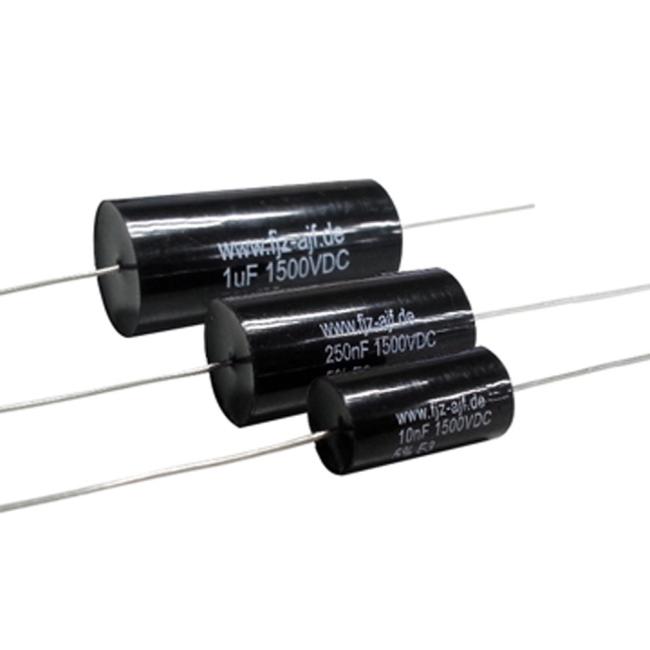

Product Pictures

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
