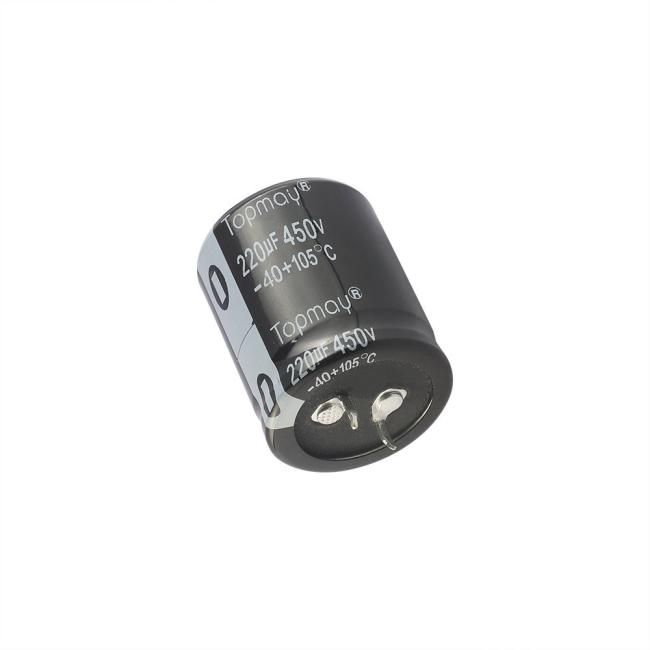

220uF Snap In Capacitor Electrolytic 450V 25*35 Aluminum 105C
220uF 450V 25*35 Snap-in Aluminum Electrolytic Capacitor 105C
Features:
105℃,snap-in terminal
Load life of 2000hrs, high ripple current , PCB mounting.
Specifications:
| Item | Characteristics | ||||||||||||||||
| Capacitance | 560uF | ||||||||||||||||
| Rated Voltage Range | 450V.DC | ||||||||||||||||
|
Operating Temperature Range |
－40℃～+105℃ | ||||||||||||||||
| Capacitance Tolerance | ±20%(M) (25℃,100 or 120Hz) | ||||||||||||||||
| Leakage Current |
I≤ 0.01cv or 1.5mA. which is smaller After 5 minutes application of rated voltage. Where, I: Max. leakage current (uA), C: Norminal capacitance(uF), V: Rated Voltage(V) |
||||||||||||||||
| Dissipation Factor |
(25℃,100 or 120Hz)
|
||||||||||||||||
| Shelf Life(+ 105℃) | After storage for 1000 hours at +105℃ with no voltage applied , the capacitor shall meet the specified limits for "Load Life" | ||||||||||||||||
| Load Life(+ 105℃) |
|
||||||||||||||||
| Temperature Stability(120Hz) |
|
||||||||||||||||
Dimensions
| D | 22 | 25 | 30 | 35 |
| F | 10 | |||
| G | 6.0 | |||
| α | 1.0 | |||
| β | 2.0 | |||
Multiplier for Ripple Current
Frequency Coefficient
| Frequency (Hz) | 50 | 120 | 1K | 10K | 20K | 100K | |
| Coefficient | ≤100 | 0.96 | 1.00 | 1.10 | 1.15 | 1.20 | 1.25 |
| 63~100V | 0.85 | 1.00 | 1.07 | 1.13 | 1.19 | 1.40 | |
| 160~450V | 0.80 | 1.00 | 1.15 | 1.20 | 1.35 | 1.60 | |
Size and Max Ripple Current
|
Working Voltage (V.DC) |
Capacitance (mF) |
Size ΦD×L(mm) |
Tgδ @20℃, 120Hz |
IR (Arms,105℃,120Hz) |
Leakage Current( uA, 5 minutes
|
| 450 | 220 | 25*35 | 0.15 | 2.7 | 924 |
TOPMAY Part No. System
| TMCE | 18 | _ | 227 | M | 450V | B |
| Product Category | Sub-Series |
Capacitance 687=680uF |
Tolerance-+/-20% | Voltage | Packing-bulk |
