ETOPMAY Super Farad Capacitor 2.7 V 500f Capacitor With Million Times Cycle Life
500F 2.7V Super Capacitor Farad Capacitor with Million Times Cycle Life
1. Feature:
- Virtually long cycle life; can be cycled 1000000 times
- High specific power; low resistance enables high load currents
- Charges in seconds; no end-of-charge termination required
- Simple charging; draws only what it needs; not subject to overcharge
- Military-standard quality and safe
- Excellent low-temperature charge and discharge performance (- 40 ℃-70C)
2. Application:
This capacitor could be used in electronics such as:
- Smart meters: smart electricity meters, smart water meters, smart gas meters
- Car electronics: car audio, ETC system, driving recorde
- Internet of Things 5G: smart TV, smart refrigerator, smart electronic door, anti-theft system, 5G terminal
- Back-up power supply: communication equipment, wireless transmission,RAM, UPS,small household appliances, small energy storage devices, green energy, solar street lights
3. Standard Test Conditions
The standard test conditions in this specification are standard atmospheric pressure, temperature 25 ± 2 ℃, and relative humidity less than 60%.
3. General Specifications
|
Rate discharge Cap. F(25℃) ( ΔV＝2.16V-1.35V) |
Cap. Tolerance (25℃) |
Rated Voltage (V) |
Operating Temp. (Top) |
ESR (1KHz) (mΩ) |
| 500 | 0%~+30% | 2.7 | -40~70℃ | 10 |
4.Product Structure
This capacitor is on the basis of theory of double layer capacitor. Internal using activated carbon as positive and negative electrodes, separated by electrolyte and diaphragm between two electrodes, To seal using aluminum shell and rubber plug. The lead terminals are on the same side of the capacitor.
5.Performance Index
| ITEM | Specification | |
| 1 | Temperature Characteristics | Temperature +70℃,|△C/C| ≤30%,ESR≤specified value(25 ℃); Temperature -40 ℃,|△C/C|≤30%,ESR≤ 4 times initial value(25 ℃) |
| 2 | High temperature load | Temperature +70 ℃ added rated voltage, after 1000h,|△C/C|≤30%,ESR≤ 4 times specified value. |
| 3 | High temperature without load | Temperature +70 ℃added rated voltage, after 1000±4h,|△C/C|≤30%,ESR≤ 2 times specified value. |
| 4 | The steady state damp heat test | Temperature +40 ℃, 90-95% RH, 240hrs later, |△C/C|≤30%, ESR≤ 4 times specified value. |
| 5 | Cycle life Expectancy | added rated voltage, under room temperature, cycling charge and discharge testing for 500000 times, |△C/C|≤30%,ESR≤ 4 times initial value(25 ℃) |

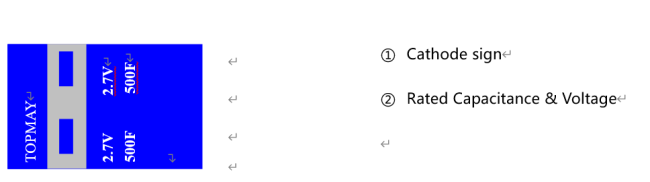

6. Mark
7. Outline Drawing and Dimensions
8. Product Picture
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
