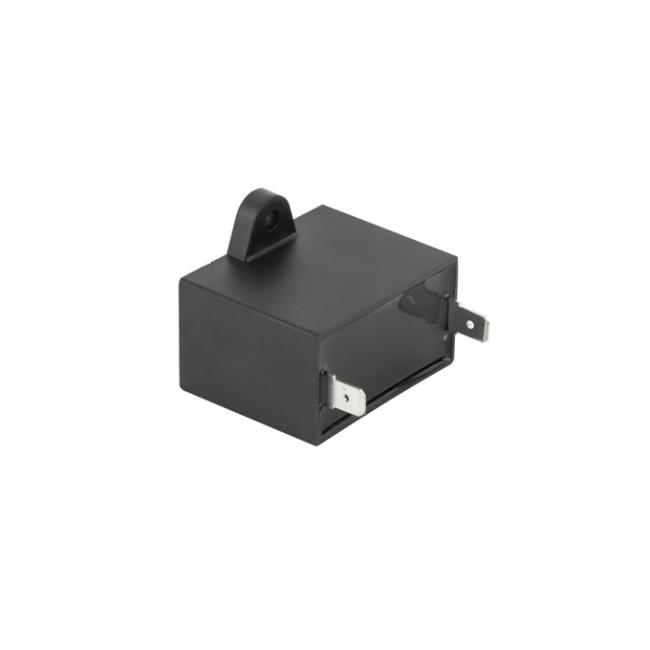

CBB61 AC Film Capacitor Metallized Polypropylene 6uF 450VAC Motor Fan Capacitor
CBB61 Metallized Polypropylene AC Film Capacitor Motor Fan Capacitor 6uF 450VAC
CBB61 Capacitor has advantages of low dissipation, high insulation resistance, good sel-healing character, and steady electricity performance, anti-striking current, strong over-carrying capacity, etc. Generally, it uses rectangular flame retardant shell and epoxy resin to seal. It is applied in electric fan, exhaust fan, electric pump, and sewing machine, etc. lt is helpful for motor's starting and running.
Features
1. Rectangle flame retardant plastic shell, epoxy resin sealed.
2. Small size, light weight, convenient for installation.
3. Low dissipation factor, high insulation resistance, good self-healing, stable performance, good ability of resisting impact current and overload.

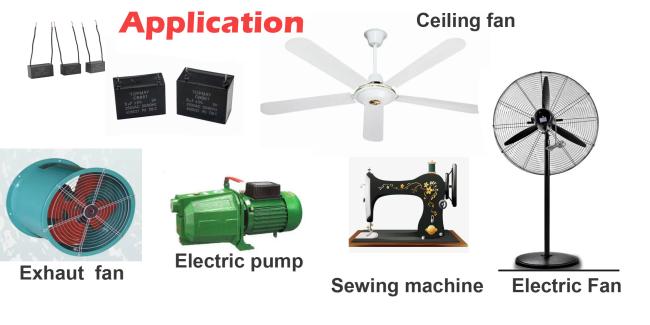

4. Suitable for air conditioner, electric fan, exhaust fan, electric pump, and electric sewing machine,etc and beneficial to the starting and running of AC motor.
Structures
1. The capacitor core is wound by metallized organic film.
2. Plastic shell, flame retardant epoxy resin encapsulation, single capacitor core or multiple capacitor core can be installed in one shell.
3. Installation components include plastic ears and iron ears.
4. The leading mode includes plastic sealing lead wire, tinned copper needle, fast connection terminal, welding ear, etc.
Specifications
| Operating Temperature | -40~+85℃ |
| Rated Voltage | 250VAC~500VAC |
| Capacitance Range | 0.5~30uF |
| Testing Voltage | T-T:1.75Un/2s T-C:2200VAC/2s |
| Capacitor Core | Metallized polypropylene Film |
| Capacitance Tolerance | ±5%(J), ±10%(K) |
| Dissipation Factor | tg≤0.002(100Hz,20℃) |
| Operating Frequency | 50/60HZ |
TOPMAY'S CBB61 Capaictor could be used in different occasions.
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
