CBB61 AC 10uF Motor Capacitor 250VAC Wire Leads Terminal For Electric Pump
AC Motor Capacitor For Electric Pump CBB61 10uF 250VAC Wire Leads Terminal
Features
Box Type provides the identical outer apperance
Very Low lose at high frequency, suitable for high current.
High inxulation resistance, long life due to self-healing effect.
Applicable to the start-up and operation of 50Hz/60HZ singlephase motor.
CBB61 type capacitor gengrally use the quadrate anti-flaming plastic shell,epoxy resin packing .The type is of little shape and light weight,little wastage,high insulation resistance,excellent natural repair,good stability,suitable for alternating current circuit.
This type capacitor is suitbale used in the frequency of 50-60Hz,voltage from 250v-500v single shase AC motors,fan,water pump etc.For starting and running .
Structures:
1. The capacitor core is wound by metallized organic film.
2. Plastic shell, flame retardant epoxy resin encapsulation, single capacitor core or multiple capacitor core can be installed in one shell.
3. Installation components include plastic ears and iron ears.
4. The leading mode includes plastic sealing lead wire, tinned copper needle, fast connection terminal, welding ear, etc.
Specifications
| Description | CBB61 Motor Capacitor |
| Rated Capacitance | 10uF |
| Capacitance Tolerance | ±5%(J) |
| Rated Voltage | 250VAC |
| Life Class | ClassB:10000hrs, ClassC:3000hrs |
| Rated Frequency | 50/60Hz |
| Loss Tangent (DF) | ≤0.0020(( 100Hz) |
| Operating Temperature | -40~+85℃ |
| Withstanding voltage | T-T:1.75Un/2s T-C:2200VAC/2s |
| Capacitor Core | Metallized polypropylene Film |
| Explosion-proof | S0 |
| Terminal | Flexible Wires |
Diamensions for reference:
| No. | Specification | Box Size | |||
| Capacitance | Voltage | Width(mm) | Thickness(mm) | Height(mm) | |
| TMCF25-305J400VB | 3uF | 400VAC | 48 | 18 | 29 |
| TMCF25-405J400VB | 4uF | 400VAC | 48 | 18 | 29 |
| TMCF25-505J400VB | 5uF | 400VAC | 48 | 18 | 29 |
More size information, we will provide when detailed quotation.

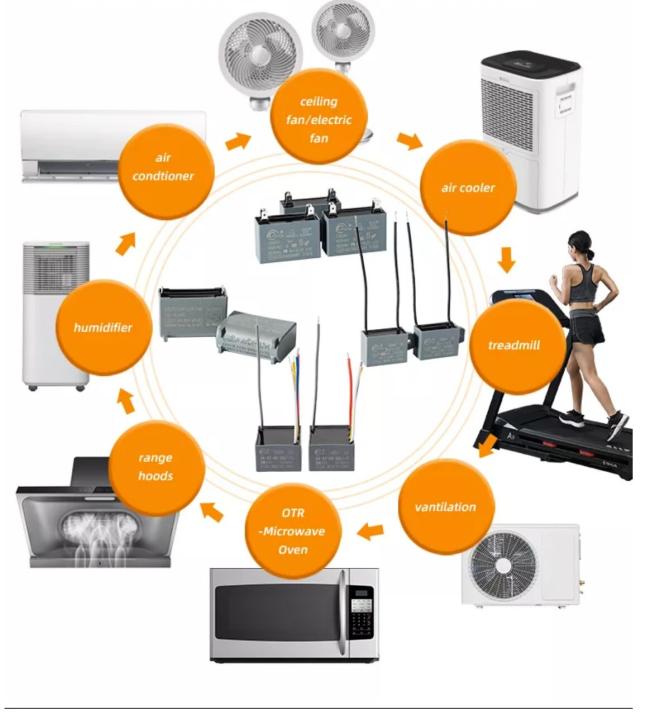

TOPMAY's CBB61 Capacitors could be widely used in diffierent fields.
Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
