Cylindrical Axial Type Polypropylene Film Capacitor MKP Filter 0.15uF 800VDC
Cylindrical Axial Type Polypropylene Film Capacitor MKP Filter Capacitor 0.15uF 800VDC
General Features
Products Name: Metallized Polypropylene Film Capacitors
Product Type: Cylindrical axial type, screw nut terminal
Product specification: CBB37 800V 0.15uF Φ34×58
Techinical Requirements
| Operating Temperature Range | -40℃～+85℃ |
| Storage Temperature Range | -40℃～+85℃ |
| Rated Capacitance | 4.7μF±5% |
| Rated Voltage | 800VDC |
| Withstand voltage between terminals UTT | 1000VDC(10s) |
| Pressure resistance between terminal and housing UTC | 3000VAC·50Hz 10s 20℃ |
| Loss Tangent tanδ (1KHz) | ≤0.0015 |
| Maximum Ripple Current | 70A at 25℃ |
| Series Resistance( RS) | ≤4.0mΩ |
| dv/dt | 80 V/μ S |
| Insulation Resistance | ≥5000 MΩ ·μF |
| Self-Inductance | ≤30nH |
| Overvoltage | 1.1 UR(30% of that with load time) |
| 1.15 UR(30min/day) | |
| 1.2 UR(5min/day) | |
| 1.3 UR(1min/day) | |
| 1.5 UR(30ms /time,100ms/day) | |
| Life | 100000hours(UR,Θ hotspot=70℃) |
| Failure rate | <100FIT |
| Other specifications | see IEC61071 |

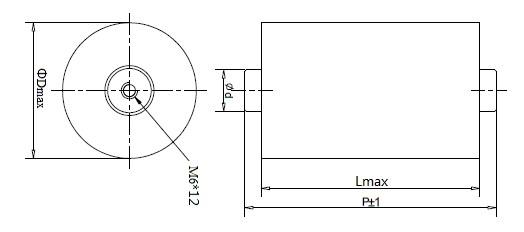

Outdrawing & Dimension(mm)
| Height L Max | 46mm |
| Diameter Φ Dmax | 28mm |
| Pitch P | 58(±1) mm |
| Terminal diameter d | Φ 16 mm |
| Screw nut | M6*10 mm |
| Terminal mounting maximum torque | 3 Nm |

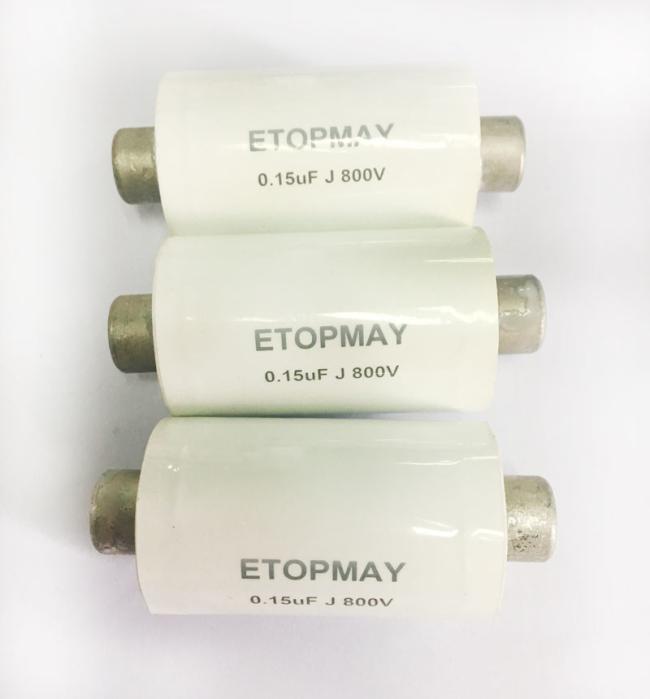

Product Photos
